Ensure that you have the following parts and tools available:
• An ESD wrist strap
• 2.5 mm at-blade screwdriver
To connect the alarm relay wires between a switch and an alarm-reporng device (see Figure 89 on page
273):
1. Prepare the required length of replacement wire with gauge between 28 AWG (0.08 mm
2
) and
14 AWG (2.08 mm
2
).
2. Insert the replacement wires into the slots in the front of the block. Use the screwdriver to ghten
the screws and secure the wire.
3. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end
of the strap to the ESD point on the switch.
4. Plug the terminal block into the relay contact, and use the screwdriver to ghten the screws on the
face of the block.
5. Aîš‚ach the other end of the wires to the external device.

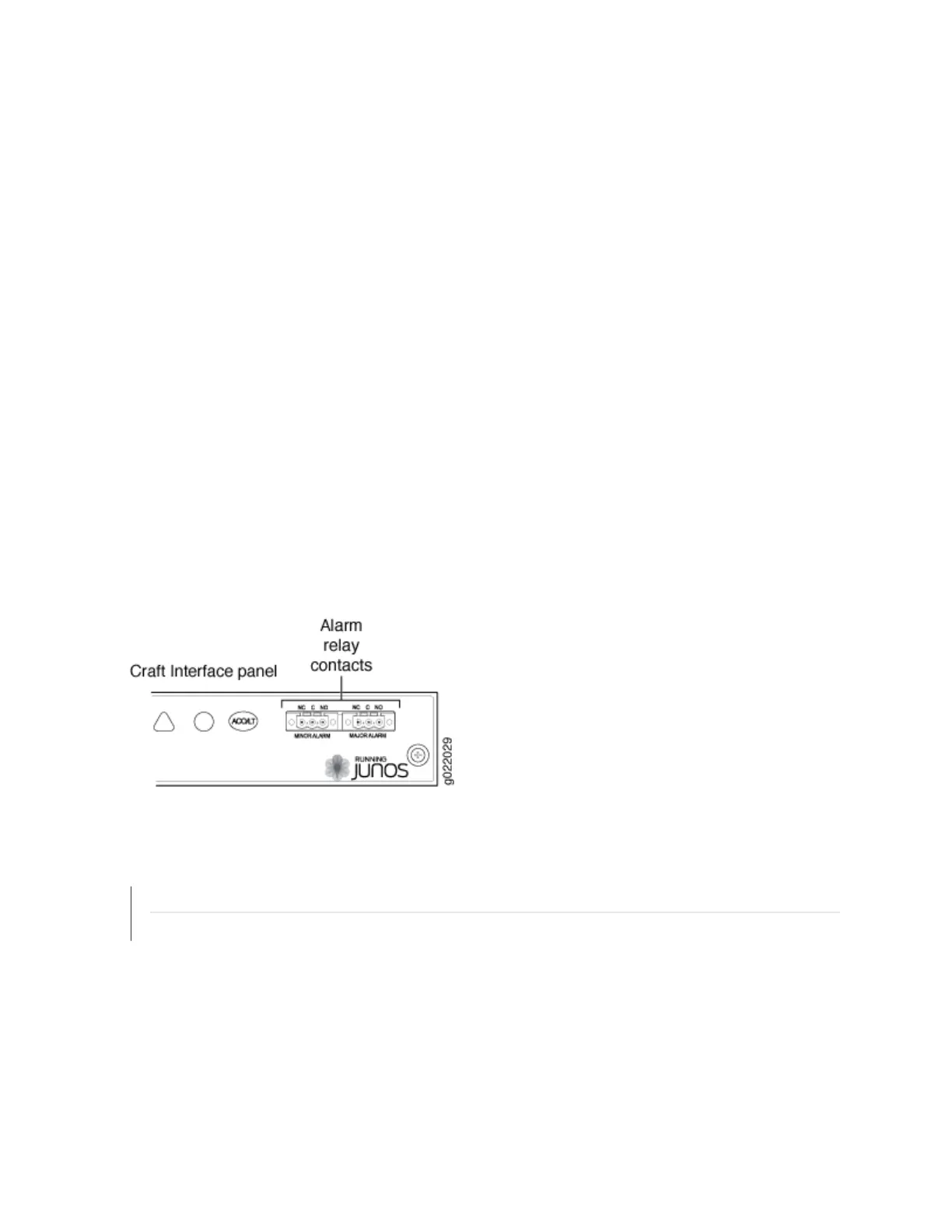

Figure 89: Alarm Relay Contacts
SEE ALSO
Connecng the EX9200 Switch to an External Alarm-Reporng Device
Craî™› Interface in an EX9200 Switch | 29
