Juniper EX9214 Hardware Guide

See Figure 26 on page 85

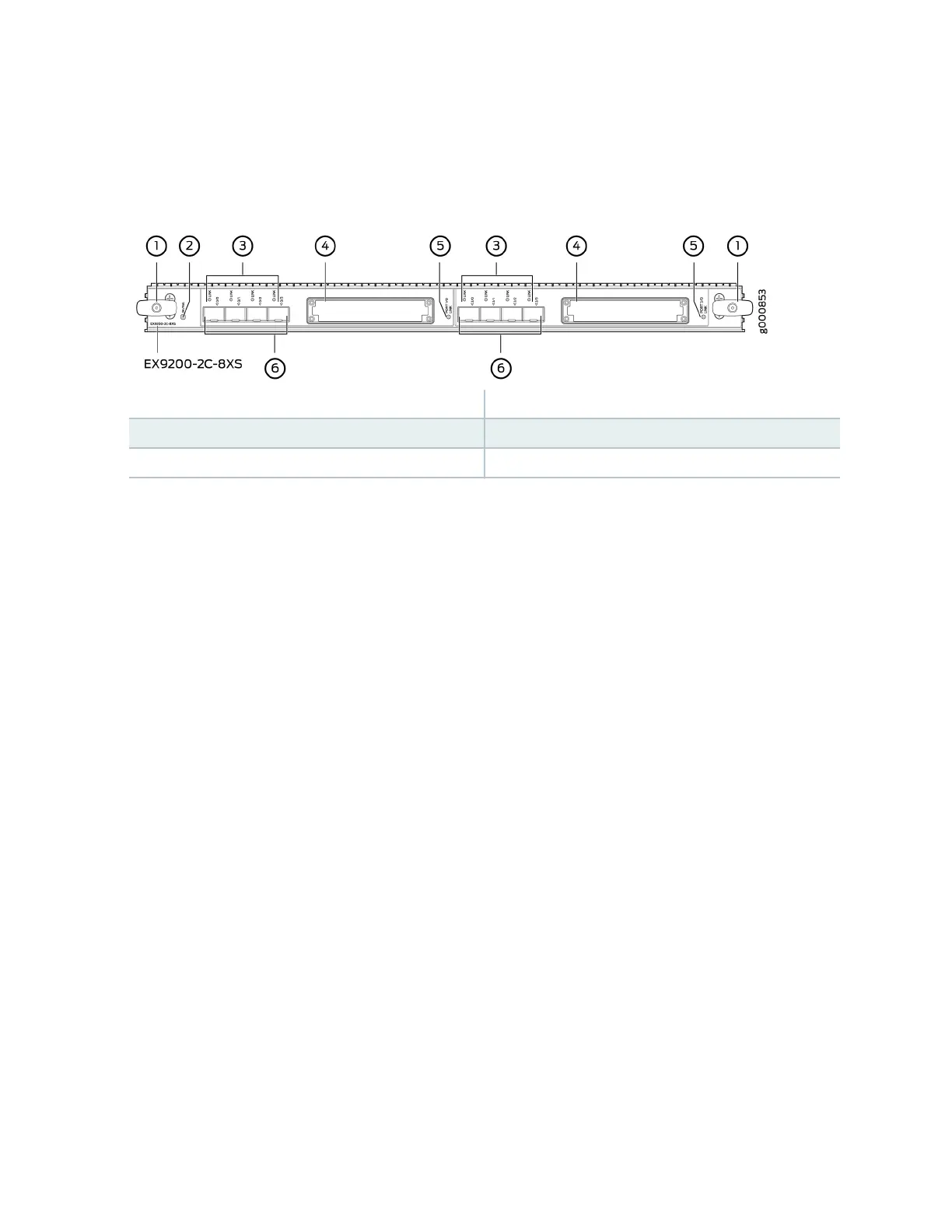

Figure 26: EX9200-2C-8XS Line Card
1—
Ejector levers
4—
100-Gigabit Ethernet ports
2—
Line card LED
5—
LEDs for the 100-Gigabit Ethernet ports
3—
LEDs for the 10-Gigabit Ethernet ports
6—
10-Gigabit Ethernet ports
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The EX9200-2C-8XS line card has:
• Two 100-Gigabit Ethernet ports, each of which can house CFP transceivers. These ports support
100GBASE-LR4 and 100GBASE-SR10 transceivers.
• Eight 10-Gigabit Ethernet ports, each of which can house SFP+ transceivers. These ports support
10GBASE-SR, 10GBASE-LR, 10GBASE-ER, and 10GBASE-ZR transceivers.
• Two dust covers for the two 100-Gigabit Ethernet ports and eight dust covers for the eight 10-
Gigabit Ethernet ports
• Line card LED—An LED labeled OK/FAIL, which indicates the status of the line card. See Line Card
LED in an EX9200 Switch .
• LEDs for the ports—One LED on each port, the Link/Acvity LED, which indicates the link status and
acvity on the port. See Network Port LEDs on Line Cards in an EX9200 Switch .
The ports are divided into two port groups. The four 10-Gigabit Ethernet ports labeled 0/0 through 0/3
and the 100-Gigabit Ethernet port labeled 1/0 form one port group. The four 10-Gigabit Ethernet ports
labeled 2/0 through 2/3 and the 100-Gigabit Ethernet port labeled 3/0 form the other port group. The
ports in each group share 130 gigabits of bandwidth. Thus, you can transmit up to 130 gigabits of trac
through a port group, without packet drop.
85
