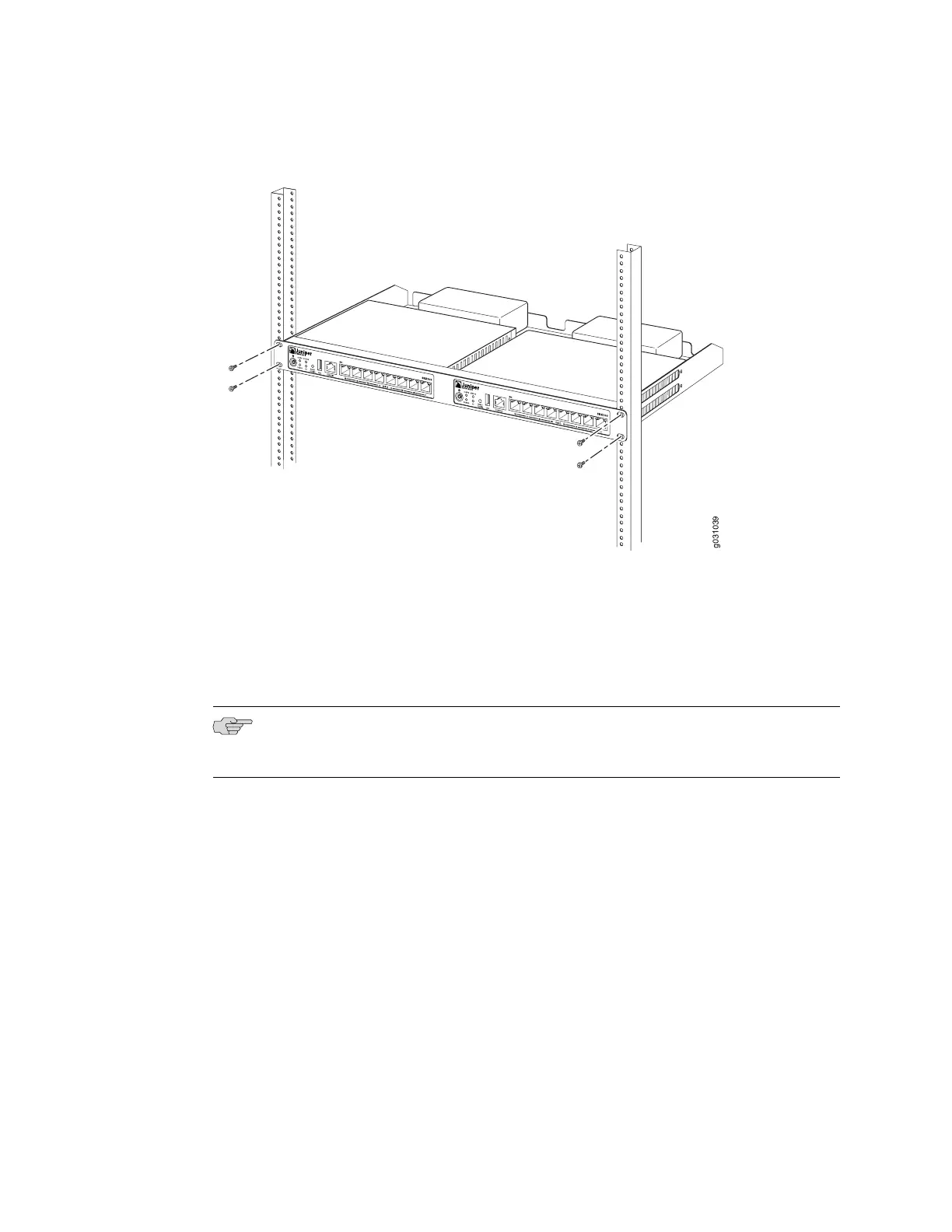

Figure 7: Hanging the SRX100 Services Gateway in a Rack
5. Have a second person install a mounting screw into each of the two aligned
holes.
6. Install the second screw in each side of the rack-mount tray.
7. Verify that the mounting screws on one side of the rack-mount tray are aligned
with the mounting screws on the opposite side and that the tray is level.
NOTE: The rack-mounting kit is not shipped with the device and must be ordered
separately.
Related Topics ■ Required Tools and Parts for Installing and Maintaining the SRX100 Services
Gateway on page 29
■ Preparing the SRX100 Services Gateway for Rack-Mount Installation on page 35
■ SRX100 Services Gateway Rack Requirements on page 21
■ Clearance Requirements for Airflow and Hardware Maintenance of the SRX100
Services Gateway on page 22
■ SRX100 Services Gateway Safety Requirements, Warnings, and Guidelines on
page 39
■ Installing the SRX100 Services Gateway on a Desk on page 42
■ Installing the SRX100 Services Gateway on a Wall on page 43
Installing the SRX100 Services Gateway in a Rack ■ 41
