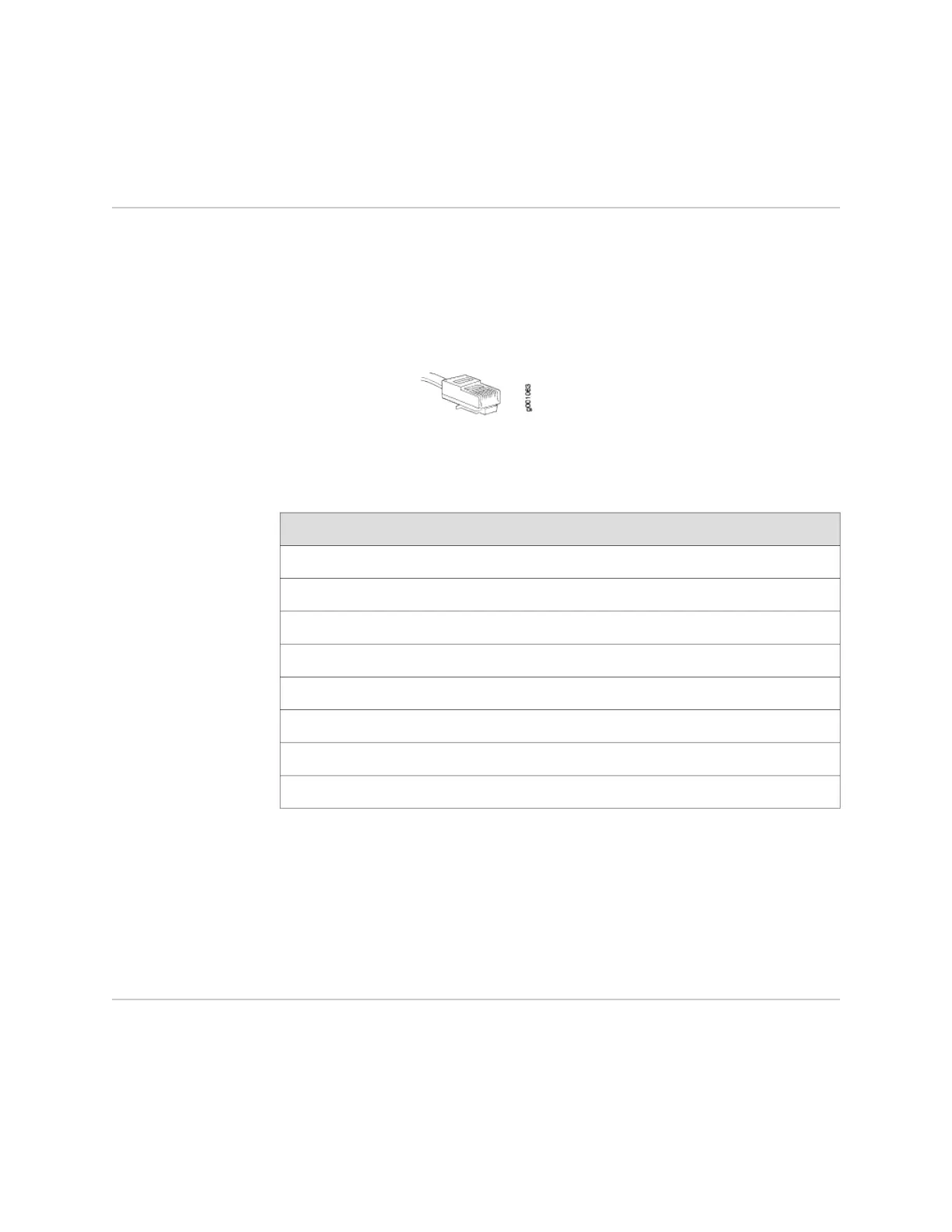

RJ-45 Connector Pinouts for the SRX100 Services Gateway Ethernet Port
The Ethernet ports on the front panel are autosensing 10/100-Mbps Ethernet RJ-45
receptacle that accepts an Ethernet cable for connecting the services gateway to a
management LAN (or other device that supports out-of-band management).
Figure 17 on page 120 shows the RJ-45 cable connector.
Figure 17: Ethernet Cable Connector (RJ-45)
Table 35 on page 120 describes the RJ-45 connector pinouts for the Ethernet port.
Table 35: RJ-45 Connector Pinouts for the Services Gateway Ethernet Port
SignalPin
TX+1
TX 2
RX+3
Termination network4
Termination network5
RXD6
Termination network7
Termination network8
Related Topics Interface Cable and Wire Specifications for the SRX100 Services Gateway on
page 119
RJ-45 Connector Pinouts for the SRX100 Services Gateway Console Port on page
120
RJ-45 Connector Pinouts for the SRX100 Services Gateway Console Port
The port on the front panel labeled console is an autosensing 10/100-Mbps Ethernet
RJ-45 receptacle that accepts an RJ-45 cable for connecting the services gateway to
a management LAN (or other device that supports out-of-band management).
Figure 18 on page 121 shows the RJ-45 connector pinouts for the console port
120 RJ-45 Connector Pinouts for the SRX100 Services Gateway Ethernet Port
SRX100 Services Gateway Hardware Guide
