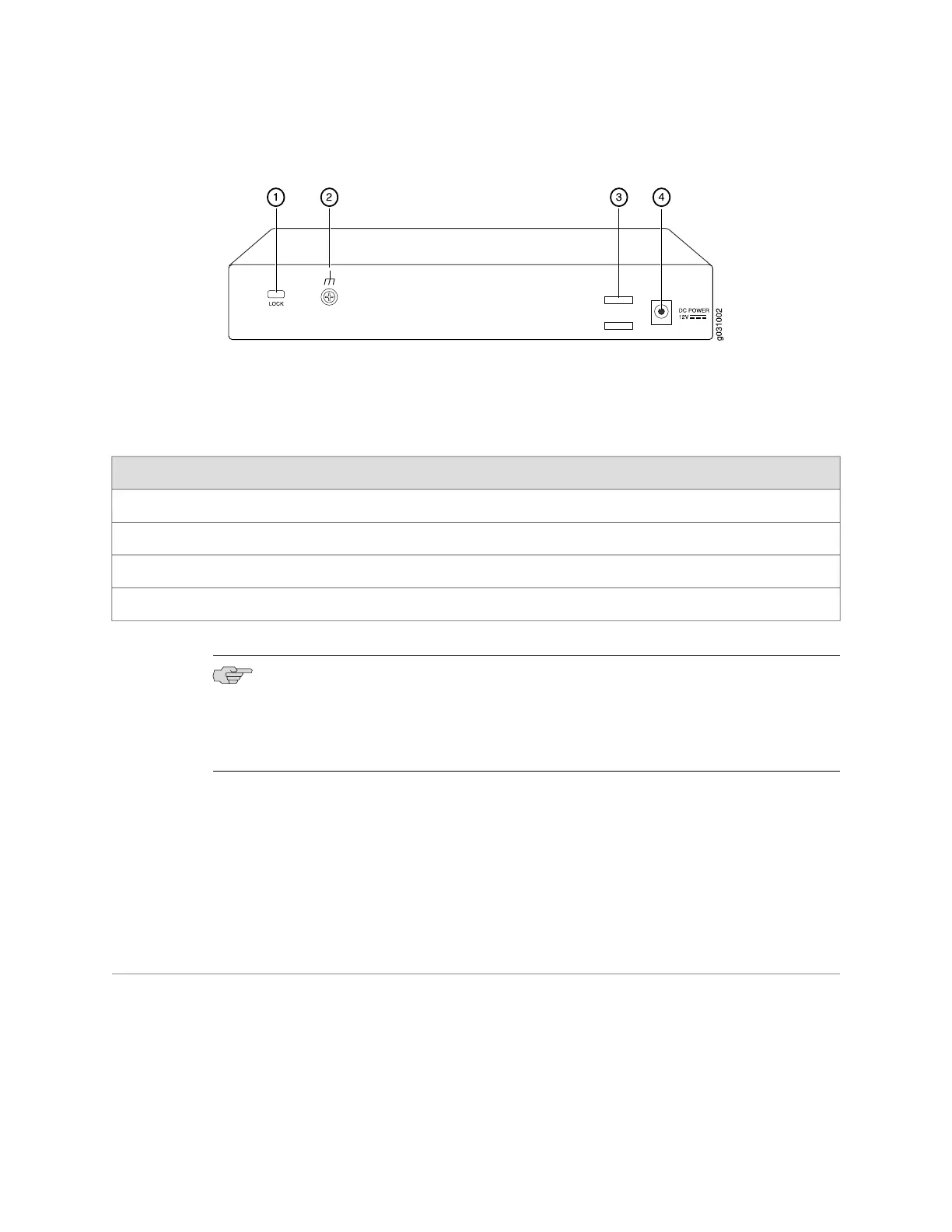

Figure 3: SRX100 Services Gateway Back Panel
Table 6 on page 8 lists the components available on the back panel of the SRX100
Services Gateway.
Table 6: SRX100 Services Gateway Back Panel
ComponentNumber
Lock1
Grounding point2
Cable tie holder3
Power supply point4
NOTE: The cable tie holder provides support for holding the power cord on the power
supply point.
The lock provides the option to lock and secure the device to the installation site.
Related Topics ■ SRX100 Services Gateway Specifications on page 5
■ SRX100 Services Gateway Built-In Interfaces on page 8
■ SRX100 Services Gateway LEDs on page 10
■ SRX100 Services Gateway Boot Devices on page 13
■ SRX100 Services Gateway Power Supply on page 13
SRX100 Services Gateway Built-In Interfaces
Table 7 on page 9 summarizes the interface ports supported on the SRX100 Services
Gateway.
