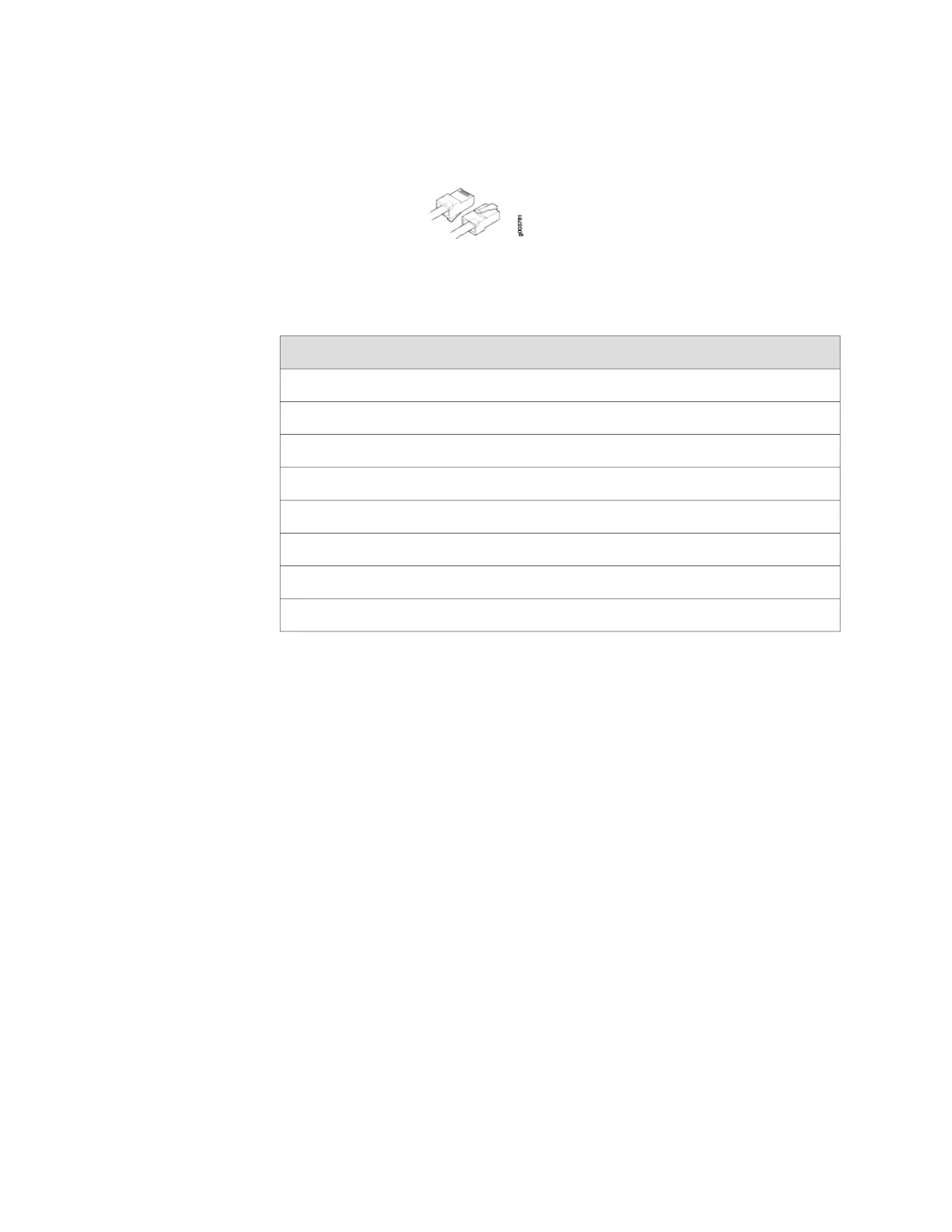

Figure 18: Console Cable Connector
Table 36 on page 121 describes the RJ-45 connector pinouts for the console port.
Table 36: RJ-45 Connector Pinouts for Services Gateway Console Port
DescriptionSignalPin
Request to SendRTS1
Data Terminal ReadyDTR2
Transmit DataTXD3
Signal GroundGround4
Signal GroundGround5
Receive DataRXD6
Data Set ReadyDSR/DCD7
Clear to SendCTS8
Related Topics Interface Cable and Wire Specifications for the SRX100 Services Gateway on
page 119
RJ-45 Connector Pinouts for the SRX100 Services Gateway Ethernet Port on page
120
RJ-45 Connector Pinouts for the SRX100 Services Gateway Console Port 121
