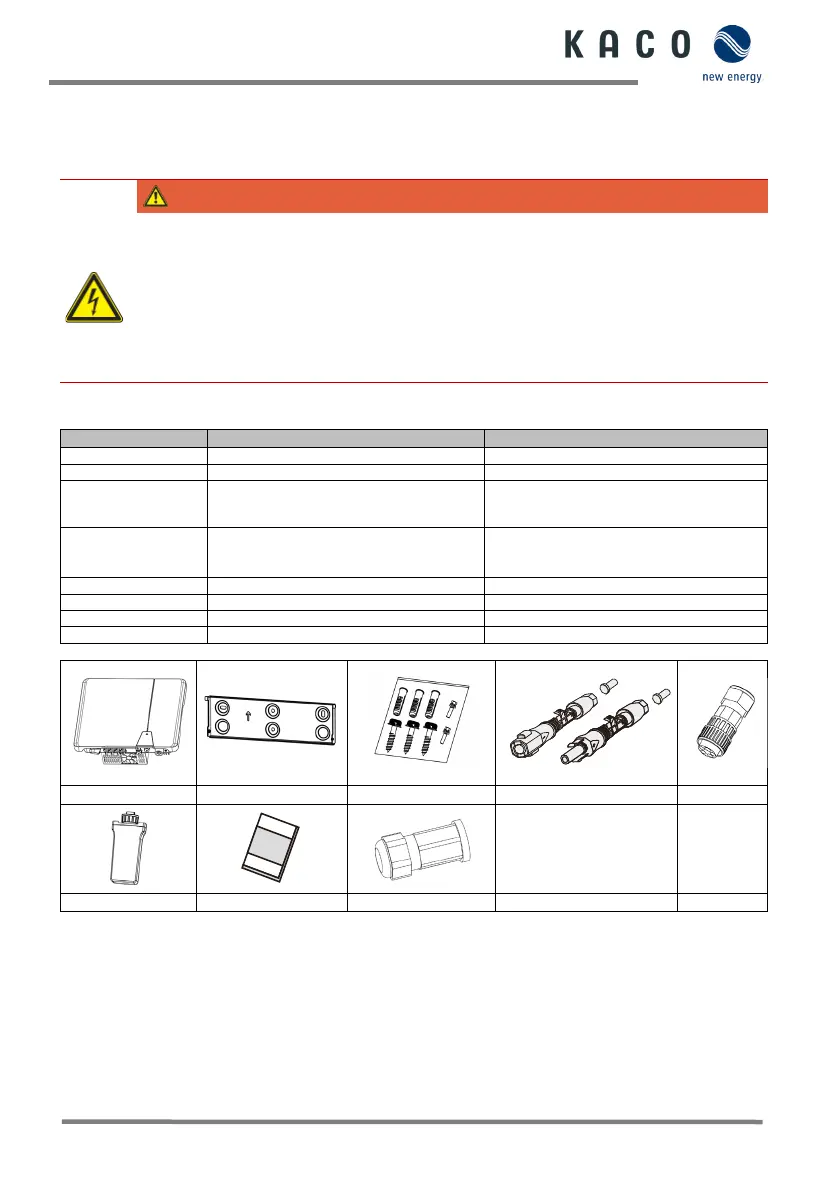

Page 4 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
1 Installation
1.1 Safety
Before using the product for the first time, please read through the safety instructions carefully.
DANGER
Lethal voltages are still present in the connections and cables of the device even after the device has
been switched off and disconnected!
Coming into contact with the lines and/or terminals/busbars in the device can cause serious injury or death.
Do not open the product.
The device must be mounted in a fixed position before being connected electrically.
Comply with all safety regulations and current technical connection specifications of the responsible
power supply company.
The device is only permitted to be mounted, installed and commissioned by a qualified electrician.
Switch off the grid voltage by turning off the external circuit breakers.
Check that all AC and DC cables are completely free of current using a clip-on ammeter.
Do not touch the cables and/or terminals/busbars when switching the device on and off.
1.2 Scope of delivery
Article
Description
Quantity
A
Inverter
1 piece
B
Mounting plate
1 piece
C
Mounting accessory kit:
Wall fixings and hex bolts (3×)
M5×14 mm screw (2×)
1 set
D Insert the DC connector (Sunclix)
3–10KW
2 pairs
15KW3 pairs
20 kW
4 pairs
E
AC connector
1 piece
F
WLAN
1 piece
G
Documentation
1 set
H
Threaded sleeve for RS485 connection
2 pcs
B
C
D
E
G
H

1. Inspect the device thoroughly.
2. Immediately notify the shipping company in case of the following:
- Damage to the packaging that indicates that the device may have been damaged.
- Obvious damage to the device.
3. Send a damage report to the shipping company immediately.
4. The damage report must be received by the shipping company in writing within six days following receipt
of the device. We will be glad to help you if necessary.
