Page 6 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
1.4 Mounting the wall bracket
CAUTION
Hazard when using unsuitable fixing materials!
If unsuitable fixing materials are used, the device could fall and persons under the device may be seriously
injured.
› Use only fixing materials that are suitable for the mounting base. The fastening materials supplied are
only suitable for masonry and concrete.
› Only install the device in an upright position.
NOTE
Power reduction due to heat accumulation!
If the recommended minimum clearances are not observed, the device may go into power regulation
mode due to insufficient ventilation and the resulting heat build-up.
› Observe minimum clearances and provide for sufficient heat dissipation.
› All objects on the device housing must be removed during operation.
› Ensure that no foreign bodies prevent heat dissipation following device installation.

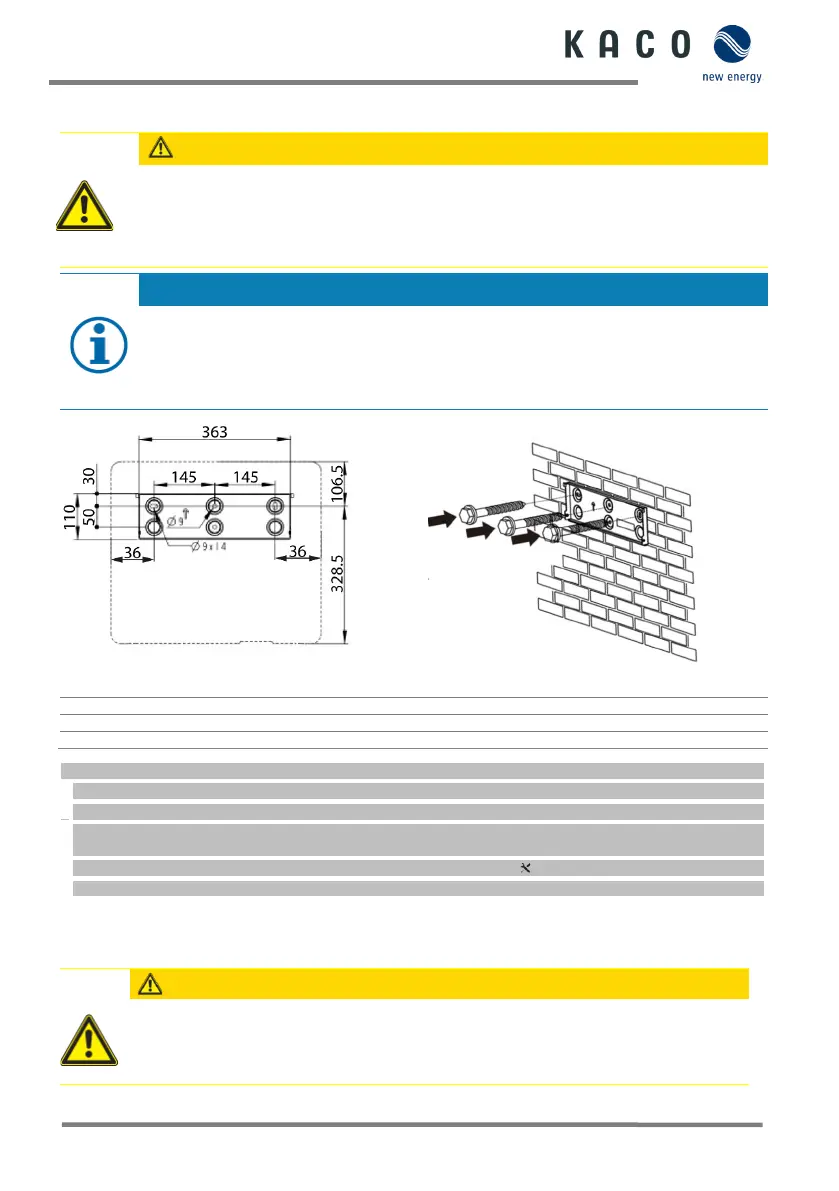

Fig. 4: Drilling holes for wall mounting
Fig. 5: Mounting the wall bracket
1 Drill three holes [Ø 10mm depth 70mm]
3 Installing the wall holder
2 Insert screws and anchors
Cardboard packaging with mount and mounting kit removed from the packaging and opened.
1 Mark the mounting position on the wall surface according to the position of the mount plate by drawing three marks.
2 Mark the positions of the drill holes and drill three holes.
account in the diagram Fig. 3.1.
3 Fix the mount to the wall using suitable mounting fixtures from the mounting kit [ W-10].
» Proceed with the installation of the device.
1.5 Installing the device
CAUTION
If the device is lifted improperly, it can tilt and result in a fall.
› Always lift the device vertically using the grip recesses provided.
› Use a climbing aid for the chosen installation height.
› Wear protective gloves and safety shoes when lifting and lowering the device.
