7.10.12 Wear sleeve and thrust washer

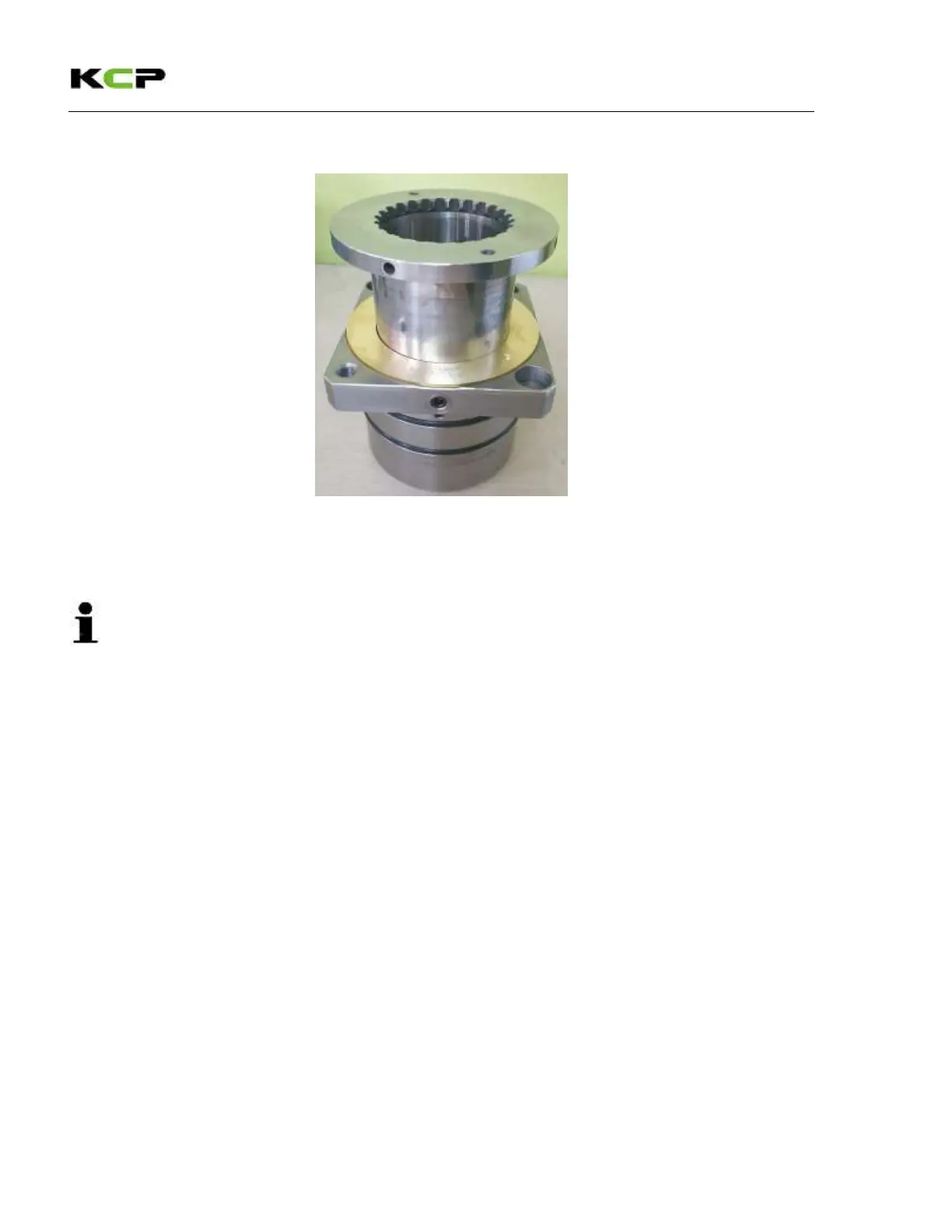

► Place the thrust washer on the flanged seal housing.

► Insert the wear sleeve in the flanged seal housing.

Note ___________________________________________________________________

Note the location of the lubrication bores when fitting the flanged seal housing.

_______________________________________________________________________

► Grease the inside of the wear sleeve with “Anti-Seize AS 450 Assembly Paste” or

the equivalent assembly grease.

► Locate the complete flanged seal housing on the s tube shaft and bolt it tight.
