KCP 113 - Cable Remote Control

KCP Heavy Industries Co., Ltd. General technical description
3-6
3.4.2 Cable remote control

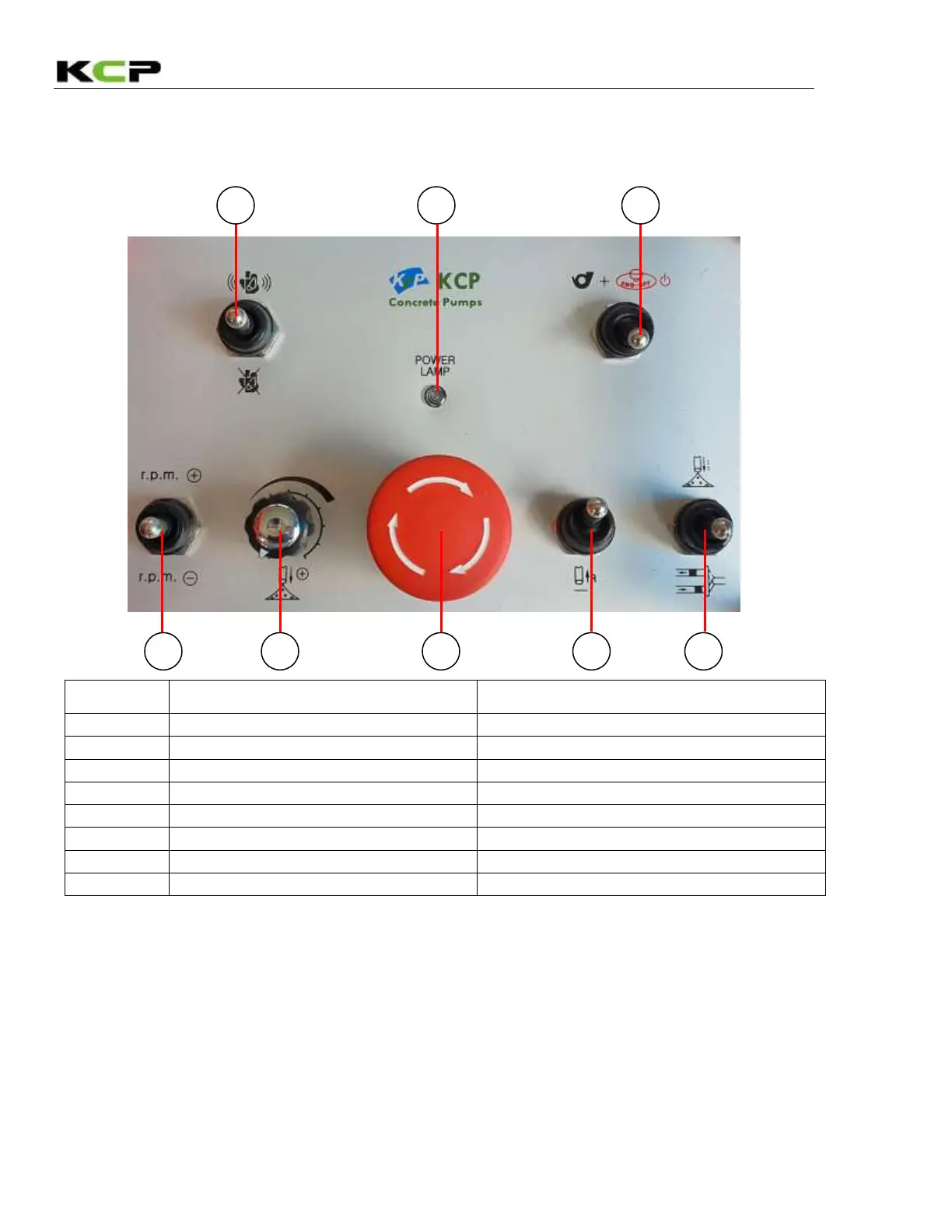

The standard cable remote control for this machine is illustrated below.
No
Operating/control element
Meaning / Function
1
Toggle switch
ENGINE OF/OFF (OPTION)
2
Lamp
POWER LAMP
3
Toggle switch
HORN
4
Toggle switch
R.P.M +/- (OPTION)
5
Rotary switch
OUTPUT INCREASE/ DECREASE
6
Button switch
ENGINE STOP
7
Toggle switch
BACK PUMPING
8
Toggle switch
PUMPING
1
2
8
7
6
1
5
4
3
