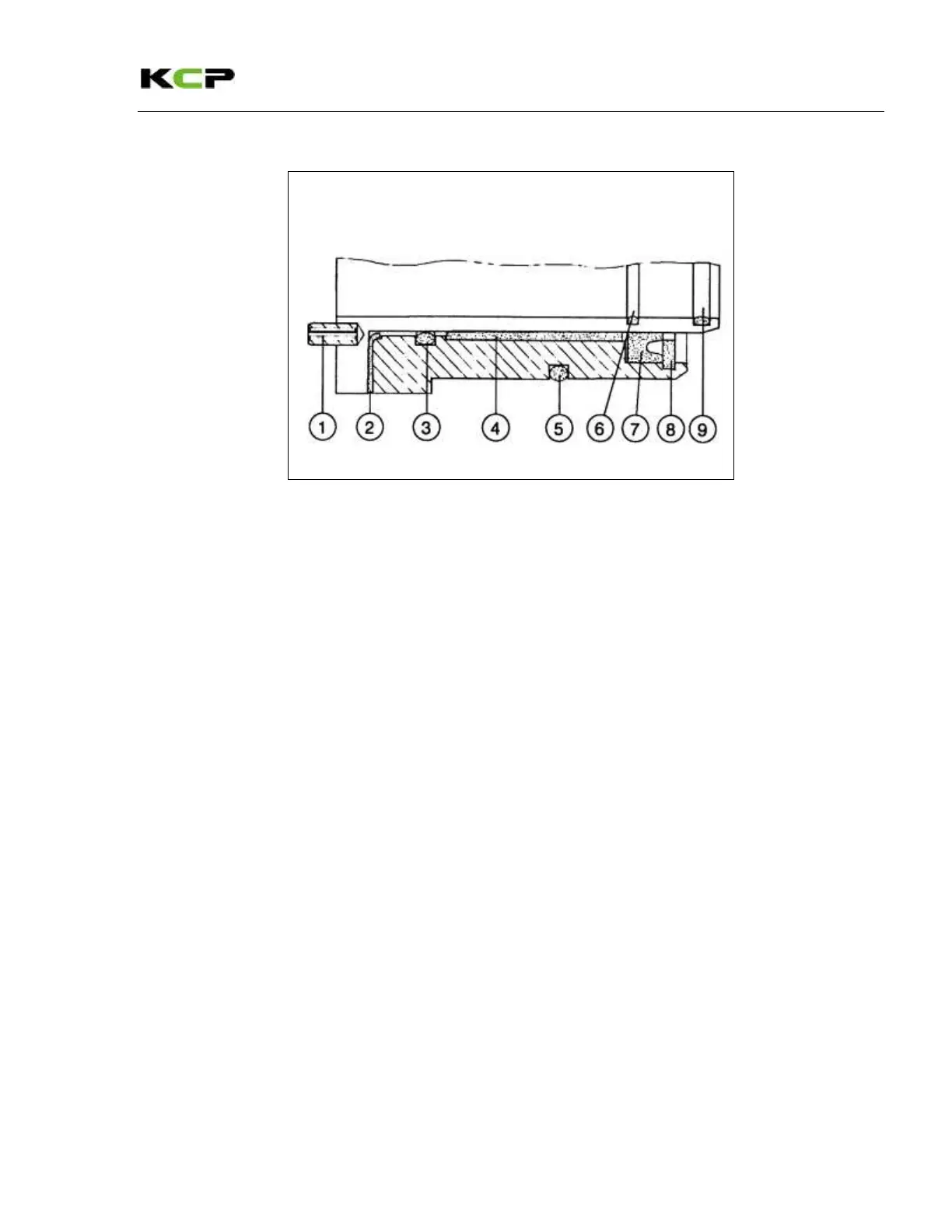

7.10.3 Installation summary
1 Rolled pin
2 Trust washer
3 O-ring
4 Du-bushing
5 O-ring
6 O-ring
7 Grooved ring
8 Retaining ring
9 O-ring
► Check the Du-bushing (4) for wear and replace if necessary.
► Grease and fit the new seal set.
