6.1.4 Grease pump’s operating time setting

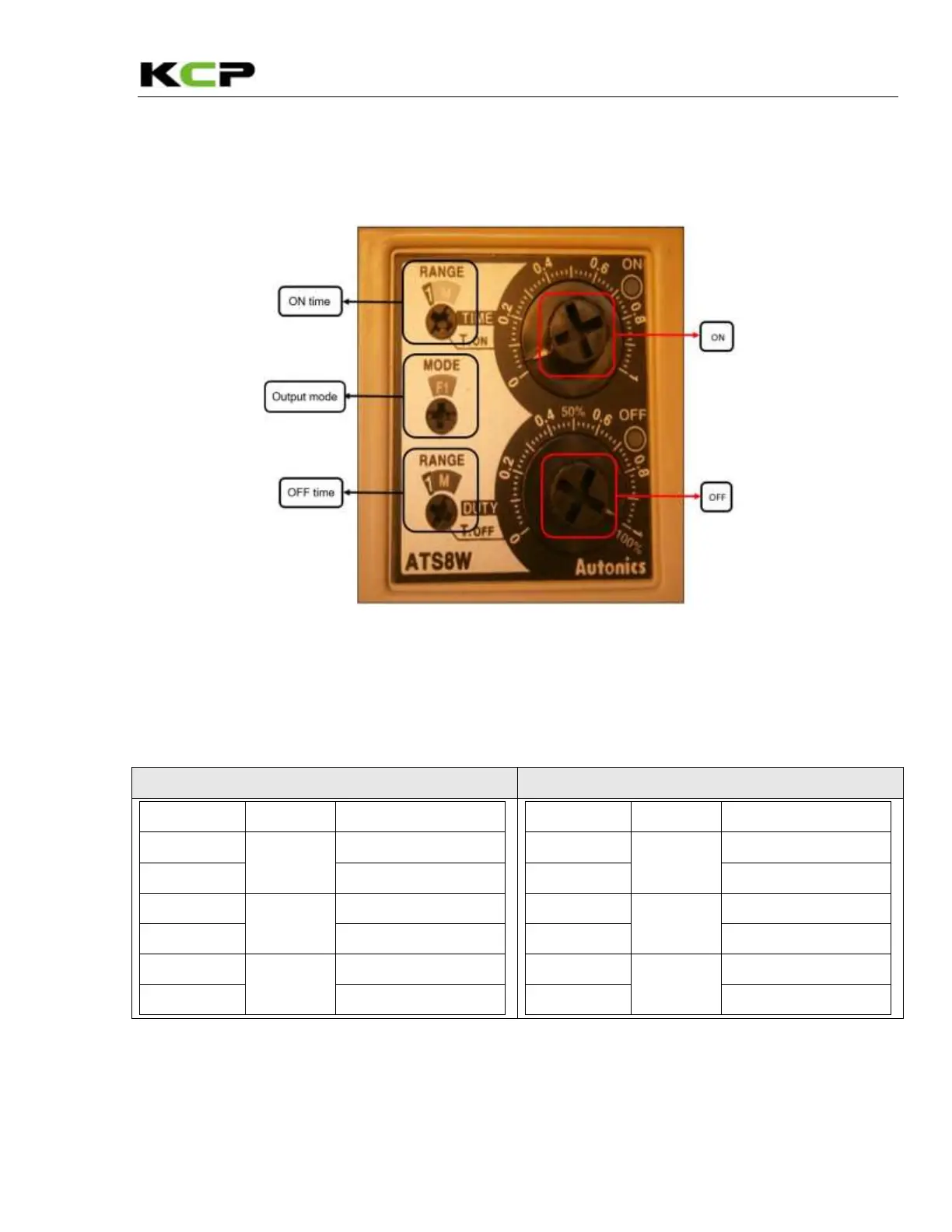

(1) Grease pump runs during pumping-ON only.
▶ Air grease pump & 24V electric type of grease pump(without internal timer).
① Set output mode to N1 always.
② By changing the time range, set the unit of time.
Scale * time range engaged = timer’s running time.
③ When OFF is set at 0, it is continually running.
④ Initial setting is that about 1-min running and 4-min not running.
0~3 of range, timer setting
0~1 of range, timer setting
Time range
Time unit
Setting time range
1S
sec
0.3~3 sec
10S
3~30 sec
1M
min
0.3~3 min
10M
3~30 min
1H
hour
0.3~3 hour
10H
3~30 hour
Time range
Time unit
Setting time range
1S
sec
0.1~1 sec
10S
1~10 sec
1M
min
0.1~1 min
10M
1~10 min
1H
hour
0.1~1 hour
10H
1~10 hour
▶ 12V electric type of grease pump(with timer built-in).
