7.10.5 S-tube seal housing gasket set

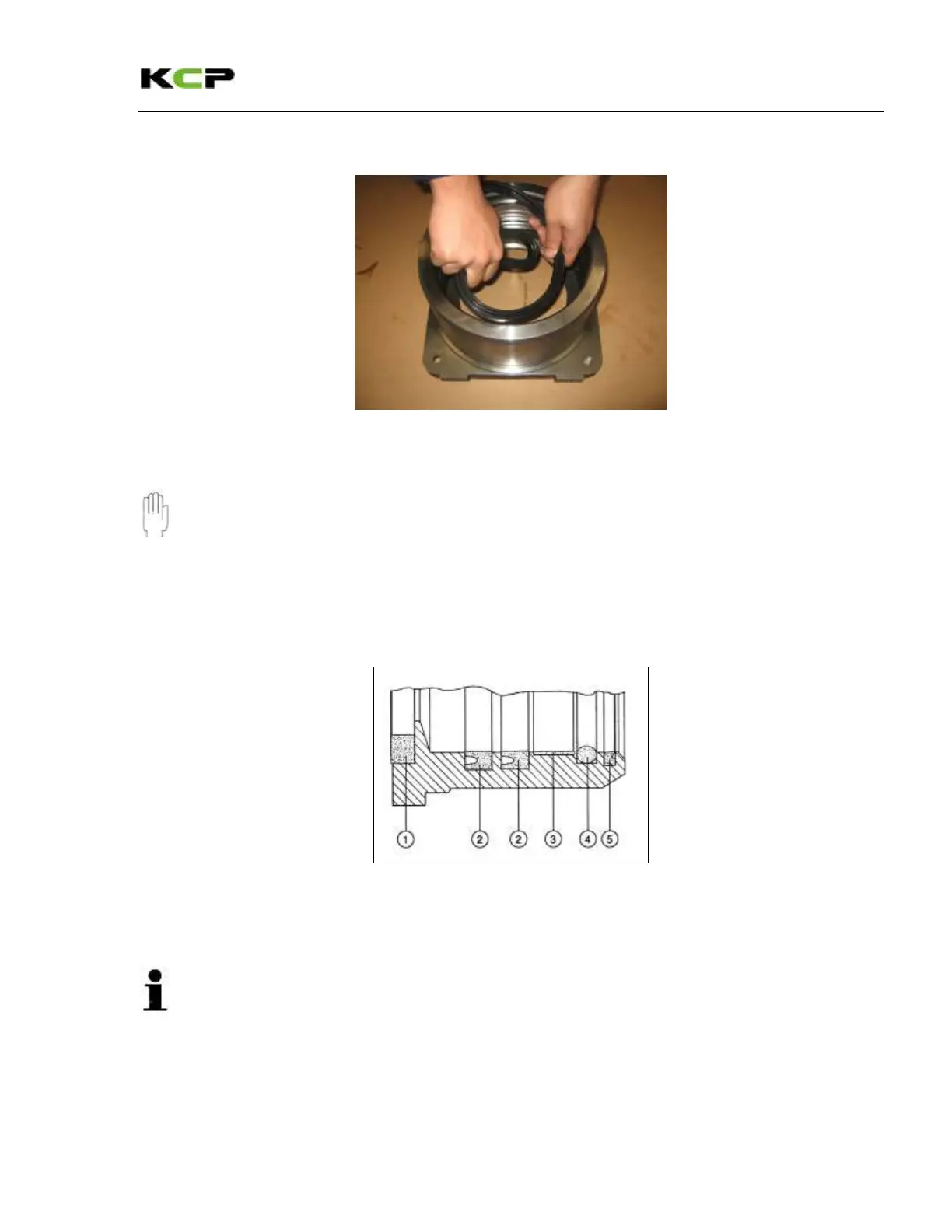

Bend the wear rings to make installation easier.
► Grease the new gasket set and fit it as illustrated.
Caution ________________________________________________________________
Note the mounting position of two grooved rings shown below.
_______________________________________________________________________
7.10.6 Installation summary
1 Rectangular ring
2 U-packing
3 Guide strip
4 O-ring
5 Scrapper ring
Note ___________________________________________________________________
Clean the S-tube seal housing before refitting and greasing the seals. Check the lubricant
bores, in particular, for proper functioning. This is done by connecting the lubrication lines
and forcing lubricant through the bores.
