KCP 113 - Mounting the Swing Lever

KCP Heavy Industries Co., Ltd. Maintenance
7-31
Note ___________________________________________________________________

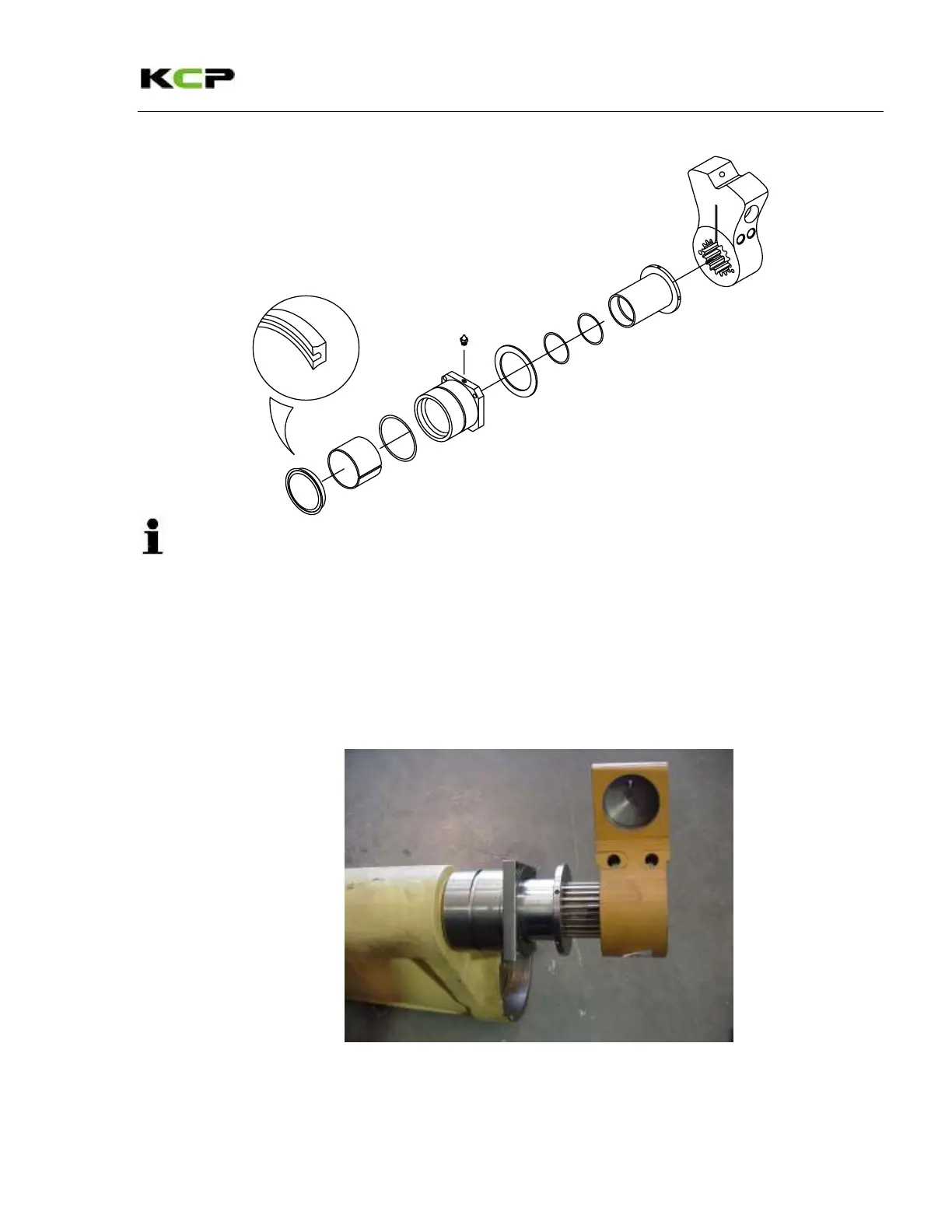

A rolled pin ensures that the wear sleeve rotates with the swing lever. The topmost tooth
of the s tube shaft is slightly flattened and may be used as a marker.
_______________________________________________________________________
7.10.13 Mounting the swing lever
► Insert the rolled pin into the bore in the swing lever.
► Grease the splines on the swing lever and the s tube shaft with “Anti-Seize AS 450
