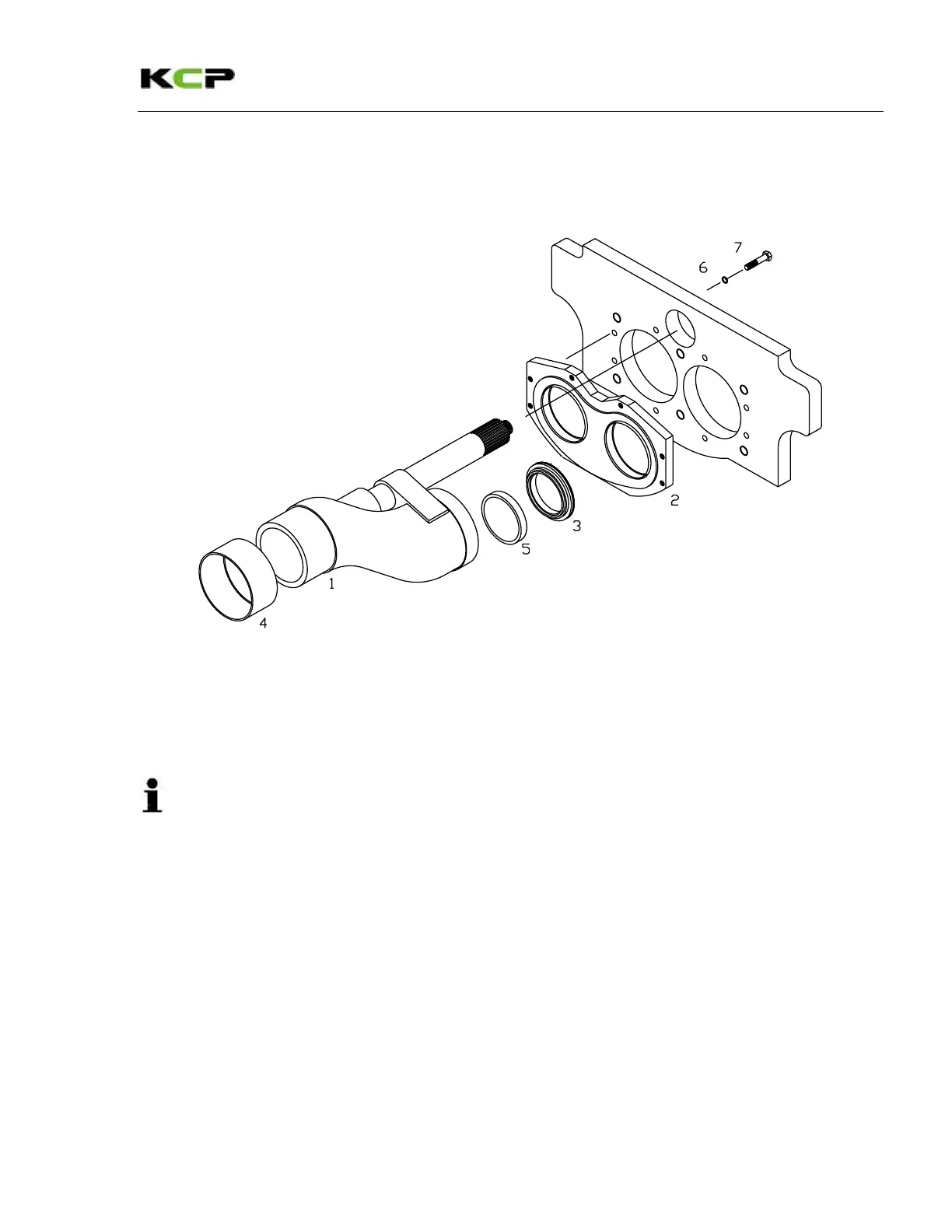

7.10.10 Replacing the wear ring
Replace the wear ring in the event of heavy visible wear, if concrete is leaking or if there is
inadequate pressure build-up in the delivery line.
► Remove the old wear ring and the o-ring.
► Fit a new o-ring and a new wear ring in the S - tube.
7.10.11 Fitting the S tube seal housing
Note ___________________________________________________________________
Pay attention to the location of the lubrication openings when fitting the S tube seal
housing.
_______________________________________________________________________
► Fit the S-tube seal housing on the S - tube outlet and bolt it securely.
