KCP Heavy Industries Co., Ltd. Maintenance
7-15

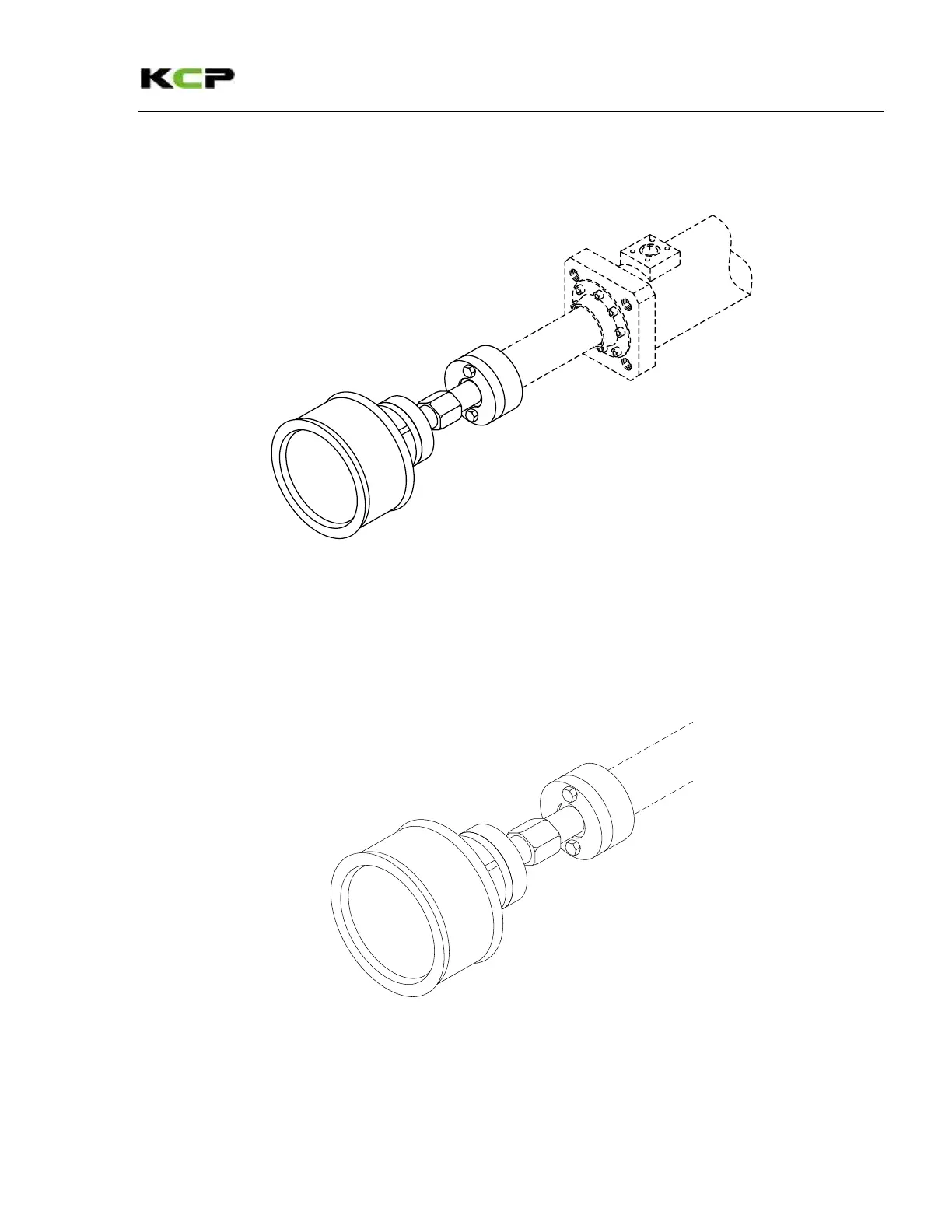

7.8.3 Rubber piston replacement
When replacing the rubber pistons you may work with the remote control on the deck.
► Start the machine up.
► Remove the cover and drain the water from the water box.
► Move the cylinder so that the spacer flange is center in the water box.
► Shut the machine down.
► Remove the four fastening bolts from the spacer flange and remove the flange.
