7.10.7 Removing the wear plate

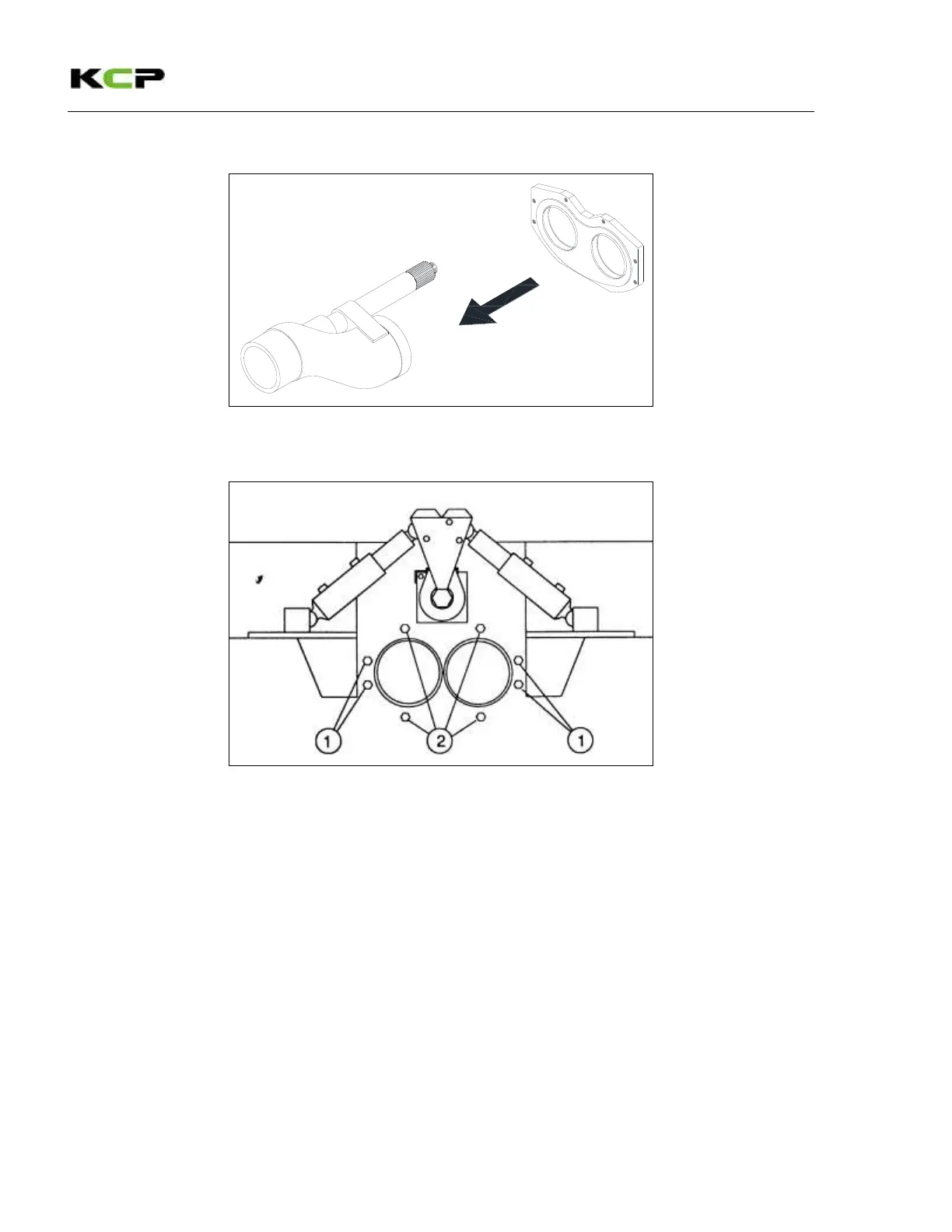

Pushing the S - tube to back
► Push the S - tube away from the wear plate.
1 B fastening bolts
2 A fastening bolts
► Undo the eight fastening bolts and remove the spectacle wear from the transition
liner.
