KCP Heavy Industries Co., Ltd. General technical description
3-4

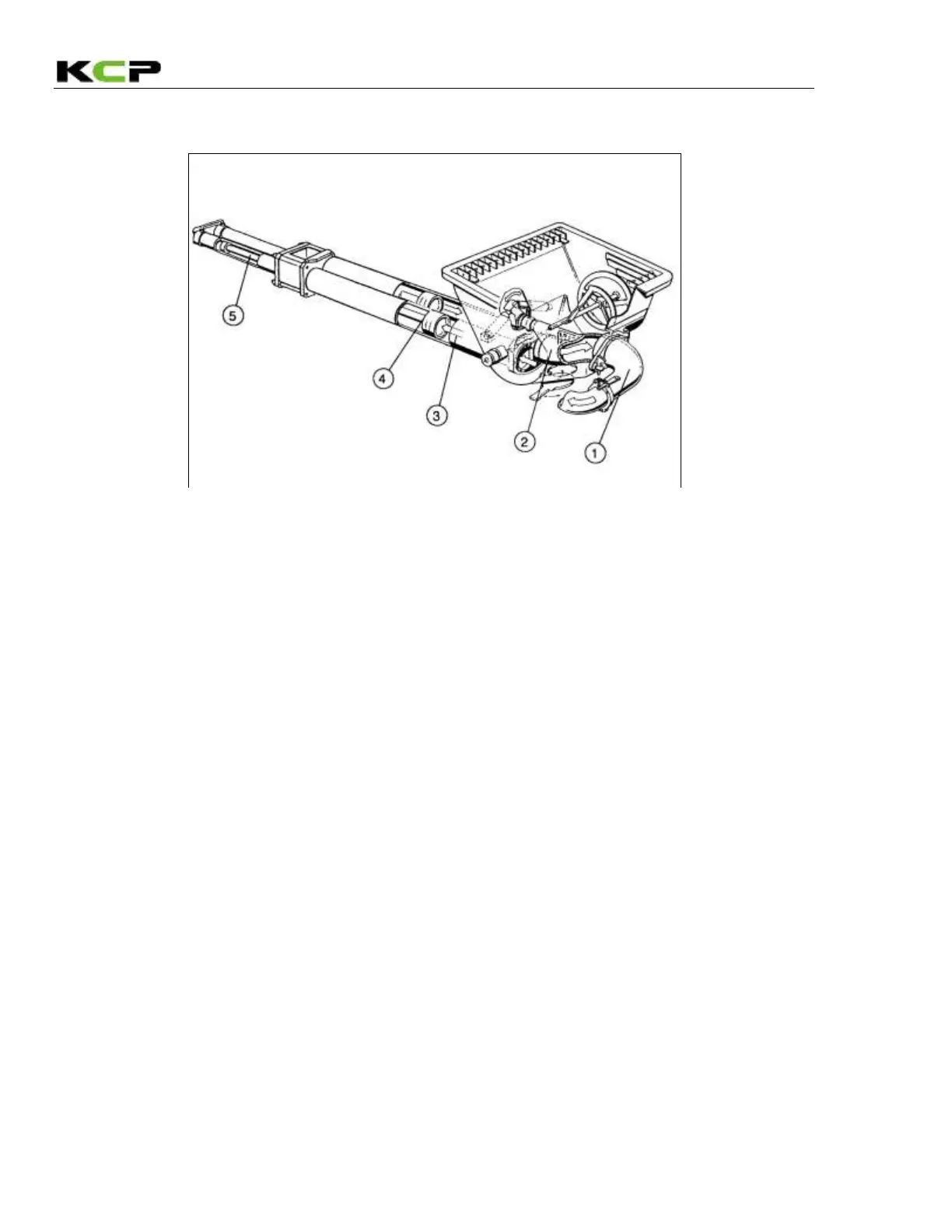

3.3.2 S–tube
1 Transition door
2 S-tube
3 Delivery cylinder
4 Delivery piston
5 Drive cylinder
3.4 Electrical control devices
The electrical control devices and operating elements on this machine are described on the following
pages. The summary at the start of this chapter will show you where the various control devices are
located on the machine. The symbols used on the electrical control devices are described in one of
the preceding sections.
The electrical control devices may include the following components, depending on the equipment
on your machine.
- Control panel
- Centralized lubrication system
- Remote control system
