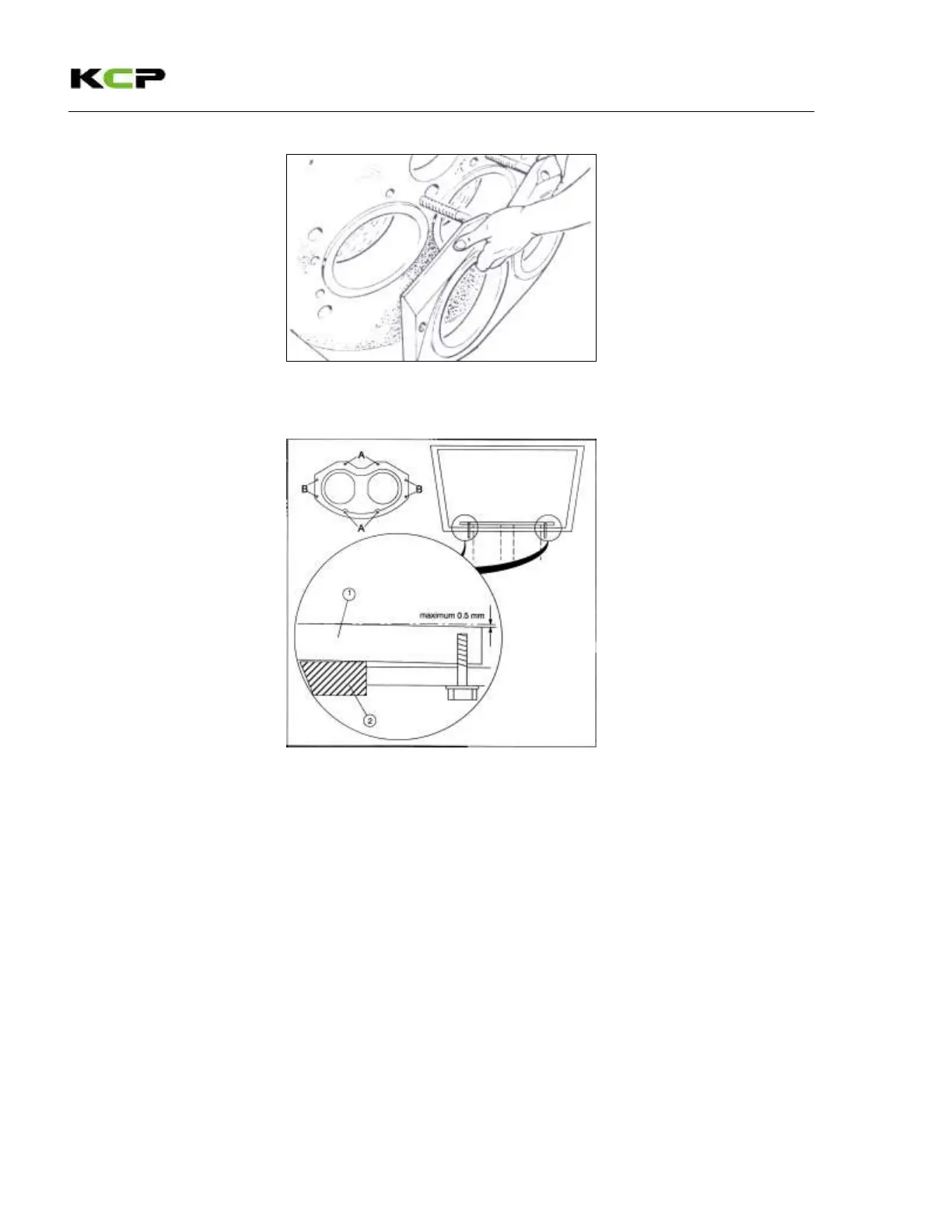

Fitting the wear plate
► Fit the new wear plate.
Maximum distortions of the wear plate: 0.5mm
1 Wear plate
2 Connector ring
► Install the new wear plate and fasten it with the B fastening bolts (outer fastening
bolts). Tighten these only to finger-tightness initially.
► Bolt the wear plate with the A fastening bolts (top and bottom) and tighten these to
a torque specification of 210 Nm.
► Then tighten the B fastening bolts (outer fastening bolts) to a torque specification
of 100Nm. The wear plate may only be distorted by a maximum of 0.5 mm when
the bolts are tightened.
