► If necessary for space reasons, disconnect the hydraulic hoses leading to the
plunger cylinders at the bulkhead unions. Then close off the hydraulic line with
plugs.
Removing the plunger cylinders
Note __________________________________________________________________

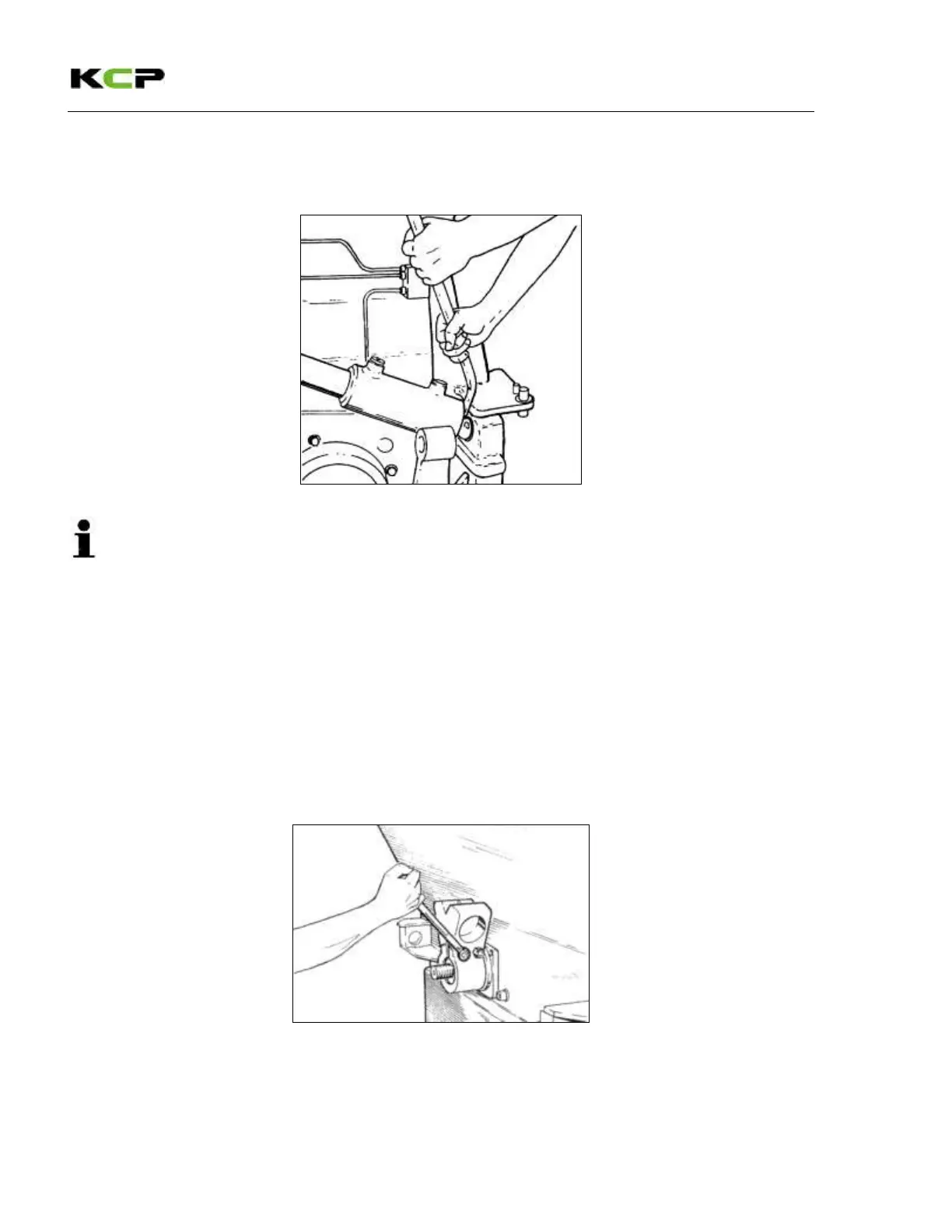

The plunger cylinders (7) can be pushed back as illustrated. It is, however, also possible to
screw a bolt into the jacking bores for the ball cups and to push the plunger cylinders out
with the ball cups.
_______________________________________________________________________________________
► Push back the pistons in the plunger cylinder (7) and remove the plunger cylinders
with the hydraulic hoses.
► Undo the hexagon nuts (3) on the s tube shaft and remove the spacer washer (4).
► Loosen the clamping bolts (6) on the swing lever (5).
Loosen the clamping bolts..
► Spread the swing lever by screwing the jacking bolts supplied into the two bores.
