Operations for Load Mode 59
(2)Load mode
Load mode selected is kept effective when you setup dynamic mode. For example, if CC mode
is selected, then you select dynamic mode, the CC mode is still effective.
But if you change the load mode while dynamic mode is select, the dynamic mode is stopped
and the selected mode is selected. For example, if both CC mode and dynamic mode is
selected, then you select CV mode, the dynamic mode is stopped, and CV mode is selected.
（3） How to select dynamic mode
In the LOAD CONTROL menu, press F3 button.
If CC mode is selected when you select dynamic mode, parameters of CC mode are displayed.

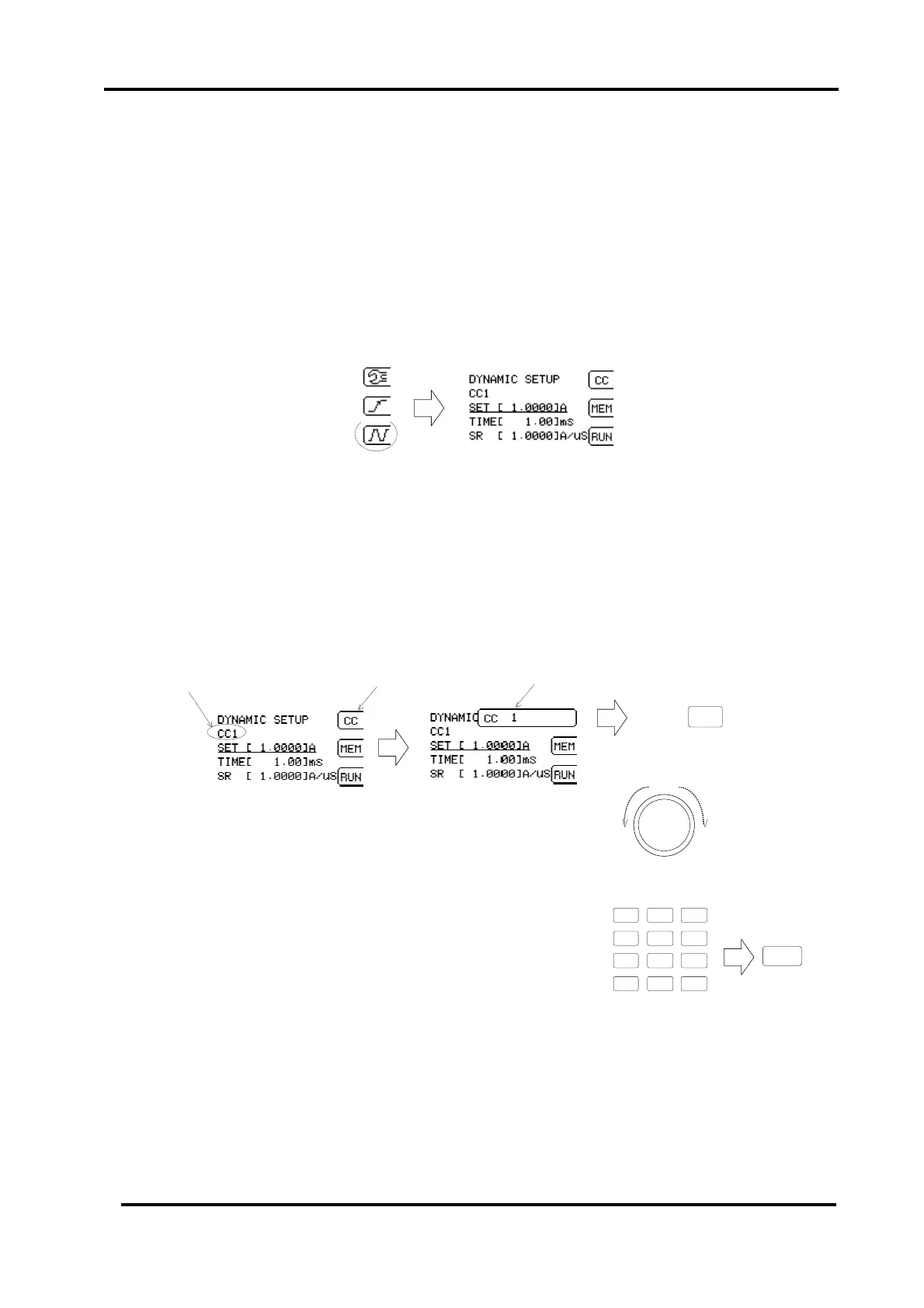

Fig. 5-12-2 Call procedure for Dynamic loading mode
（4） How to switch between CC1 and CC2.
First, setting menu for CC1 is displayed.
Present CC_No is shown in (1) and showing parameters are under editing.
Press F1 key to switch CC_No to (3) CC_No input screen as shown in (2) menu.
Enter numeric value by F1 key or Dial or Numeric key then press ENT key.
(
