Keithley 2016 - Front Panel Summary; Figure 2-1 Model 2016 Front Panel

Front panel summary

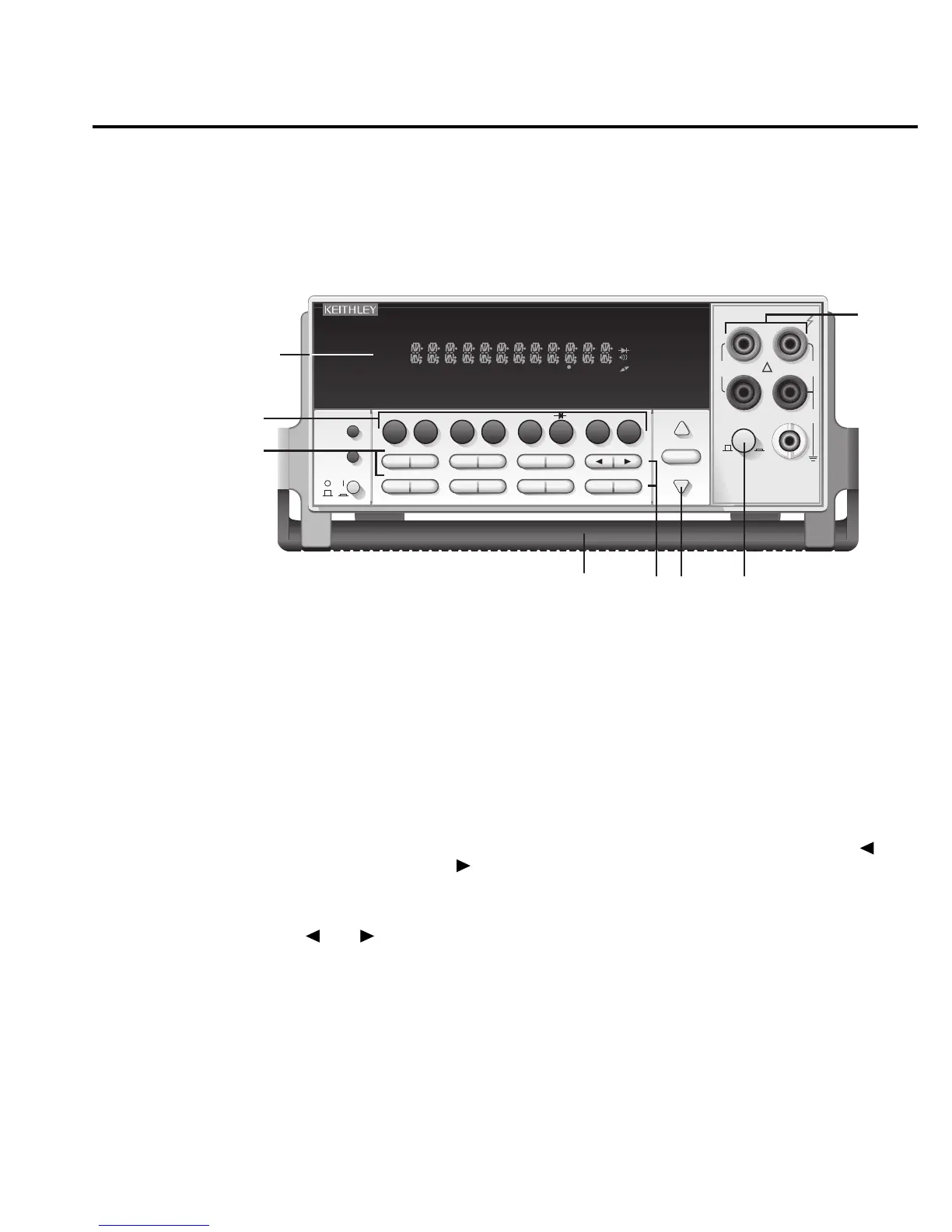

The front panel of the Model 2016 is shown in Figure 2-1. This figure includes important
abbreviated information that should be reviewed before operating the instrument.
1 Function keys (shifted and unshifted)
Select measurement function (DC and AC voltage, DC and AC current, 2-wire and 4-wire
resistance, frequency, period, temperature with thermocouples), math function (mX+b, %,
dBm, dB), THD (total harmonic distortion) or special function (continuity, diode test).
2 Operation keys
EX TRIG Selects external triggers (front panel, bus, trigger link) as the trigger
source.
TRIG Triggers a measurement from the front panel.
STORE Enables reading storage.
RECALL Displays stored readings and buffer statistics (maximum, minimum, aver-
age, standard deviation). Use ▲ and ▼ to scroll through buffer; use
and to toggle between reading number and reading.
FILTER Displays digital filter status for present function and toggles filter on/off.
REL Enables/disables relative reading on present function (not applicable for
distortion measurements).
and Moves through selections within functions and operations. If scanner
card installed, manually scans channels.
THD SOURCE Selects and configures the internal function generator.
THD MEAS Configures distortion measurements.
STEP Steps through channels; sends a trigger after each channel.
SCAN Scans through channels; sends a trigger after last channel.
DIGITS Changes number of digits of resolution.
RATE Changes reading rate: fast, medium, slow.
EXIT Cancels selection, moves back to measurement display.
ENTER Accepts selection, moves to next choice or back to measurement display.
SHIFT Used to access shifted keys.
LOCAL Cancels GPIB remote mode.
RANGE
!
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
INPUTS
350V
PEAK
1000V
PEAK
AUTO
SHIFT
LOCAL
POWER
RANGE
R
SHIFT
CH1REM
TALK
LSTN
SRQ
STAT
REL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
HOLD TRIG FAST MED SLOW AUTO ERR
EXIT ENTER
DIGITS RATE
RELFILTER
TRIG
EX TRIG
STORE RECALL
SOURCE MEAS
DCV
DCI
MATH
THD
dBm
ACV
ACI
FREQ
TEMP
dB
CONT PERIOD TCOUPL
LIMITS ON/OFFDELAY
HOLD
SAVE SETUP
CONFIG HALT
TEST
RS232
GPIB
CAL
STEP SCAN
4
6
78 2
5
1
3
2016 THD MULTIMETER
SENSE
Ω 4 WIRE
Ω
2
Ω
4
THD
F
igure 2-1
M
odel 2016
f
ront panel
Basic Measurements 2-3
