Function generator connections

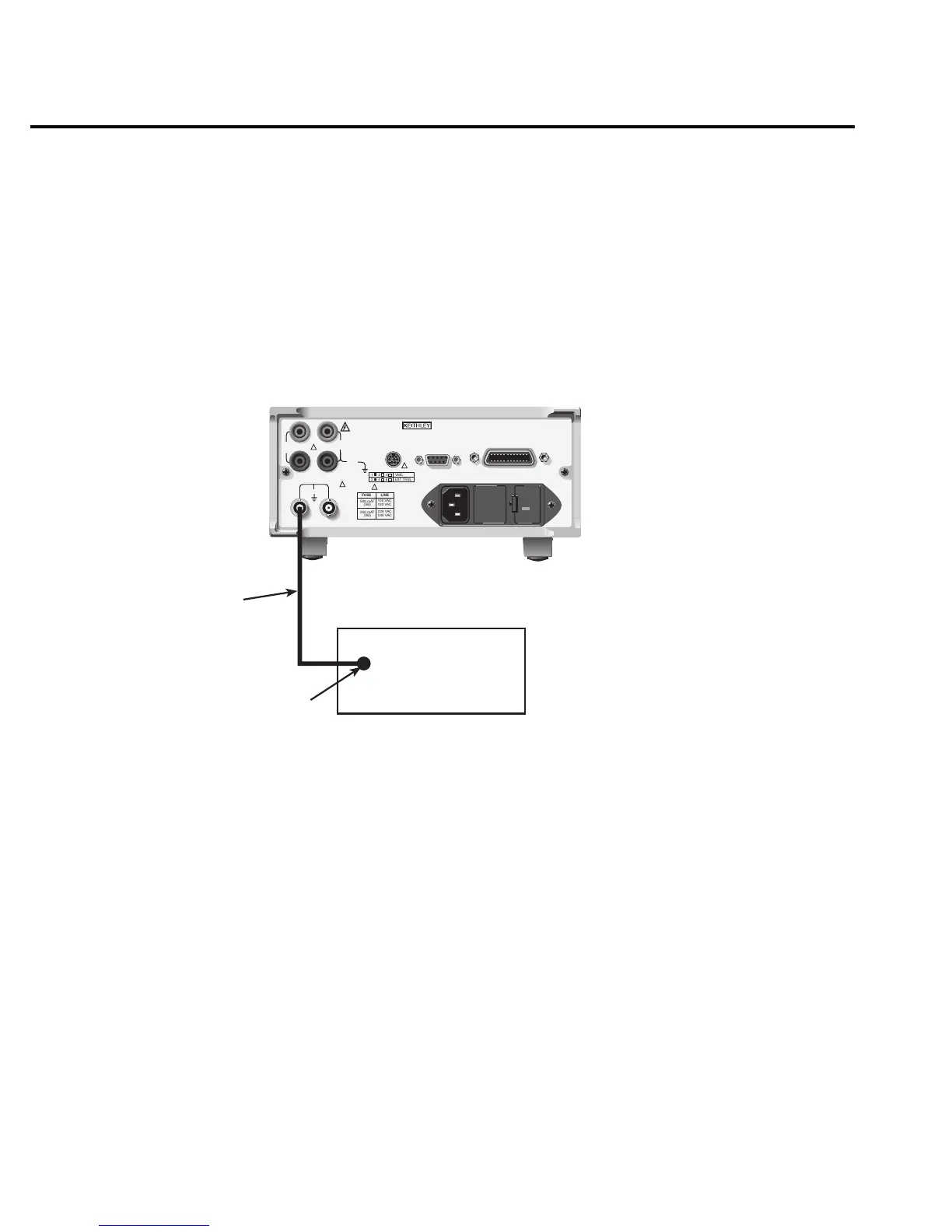

Figure 2-12 shows typical connections for the function generator. In this example,
connections are made to the SOURCE OUTPUT BNC jack using a coax cable. Connections to
the INV/PULSE SOURCE OUTPUT jack are similar. See “Configure the internal function
generator” earlier in this section for details on setting up the function generator.
WARNING Maximum voltage between SOURCE OUTPUT or INV/PULSE SOURCE
OUTPUT low (BNC jack shell) and chassis ground is 42V peak. Exceeding
this value will result in a shock hazard.
Measurement examples
Measuring distortion
NOTE The Rel key is not supported for distortion measurements.
Turn on the Model 2016 and connect the function generator output (SOURCE OUTPUT) to
the front or rear voltage inputs (INPUT HI/LO). Set the INPUTS button accordingly.
1. Press SHIFT then ACV(THD) to put the 2016 into distortion measurement mode.
2. Press MEAS (the THD measure key).
3. When the display shows “TYPE” select THD and press ENTER.
4. When the display shows “FREQ:” select AUTO and press ENTER.
5. When the display shows “UPPR HARM:” select 02 and press ENTER.
6. When the display shows “UNITS:” select PERC and press ENTER.
7. When the display shows “SFIL:” select NONE and press ENTER.
8. Press SOURCE (the THD source key).
9. When the display shows “SINE OUT:” select ON and press ENTER.
10. When the display shows “FREQ:” select 01.0000kHz and press ENTER.
