Section 19: Remote Commands Series 2600A System SourceMeter® Instruments Reference Manual
Parameters
smu,bias,start,stop,limit,ton,toff,points,buffer,tag
[,sync_in][,sync_out])
smu: SourceMeter instrument channel. (for example, smua).
bias: Pulse bias level in amps.
start: Pulse sweep start level in amps.
stop: Pulse sweep stop level in amps.
limit: Voltage limit (for example, compliance) in volts.
ton: Pulse width (for example, on-time) in seconds.
toff: Pulse off time in seconds.
points: Number of pulse measure cycles.
buffer: Reading buffer where pulsed measurements will be stored.
If this is nil when the function is called, no measurements
will be made when the pulse train is initiated.
tag: Numeric identifier to be assigned to the defined pulse train.
sync_in: Defines a digital I/O trigger input line. If programmed, the
pulse train will wait for a trigger input before executing each
pulse. This parameter is optional.
sync_out: Defines a digital I/O trigger output line. If programmed, the
pulse train will generate a trigger output immediately prior
to the start of ton. This parameter is optional.
sync_in_timeout: Specifies the length of time (in seconds) to wait for input
trigger (defaults to 10s).
sync_in_abort: (true or false) Whether to abort pulse if input trigger is not
received before timeout expires (defaults to true).
Waveform
Table 19-16 (cont.)

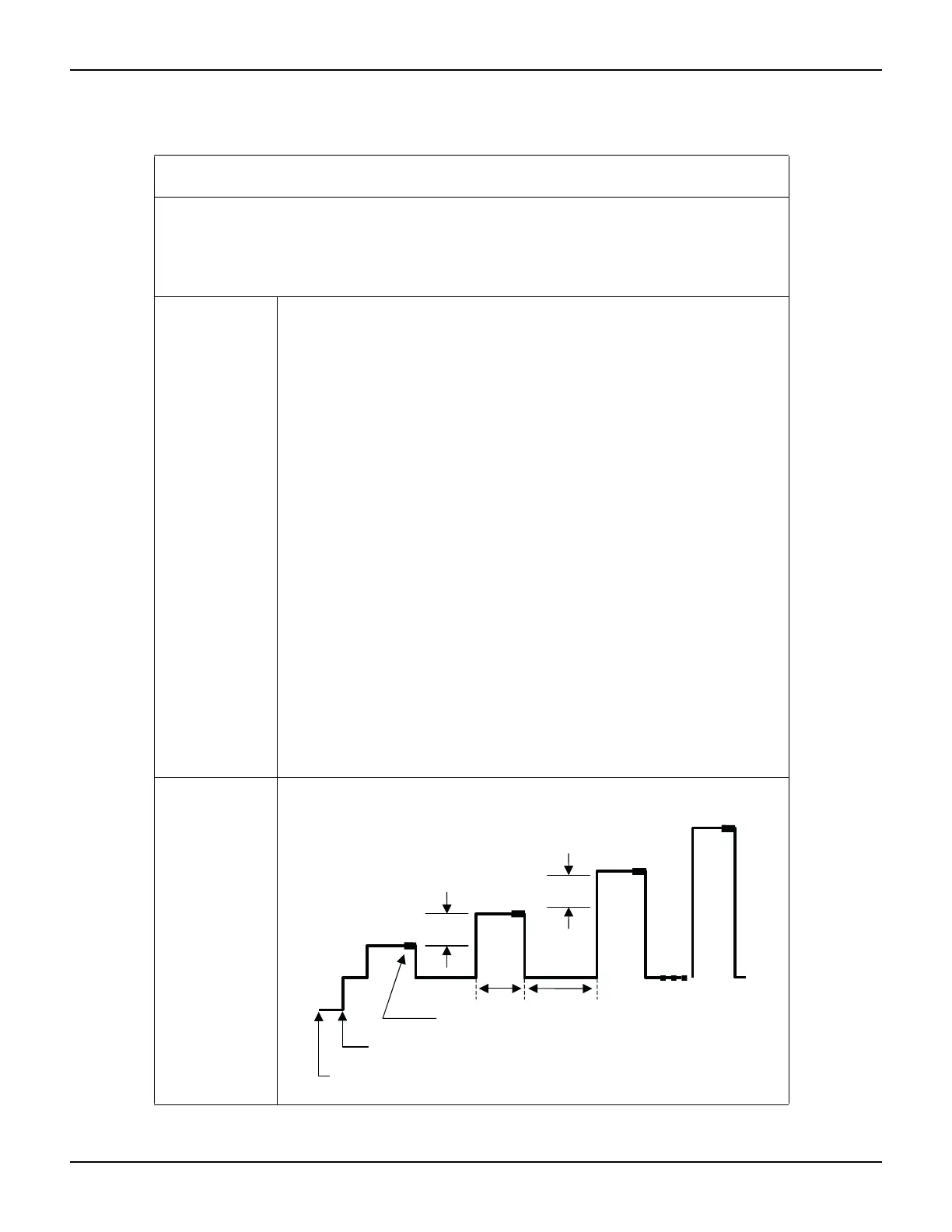

KIPulse TSP test script: ConfigPulseIMeasureVSweepLog
TSP project name: KIPulse
TSP test script name: KIPulse
Function:
ConfigPulseIMeasureVSweepLog
Usage:
f, msg = ConfigPulseIMeasureVSweepLog
(smu,bias,start,stop,limit,ton,toff,points,buffer,tag[,sync_in]
[,sync_out][,sync_in_timeout][,sync_in_abort])
Pulse initiated here
bias
level
toff
start
Measurement (1/NPLC seconds)
LogStep
2
stop
ton
Last source value before pulse train was initiated
LogStepSize = (log10(stop )  log10(start )) / (points  1)
LogStep
n
= (n  1) x (LogStepSize ) where n = [1,points ]
SourceStepLevel
n
= antilog(LogStep
n
) x start
LogStep
3
