Either edge trigger mode
The either edge trigger mode generates a low pulse and detects both rising and falling edges.

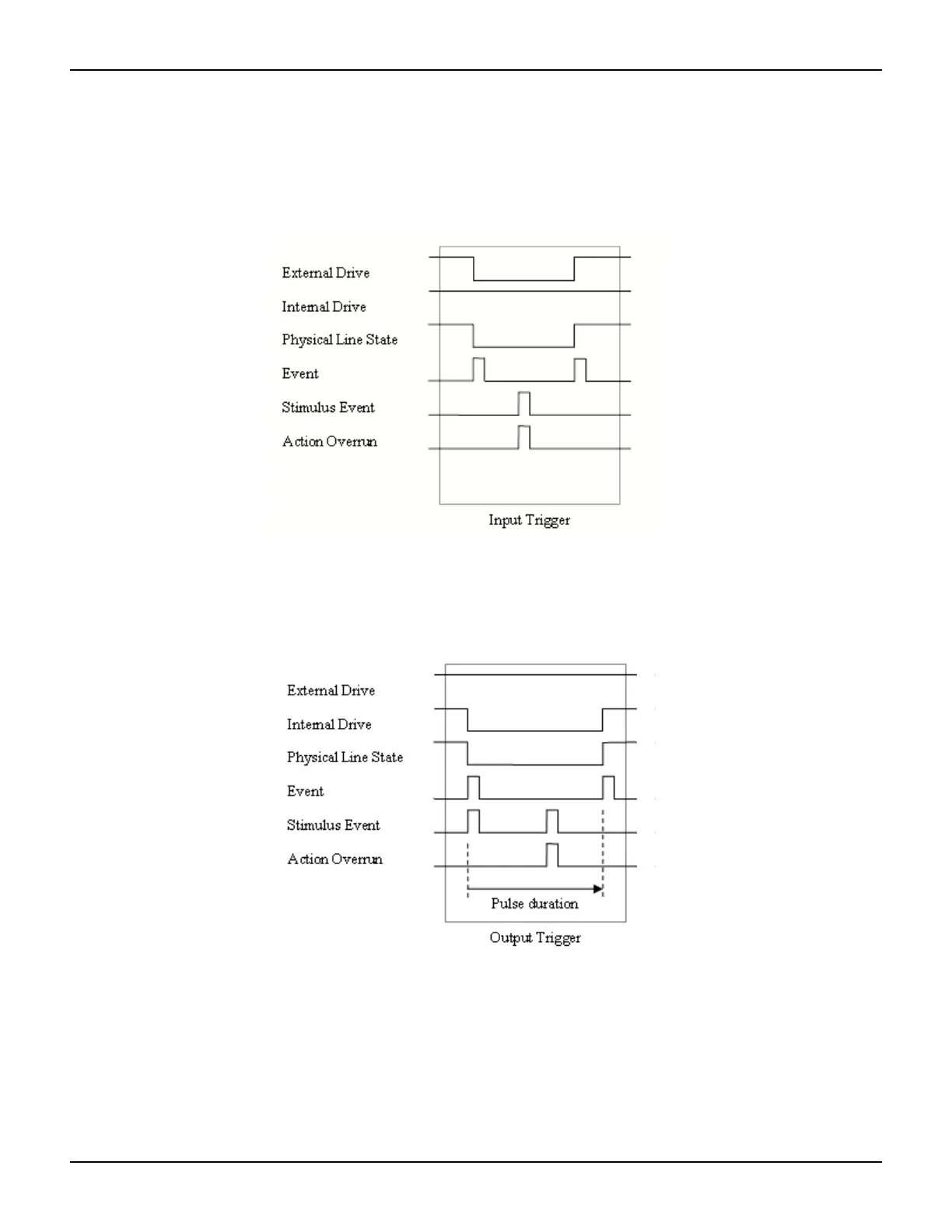

Figure 10-16
Either Edge input trigger
Input characteristics:
• All rising or falling edges generate an input trigger event
Figure 10-17
Either edge output trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert
and tsplink.trigger[N].assert commands generate a low pulse that is similar to
the falling edge trigger mode.
• An action overrun occur if the physical line state is low while a source event occurs.
