Series 2600A System SourceMeter® Instruments Reference Manual Section 2: DUT Test Connections

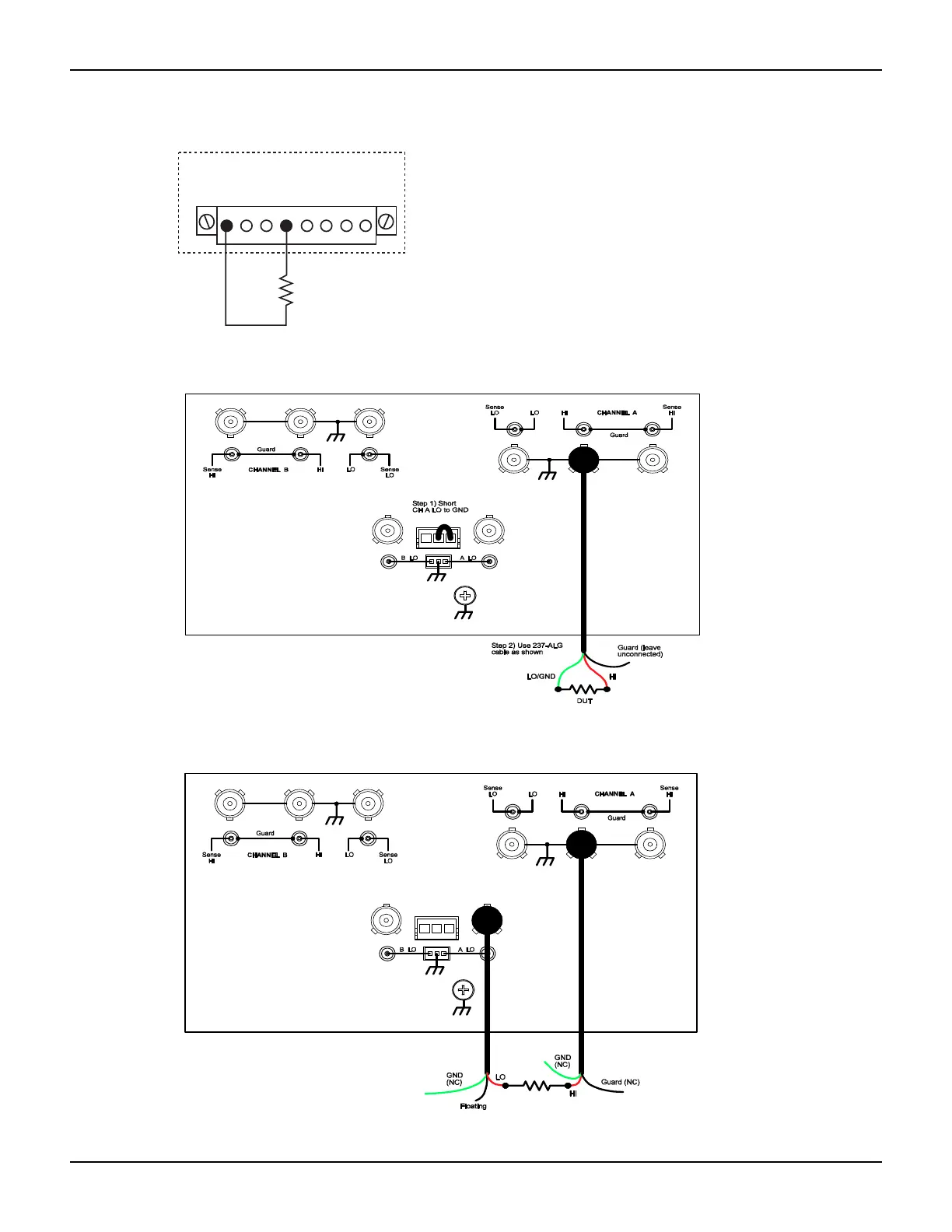

Figure 2-7
Model 2602A/2612A two-wire connections (local sensing)
Figure 2-8
Model 2636A two-wire connections (local sensing, non-floating)
Figure 2-9
Model 2636A two-wire connections (local sensing, floating)
DUT
LO
CHANNEL A
LO GLO HI G G G HI
SS
KEITHLEY Series 2600A
HI
