15-4 Return to Section Topics 2600AS-901-01 Rev. B / September 2008
Section 15: Communications Interfaces Series 2600A System SourceMeter® Instruments Reference Manual
To avoid possible mechanical damage, stack no more than three connectors on any one unit. To
minimize interference caused by electromagnetic radiation, use only shielded IEEE-488 cables.
Available shielded cables from Keithley Instruments are listed in
Options and accessories in
Section 1.
To connect the Series 2600A to the IEEE-488 bus, line up the cable connector with the connector
located on the rear panel. Install and tighten the screws securely, making sure not to overtighten
them (
Figure 15-3 shows the location of the connections).

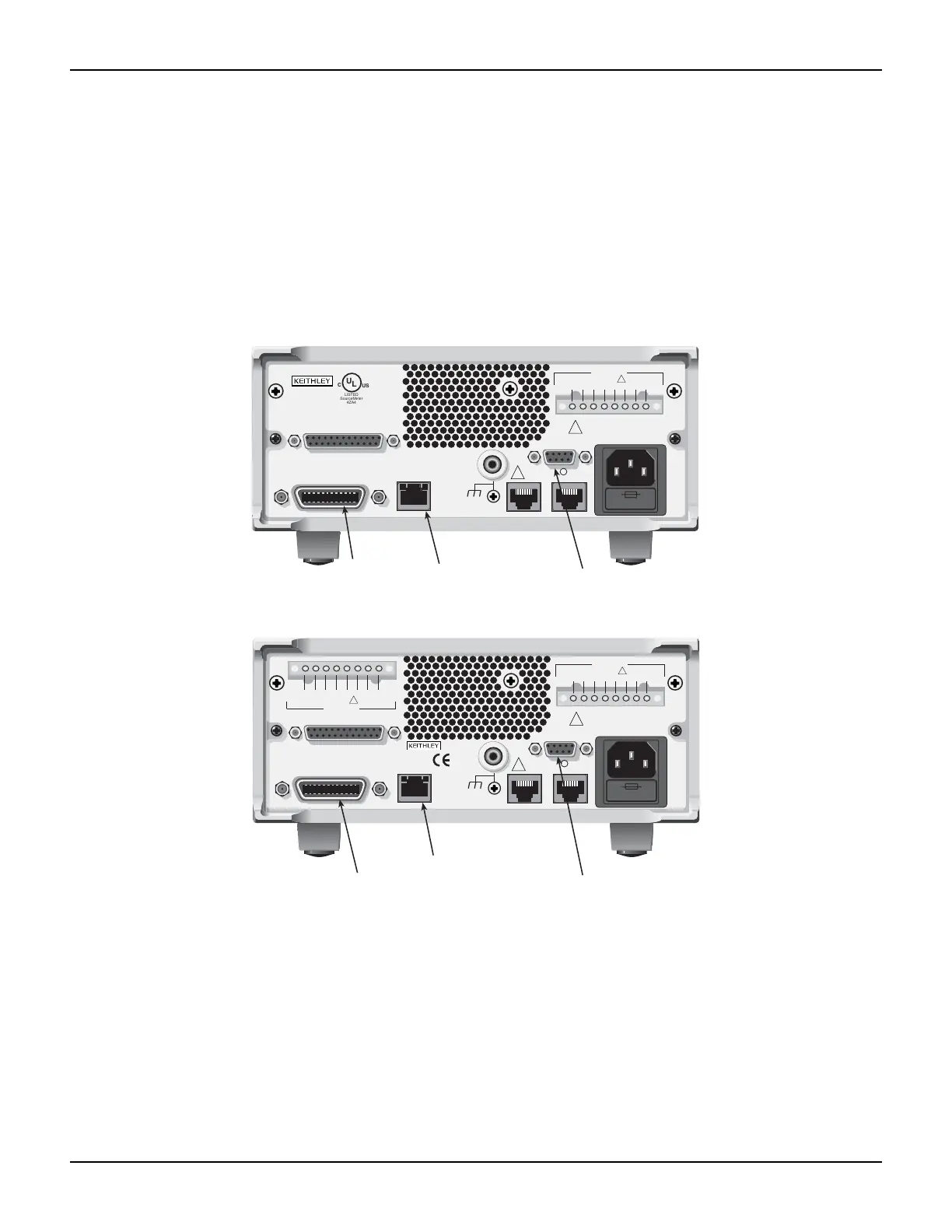

Figure 15-3
IEEE-488, RS-232, and LAN connection
Connect any additional connectors from other instruments as required for your application. Make
sure the other end of the cable is properly connected to the controller. You can only have 15
devices connected to an IEEE-488 bus, including the controller. The maximum cable length is
either 20 meters or two meters multiplied by the number of devices, whichever is less. Not
observing these limits may cause erratic bus operation.
Primary address
The Series 2600A ships from the factory with a GPIB primary address of 26. If the GPIB interface
is enabled, it momentarily displays the primary address on power-up. You can set the address to a
U
L
C
US
LISTED
SourceMeter
4ZA4
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U. S. A .
IEEE-488
LINE RATING
100-240VAC
50, 60Hz
240VA MAX.
DIGITAL I/O
RS-232
LINE FUSE
SLOWBLOW
3.15A, 250V
LAN
TSP-Link
R
CAT I
SS
LO LO HIHI GGGG
CHANNEL A
!
!
!
IEEE-488
Connector
RS-232
Connector
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U. S. A .
IEEE-488
LINE RATING
100-240VAC
50, 60Hz
240VA MAX.
DIGITAL I/O
RS-232
LINE FUSE
SLOWBLOW
3.15A, 250V
TSP-Link
R
CAT I
SS
LO LO HIHI GGGG
CHANNEL A
!
LAN
NO AUTO-MDIX
!
!
CAT I
SSLO
LOHI
HIGG G G
CHANNEL B
!
LAN Port
LAN Port
Model 2601A/2611A
Model 2602A/2612A
IEEE-488
Connector
RS-232
Connector
