Logging LAN trigger events in the event log
The event log can be used to record all LXI triggers generated and received by the Series 2600A
and can be viewed over any command interface. The event log can also be viewed using the
embedded web interface.

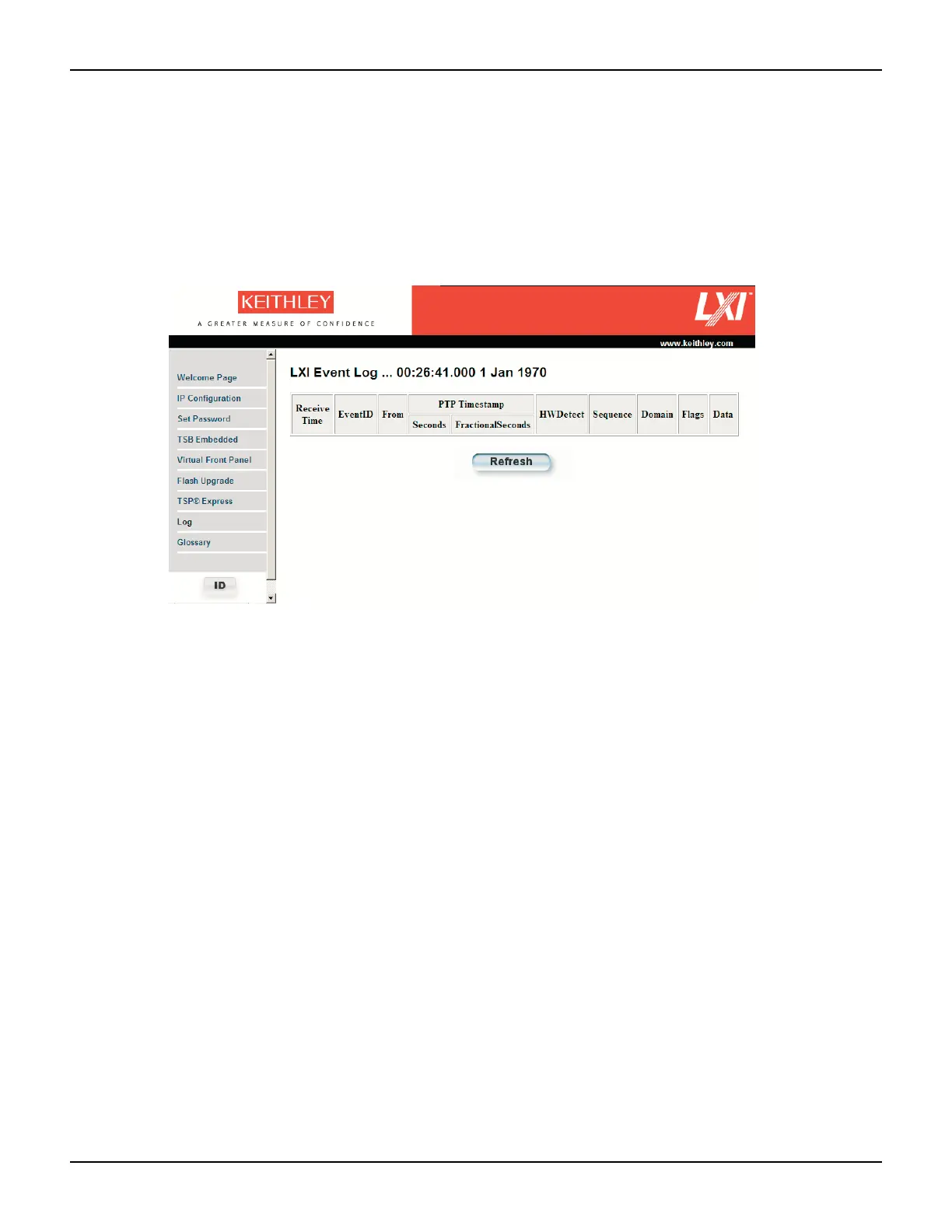

Figure 10-10 shows the view of the LXI event log from the embedded
web interface.
Figure 10-10
Event log
The time stamp, event identifier, the IP address and the domain name identify the incoming and
outgoing LXI trigger packets.
Table 10-7 provides detailed descriptions for the columns in the
event log.
