2600AS-901-01 Rev. B / September 2008 Return to Section Topics 3-11
Series 2600A System SourceMeter® Instruments Reference Manual Section 3: Basic Operation

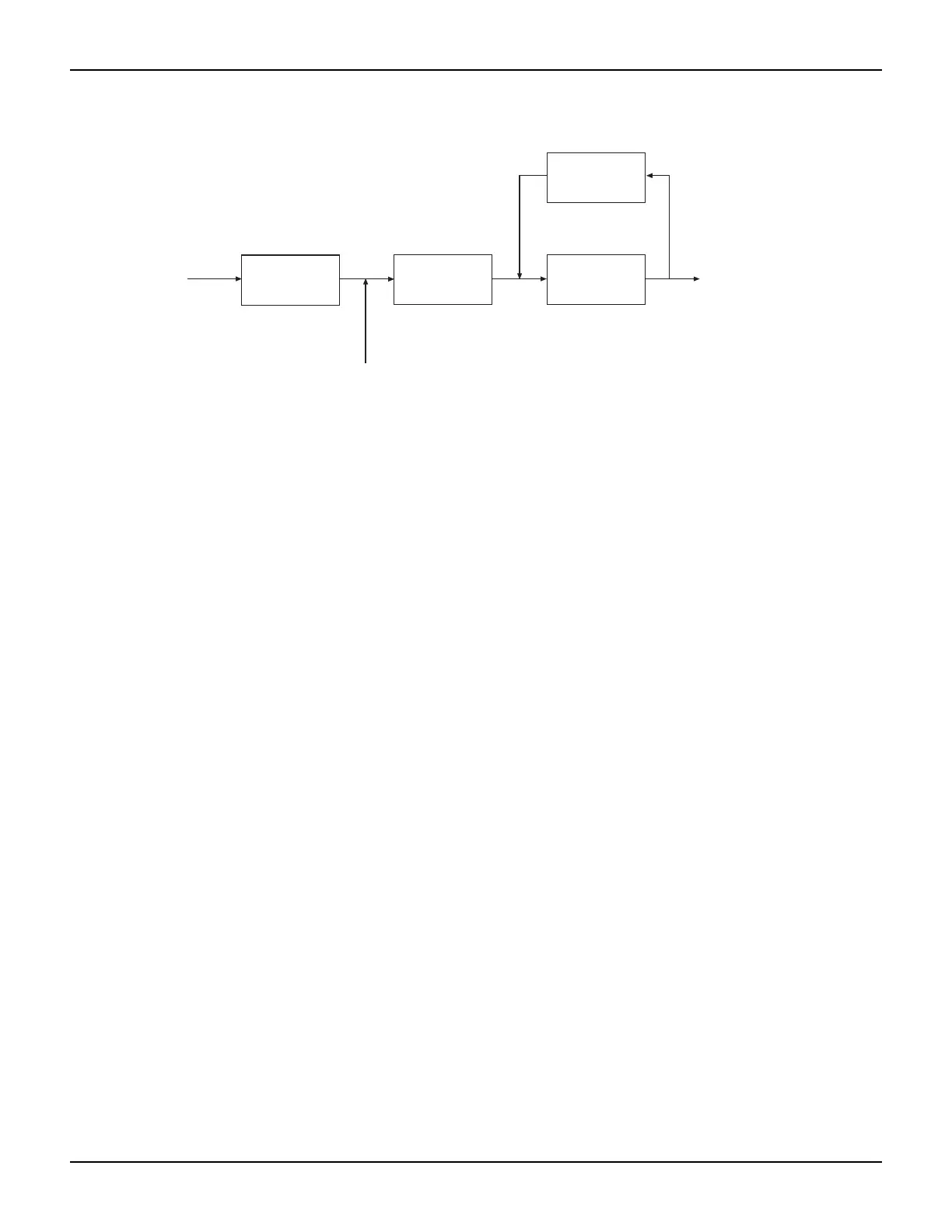

Figure 3-2
Local triggering
Configuring trigger attributes in local mode
• From the front panel, press CONFIG > TRIG. The following menu items are shown:
TRIGGER-IN: Use these options to select the trigger-in source:
• IMMEDIATE: Triggering occurs immediately and the unit starts once it is ready to take
measurements (for example, after the source output is turned on).
• MANUAL: The front panel TRIG key must be pressed to trigger the instrument to take
readings.
COUNT: Sets the trigger count (number of measurements) as follows:
• FINITE: The unit will cycle through measurement cycles for the programmed trigger count
(1 to 99999).
• INFINITE: The unit will cycle through measurement cycles indefinitely until halted.
INTERVAL: Sets the time interval between measurements (0s to 999.999s) when the COUNT is
greater than 1.
DELAY: Sets the delay period between the trigger and the start of measurement (0s to 999.999s).
Front panel triggering example
This example configures the trigger parameters to meet the following requirements:
• Manual triggering (TRIG key)
• Infinite trigger count (cycle indefinitely through measurement cycles)
• Interval (time between measurements): 1s
• Delay (time from trigger to measurement): 2s
Configure the trigger parameters as follows:
1. Press CONFIG then TRIG.
2. Select TRIGGER-IN, then press the ENTER key or the navigation wheel.
3. Select MANUAL, then press the ENTER key or the navigation wheel.
4. Choose COUNT, then select INFINITE, and press the ENTER key or the navigation wheel.
5. Select INTERVAL, set the interval to 1s, then press the ENTER key or the navigation
wheel.
6. Choose DELAY, set the delay to 2s, then press the ENTER key.
Source Delay
Measure
Output
On
Interval
Trigger In:
Front Panel (Immediate or TRIG)
# Measures
< Count
Complete
