Section 10: Triggering Series 2600A System SourceMeter® Instruments Reference Manual

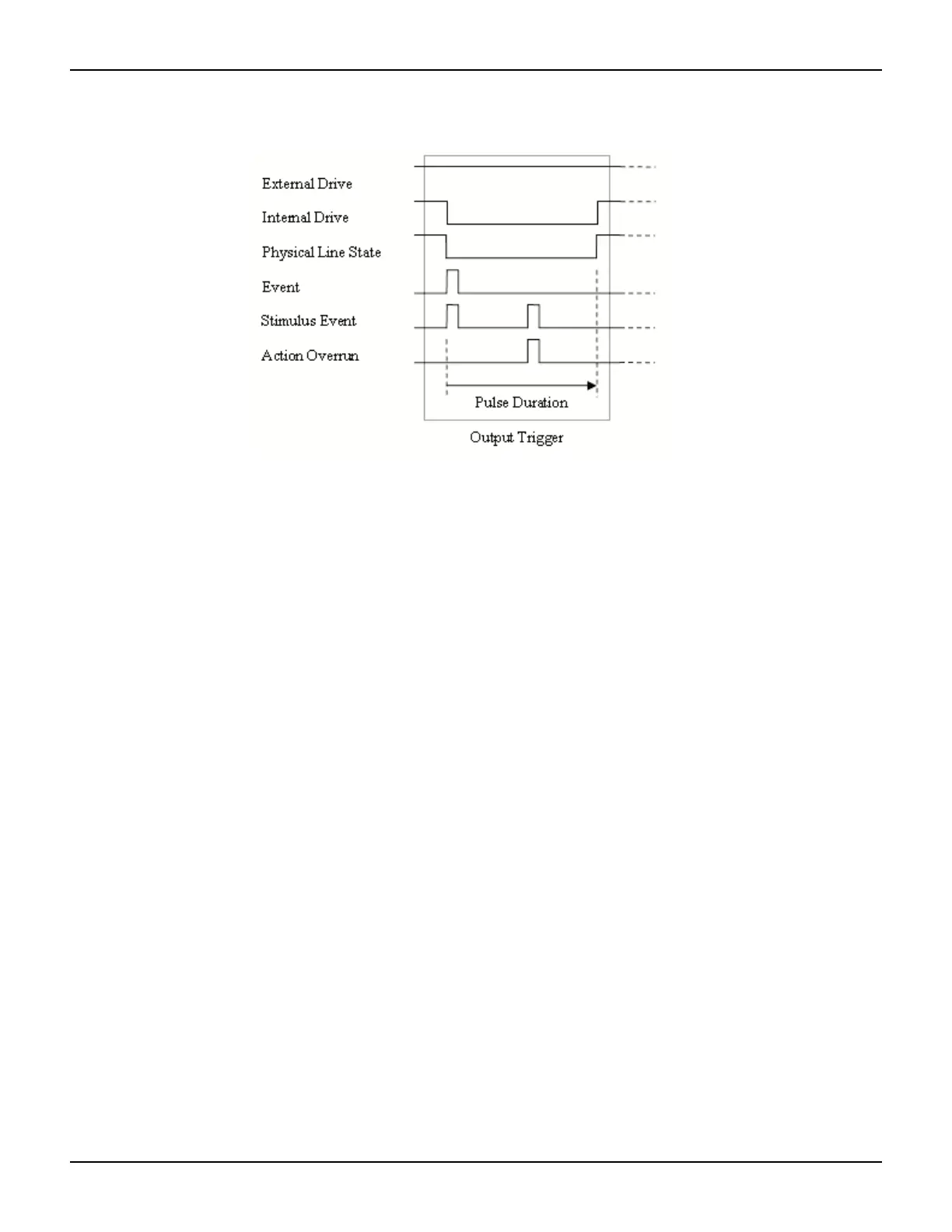

Figure 10-12
Falling edge output trigger
Output characteristics
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert
and tsplink.trigger[N].assert commands generate a low pulse for the
programmed pulse duration.
• An action overrun occurs if the physical line state is low and a source event occurs.
