Factory script information
KISweep
The KISweep factory script provides simple sweep test programming and can be used as an
example of how to use the sweeping function.
The KISweep factory script is made up of the following functions. All of these functions can be
accessed from both the front panel and the remote interfaces. These functions provide simple
sweeping operations and can be used as examples of how to use the sweeping functions. Details
on these functions are provided in the tables that follow.
SweepILinMeasureV(smu, starti, stopi, stime, points)
SweepVLinMeasureI(smu, startv, stopv, stime, points)
SweepILogMeasureV(smu, starti, stopi, stime, points)
SweepVLogMeasureI(smu, startv, stopv, stime, points)
SweepIListMeasureV(smu, ilist, stime, points)
SweepVListMeasureI(smu, vlist, stime, points)
Table 19-3
KISweep TSP test script: SweepILinMeasureV
TSP project name: KISweep
TSP test script name: KISweep
Function:
SweepILinMeasureV(smu, starti, stopi, stime, points)
Description Performs a linear current sweep with voltage measured at every step (point):
• Sets the smu to output starti amps, allows the source to settle for stime
seconds, and then performs a voltage measurement.
• Sets the smu to output the next amps step, allows the source to settle for
stime seconds, and then performs a voltage measurement.
• Repeats the above sequence until the voltage is measured on the stopi
amps step.
The linear step size is automatically calculated as follows:
step = (stopi – starti) / (points – 1)

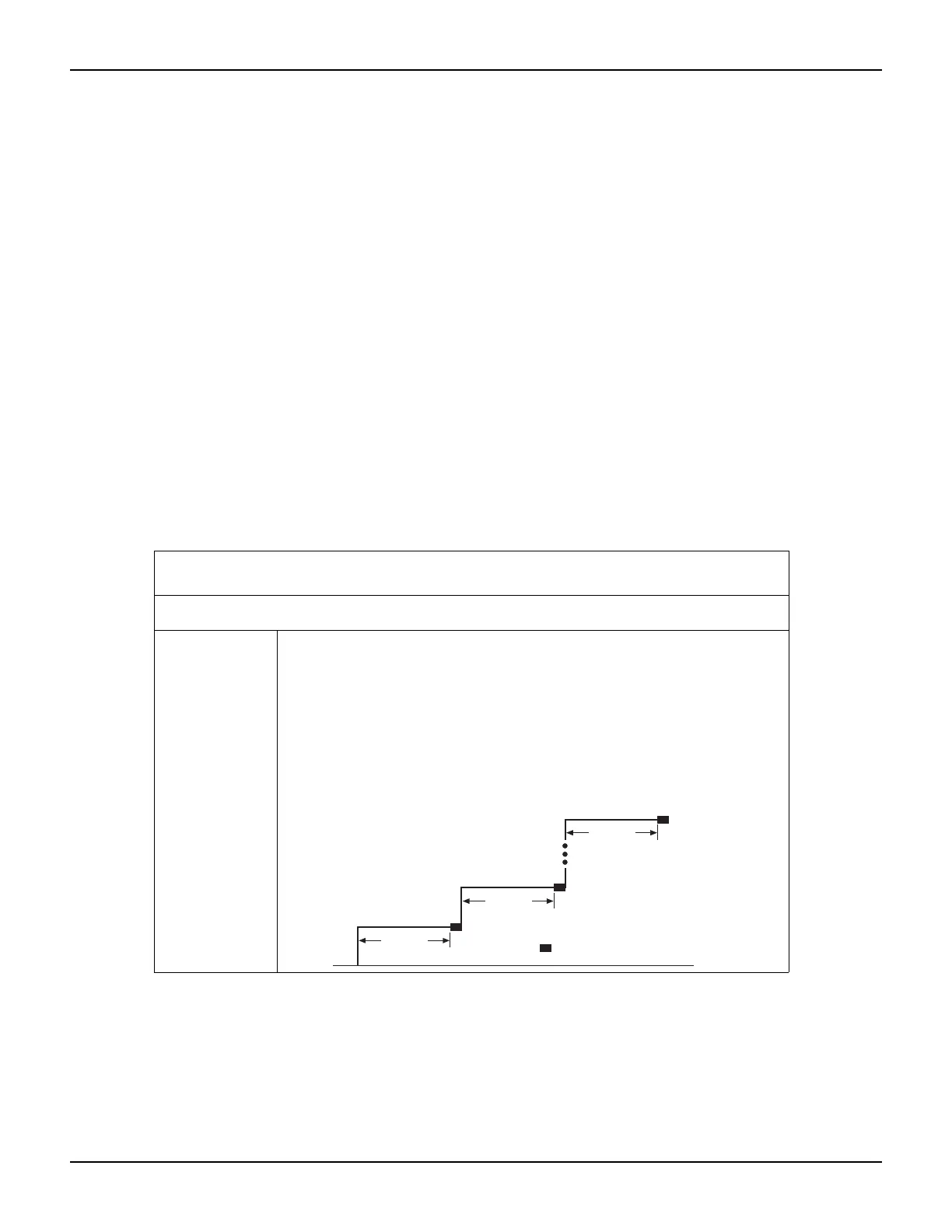

starti
= Voltage measurement
stopi
stime
stime
stime
