Keysight 16860 Series Portable Logic Analyzer Service Guide 117
Removing, Replacing, or Returning 16860 Series Logic Analyzer Assemblies 6

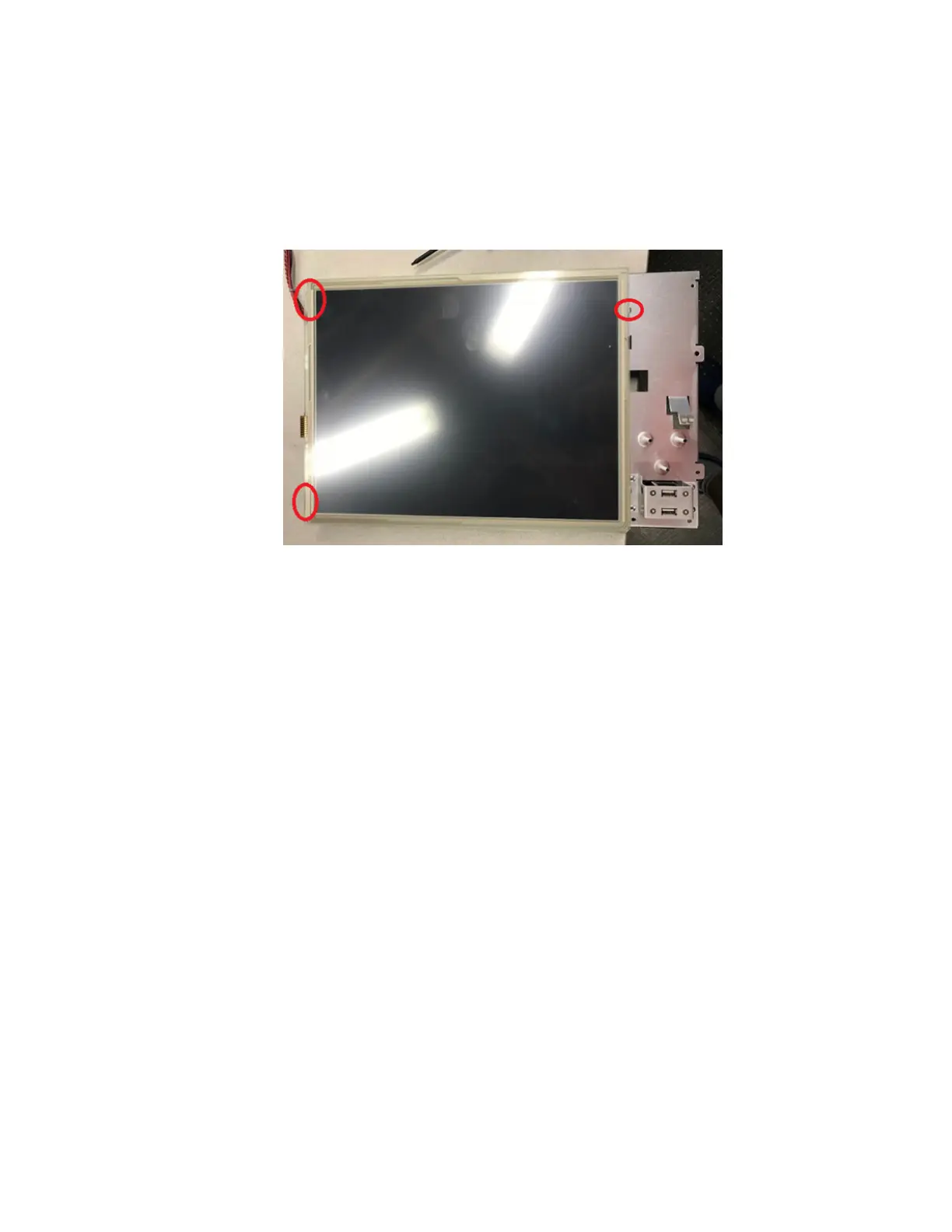

c Remove the other three screws that secure the LCD panel to the LCD assembly. These three
screws are encircled in the photo below. Then remove the LCD panel while taking care of the
flat cable on the left side of the LCD panel. You may have to do gentle twisting to remove the
LCD panel.
