6 Removing, Replacing, or Returning 16860 Series Logic Analyzer Assemblies
124 Keysight 16860 Series Portable Logic Analyzer Service Guide
Removing and Replacing the FIB Board
Prerequisites
Ensure that you have:
• completed the tasks listed in the “Before you Start topic.
• removed the cover using the procedure listed in “Removing and Replacing the Hard Drive,
Acquisition Bezel, and Cover" on page 109.
• removed the front panel using the procedure listed in “Removing and Replacing the Front
Panel" on page 112.
To remove and replace the FIB board of 16860 logic analyzer

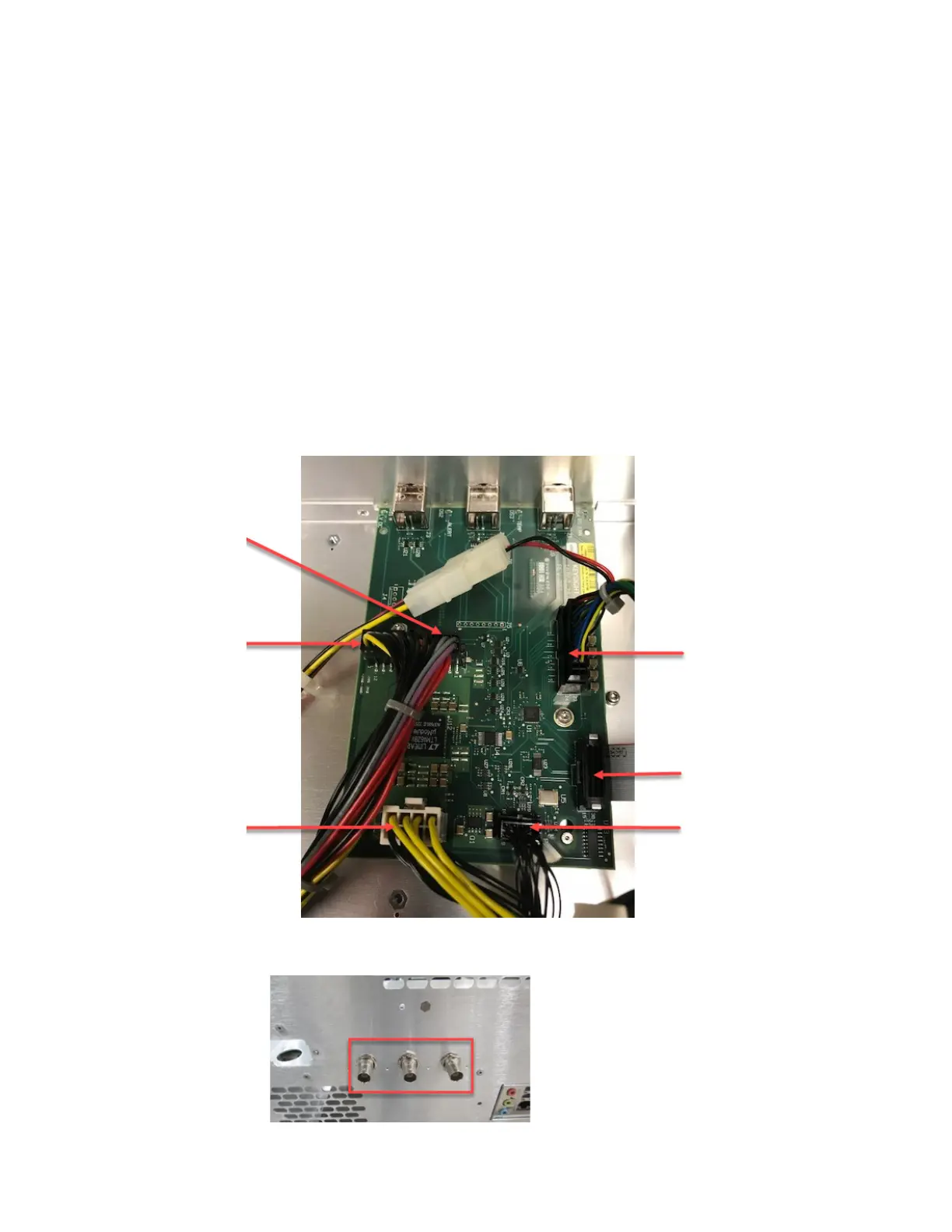

1 Disconnect all the cables connected to the FIB board as indicated in the photo below. Before
removing, note the locations of these cables for reconnection. If these cable connections are
loose, set these aside.
2 Using a 9/16” hex socket, remove the three nuts and three washers from the rear panel.
