3 Testing 16860 Performance
42 Keysight 16860 Series Portable Logic Analyzer Service Guide

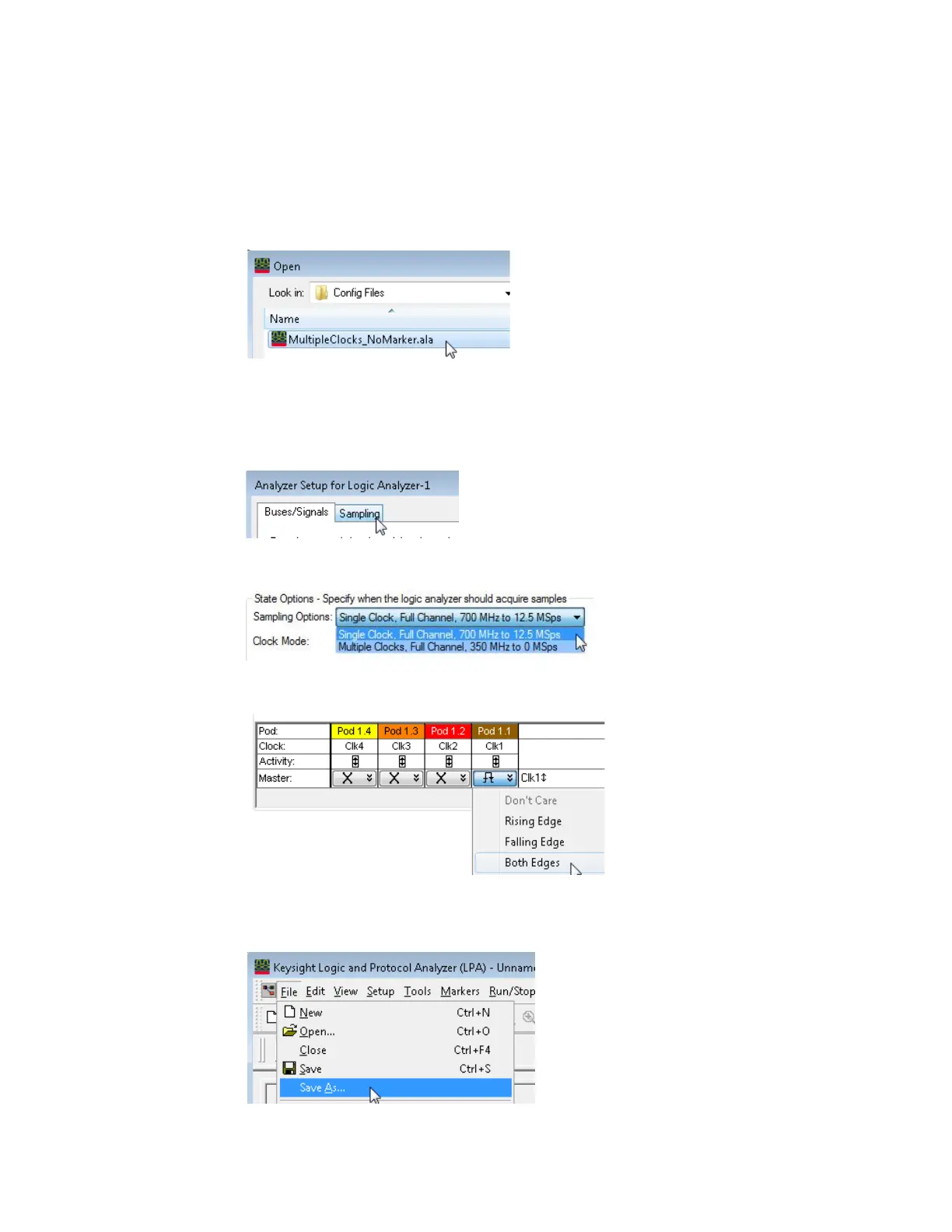

Create Configuration File 3 - Single Clock (no Marker)
1 Start with the MultipleClocks_NoMarker configuration file. Select File then Open. In the Open dialog
select the file and then open. If asked about saving the current configuration, click No.
2 Ensure that there is a U4203A connected to Pods 1 and 2. If Pods 3 and 4 exist, connect a
U4203A to these pods also. The Pod 1 leads should be connected to the generator as described
above.
3Click the Analyzer Setup > Sampling tab.
4In the State Options section, change the Sampling options to Single Clock.
5 In the clock selection area, change the Pod 1 clock to Both Edges.
6 Close the dialog by clicking OK.
7 Save the configuration by selecting File then Save As ….
