Keysight 16860 Series Portable Logic Analyzer Service Guide 53
Testing 16860 Performance 3

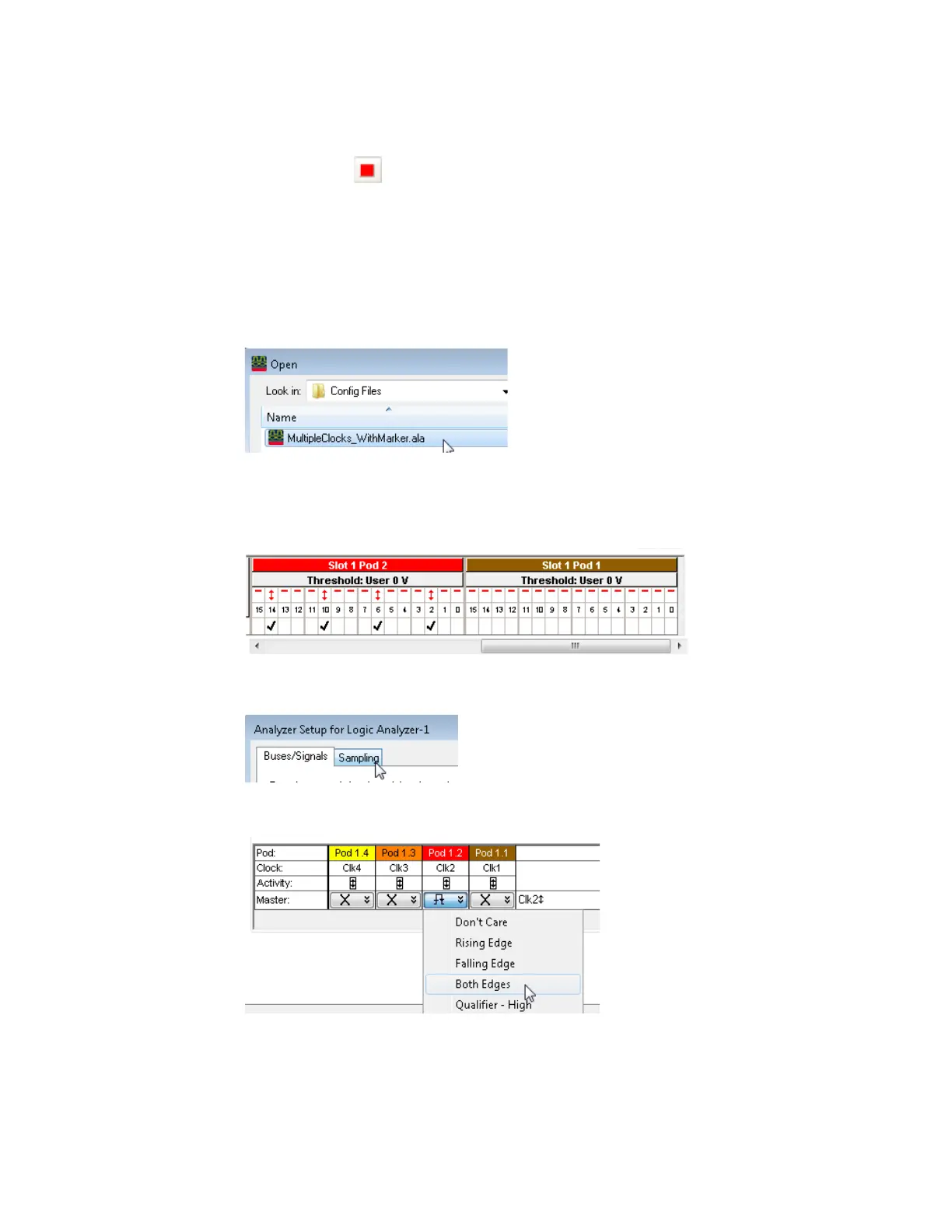

17 Click the Stop toolbar button to stop the data acquisition.
18 Note the generator frequency setting this will be used in the next section to verify the data rate.
Pod 2 Clock - Setup for Maximum Data Rate
1 Verify that the Generator is set to the frequency found in the last section as a starting point.
2Load the MultipleClocks_WithMarker.ala configuration file. If asked to save the current configuration
file, click No.
3Open the Bus/Signal Setup dialog by clicking the Setup Icon in the tool bar.
4 Unassign the data bits from Pod1.
5 Assign bits 2, 6, 10, and 14 of Pod 2.
6Open the Sampling tab.
7 In the clock assignment area, set Pod 1 Clock to Don't Care and set Pod 2 Clock to Both Edges.
8 Adjust the sample position using the procedure described earlier by clicking the Eye Scan: Sample
Position and Thresholds button.
