3 Testing 16860 Performance
54 Keysight 16860 Series Portable Logic Analyzer Service Guide
9 Close the dialog boxes by clicking OK.

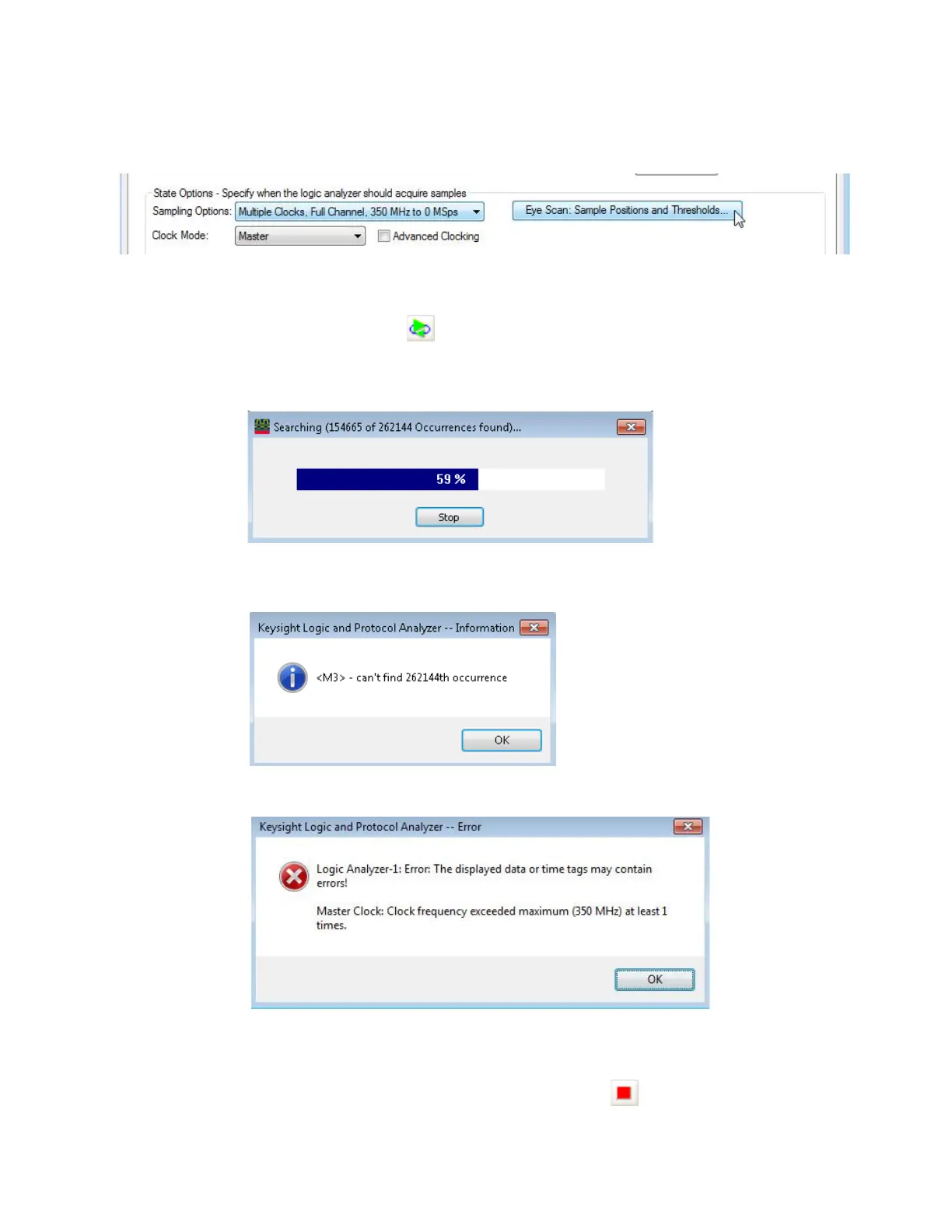

Pod 2 Clock - Measuring Maximum Data Rate
1Click the Run Repetitive icon. Let the logic analyzer run for about 1 minute. The analyzer will
acquire data and the Listing Window will continuously update. A marker search window will
appear and show progress.
2 If incorrect data is found, the following window appears. The data in the listing window should be
A's & 5's.
3 If the clock rate is too high, this error message may occur.
4 If either of these messages occur, the generator frequency should be lowered, Eye Scan should
be rerun, and the test should be rerun.
5 Lower the generator frequency by 1 MHz and rerun the test.
6 After the analyzer runs for about 1 minute, click the Stop button to stop the acquisition. If
the "can't find occurrence" window does not appear, then the analyzer has found good data.
