Keysight 16860 Series Portable Logic Analyzer Service Guide 33
Testing 16860 Performance 3
Connect the Test Equipment
Connect the Logic Analyzer Pod to the Pulse Generator
1 Connect one U4203A Flying Lead Probe Set to Pods 1/2 of the 16860 series logic analyzer.
2 If not a 16861A, connect one U4203A Flying Lead Probe Set to Pods 3/4 of the analyzer.
3 Connect the Pod 1 U4203A Flying Lead Probe Set's CLK lead to the pin strip of the SMA/Flying
Lead connector at the pulse generator's Channel 1 OUTPUT.

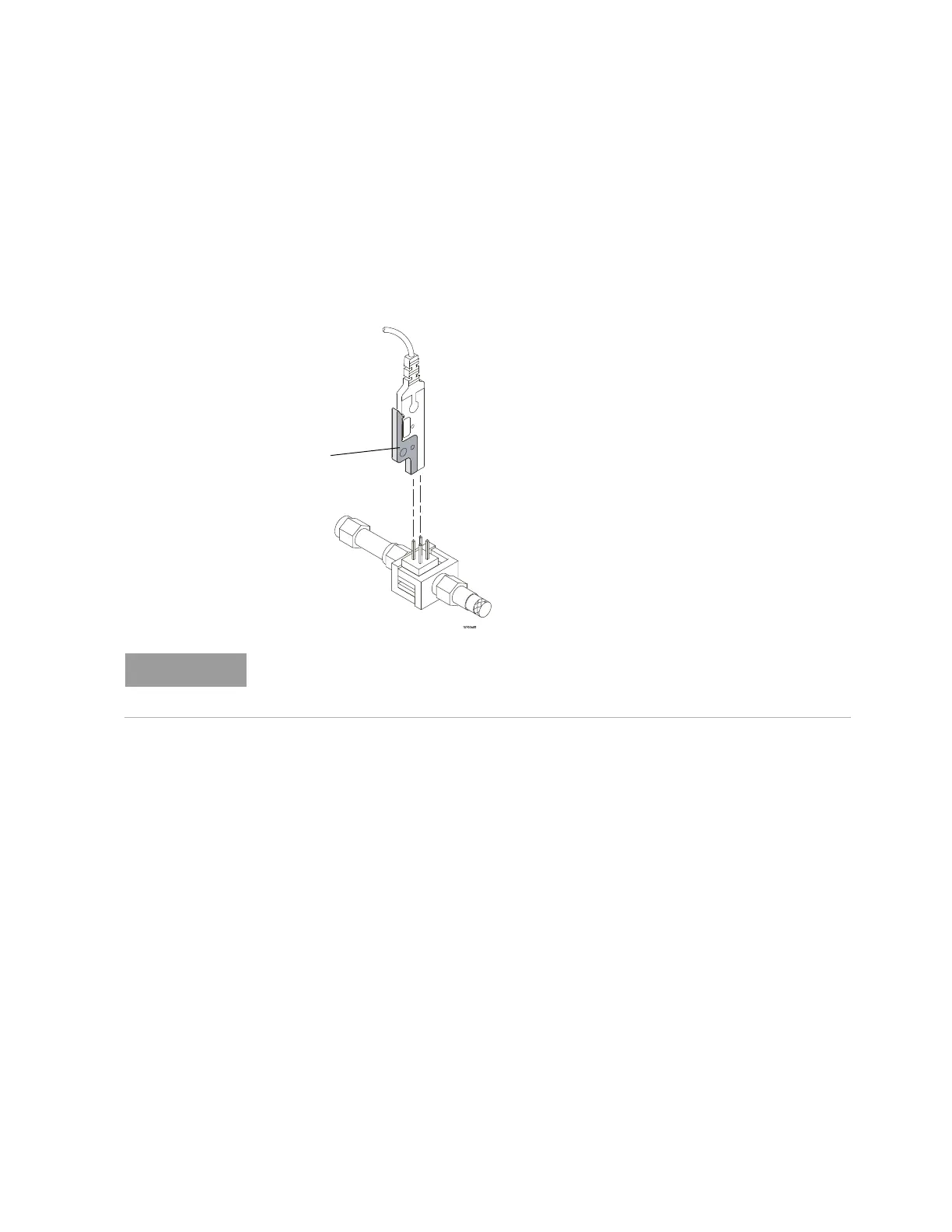

4 Connect the Pod 1 U4203A Flying Lead Probe Set's CLK (NOT) lead to the SMA/Flying Lead
connector at the pulse generator's Channel 1 OUTPUT (NOT). Again, be sure to use the black
ground clip and orient the leads so that the black clip is connected to ground.
5 Connect the Pod 1 U4203A Flying Lead Probe Set's bits 2 and 10 to the SMA/Flying Lead test
connector's pin strip connector at the pulse generator's Channel 2 OUTPUT.
6 Connect the Pod 1 U4203A Flying Lead Probe Set's bits 6 and 14 to the SMA/Flying Lead test
connector's pin strip connector at the pulse generator's Channel 2 OUTPUT (NOT).
On all connections, be sure to use the black ground clip (supplied with the U4203A Flying Lead
Probe Set) and orient the leads so that the black clip is connected to one of the SMA/Flying
Lead connector's ground pins!
