Keysight 16860 Series Portable Logic Analyzer Service Guide 5

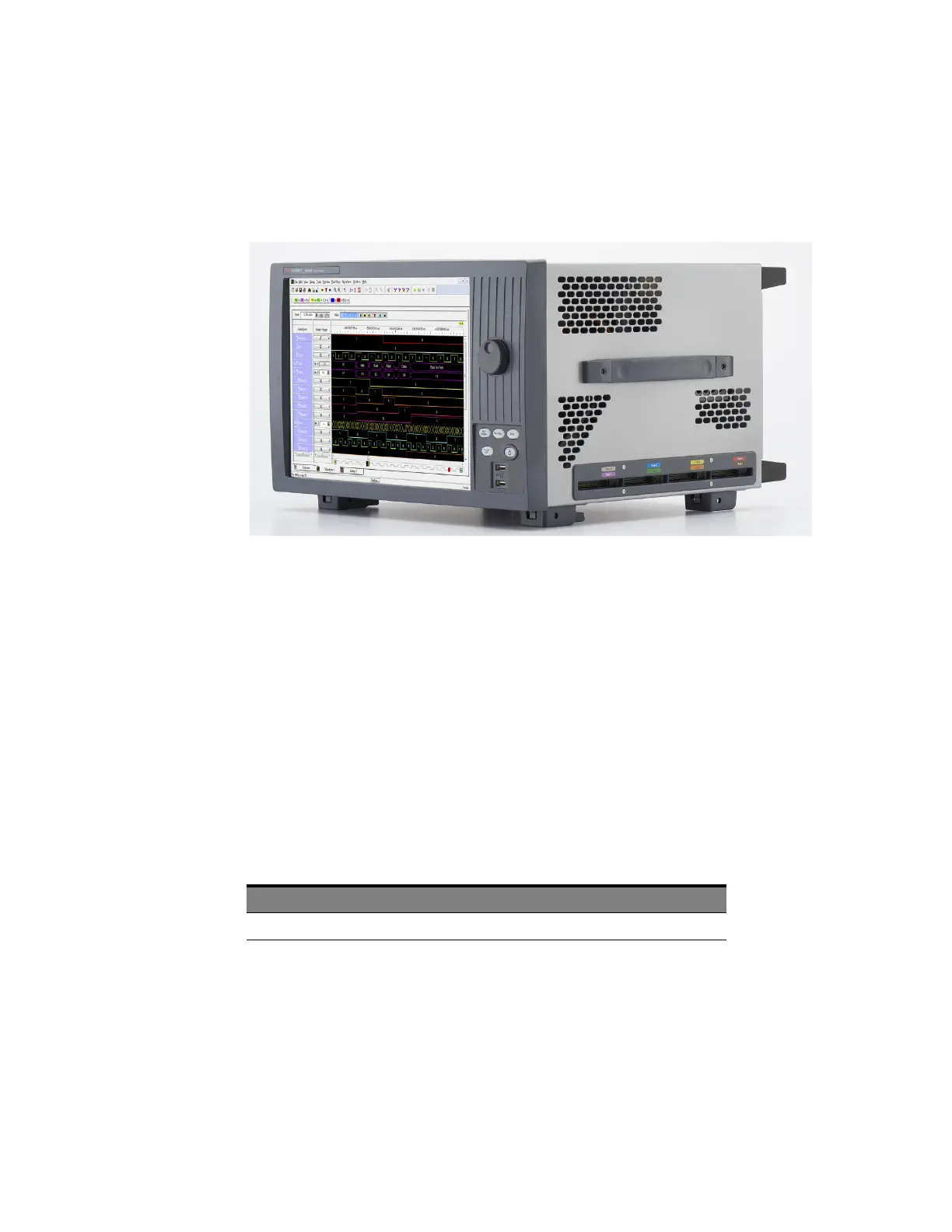

Keysight 16860 Series Logic Analyzer - At a Glance
The Keysight Technologies 16860 series logic analyzers are portable logic analyzers that range from
34 to 136 logic acquisition channels, depending on the model.
The 16860-series models provide features such as:
• deeper memory
• ¼ channel 10GHz Timing mode
• deskew of timing traces by individual channels
• single as well as multiple clocks support
• advanced clocking capabilities
• clock hysteresis
• various clock modes such as Master, Dual Sample, Master/Slave, and Demultiplex.
This series of logic analyzers can be used:
• at a higher speed (700MHz to 12.5 MSps) for debug, validation and analysis of DDR and LPDDR
memory systems.
• at a lower speed (350MHz to 0 MSps) as a medium to high performance general purpose logic
analyzer.
Model Comparison
Features, Logic Acquisition
• 2 M to 128 M samples of memory depth per channel (depending on memory option), software
upgradeable.
• 350 MHz or 700 MHz maximum state clock rate (depending on state speed option), software
upgradeable.
• Full Channel Timing Mode at 2.5 GHz sampling with 12.5 GHz Timing Zoom.
• Half Channel Timing Mode at 5.0 GHz sampling with 12.5 GHz Timing Zoom
Keysight Model Number 16861A 16862A 16863A 16864A
Logic acquisition channels 34 68 102 136
