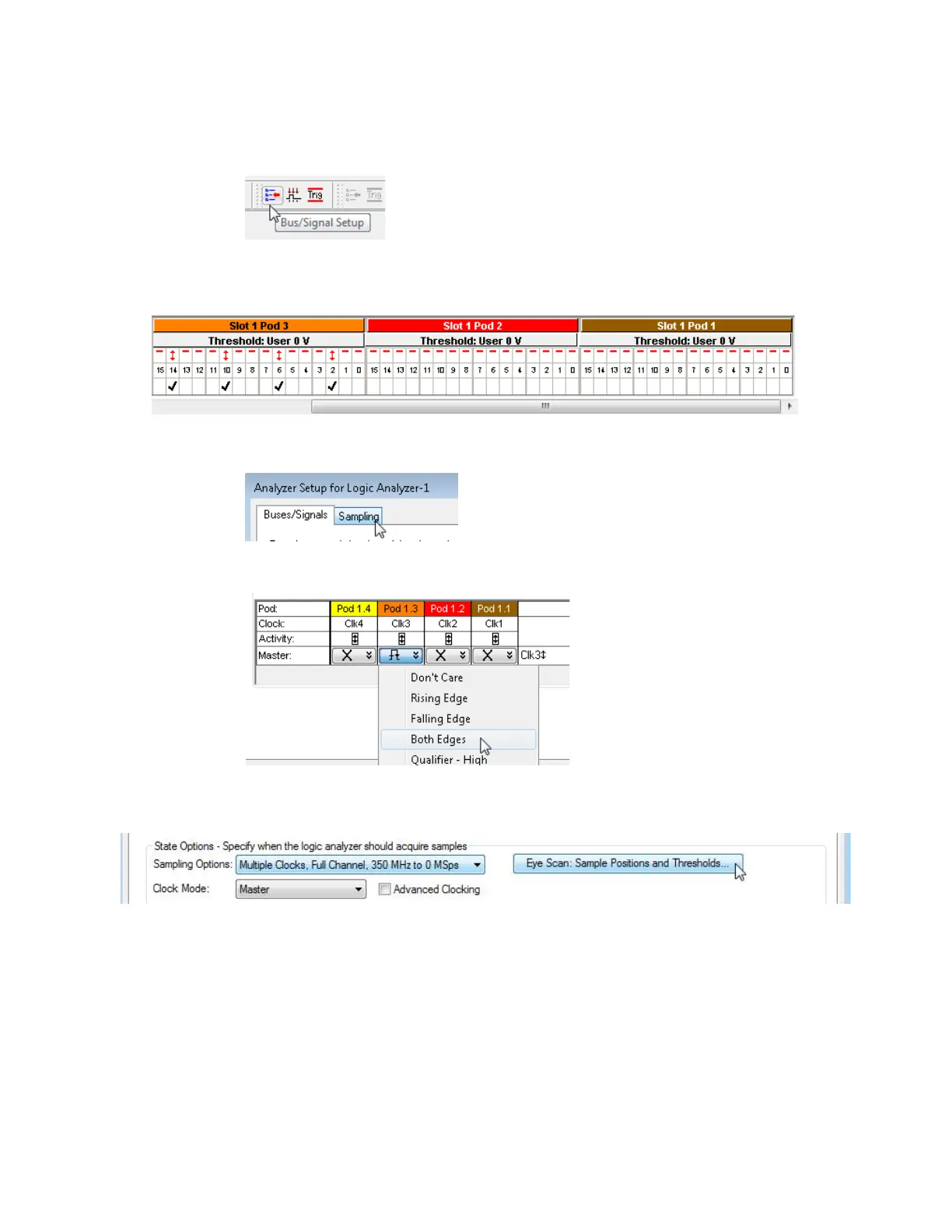

Keysight 16860 Series Portable Logic Analyzer Service Guide 57
Testing 16860 Performance 3
4 Unassign the data bits from Pod1.
5 Assign bits 2, 6, 10, and 14 of Pod 3.
6Open the Sampling tab.
7 In the clock assignment area, set Pod 1 Clock to Don't Care and set Pod 3 Clock to Both Edges.
8 Adjust the sample position using the procedure described earlier by clicking the Eye Scan:
Sample Position and Thresholds button.
9 Close the dialog windows by clicking OK.
Pod 3 Clock - Measuring Maximum Data Rate
