Keysight 16860 Series Portable Logic Analyzer Service Guide 39
Testing 16860 Performance 3

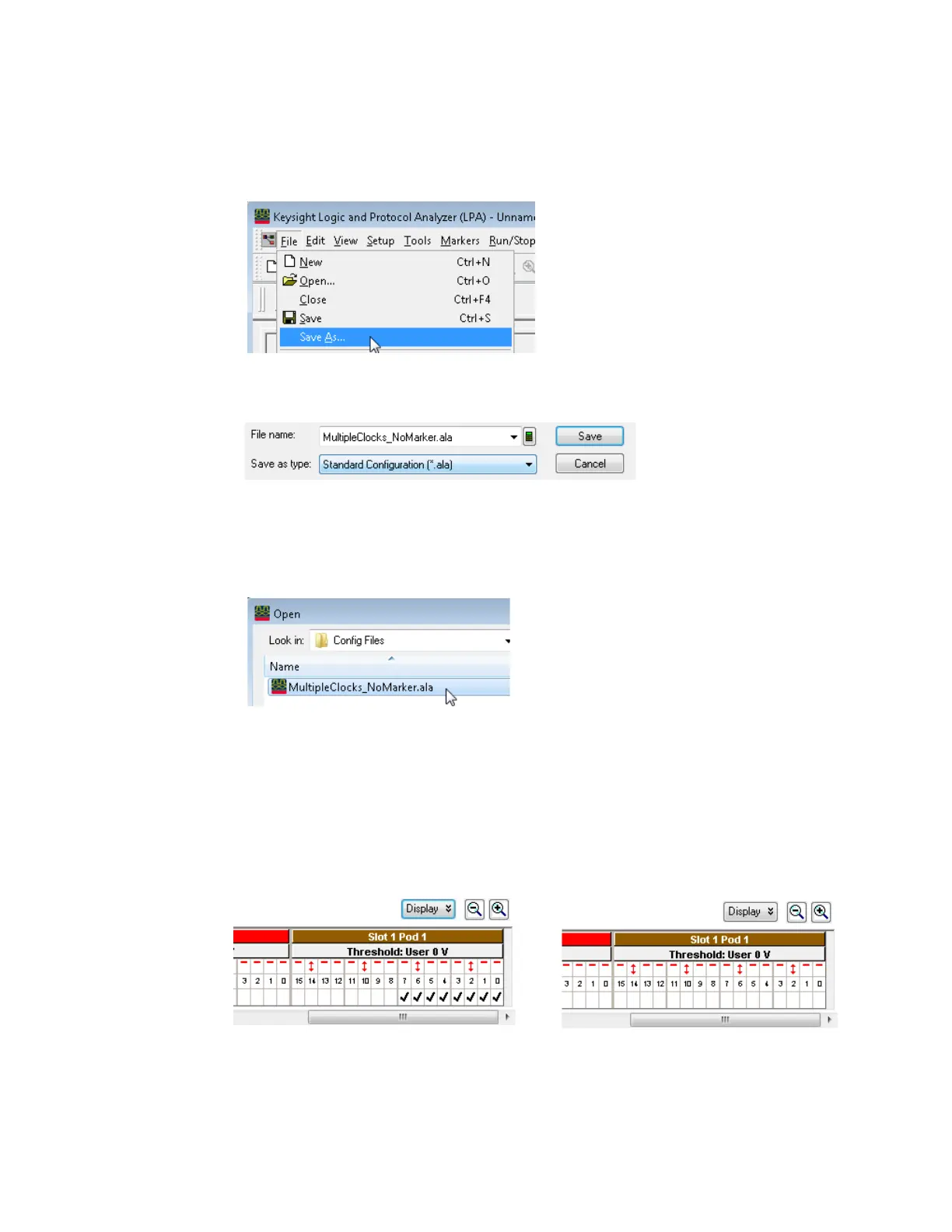

15 Save the configuration by selecting File then Save As ….
16 In the Save As dialog, type the file name MultipleClocks_NoMarker.ala. For file options, select Setup
Only. Then click Save.
Create Configuration File 2 - Multiple Clocks (with Marker)
1 Start with the MultipleClocks_NoMarker configuration file. Select File then Open. In the Open dialog
select the file and then open. If asked about saving the current configuration, click No.
2 Ensure that there is a U4203A connected to Pods 1 and 2. If Pods 3 and 4 exist, connect a
U4203A to these pods. The Pod 1 leads should be connected to the generator as described
above.
3 From the main drop down menu, select Setup and then select Bus/Signal. The Analyzer Setup dialog
is displayed.
4 The activity indicators now show activity on the channels that are connected to the pulse
generator. Un-assign all channels. You can do this quickly by clicking on the left-most check
mark and dragging to the right across all of the other check marks.
5 Assign bits that are connected, Bits 2, 6, 10, 14.
