Keysight 16860 Series Portable Logic Analyzer Service Guide 25
Testing 16860 Performance 3
Perform the Self-Tests
Power the 16860 series analyzer on and start the Logic Analyzer application.
1 Before performing the self- tests, disconnect all probes from the logic analyzer.

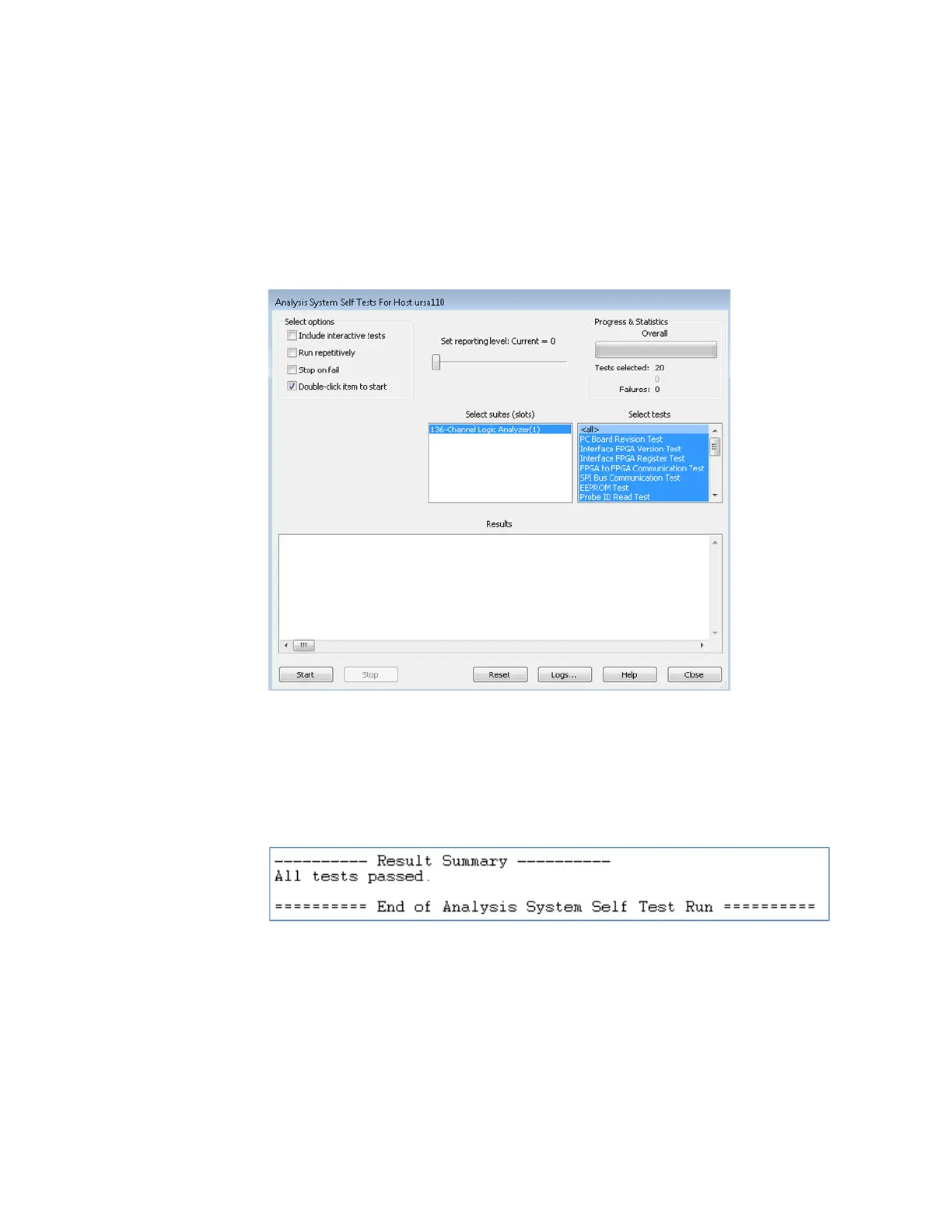

2Select Help->Self-Test... from the main menu. The Analysis System Self Tests window appears.
3From the Select suites list, select the option displayed for 16860. Then, select All from the Select
tests list.
4Select Start to start a complete module self-test. The progress of the self tests is displayed in the
Results area of the window.
5 When the self-tests are complete, check the Results window to ensure that the Result Summary
says that all tests passed. If all tests did not pass, refer to “To use the logic acquisition
troubleshooting flowcharts" on page 87.
6 Select the Close button to close the Analysis System Self Tests window.
7 If all self- tests pass, then record “PASS” in the “Logic Analysis System Self-Tests” section of the
Performance Test Record (page 77).
