Keysight 16860 Series Portable Logic Analyzer Service Guide 43
Testing 16860 Performance 3

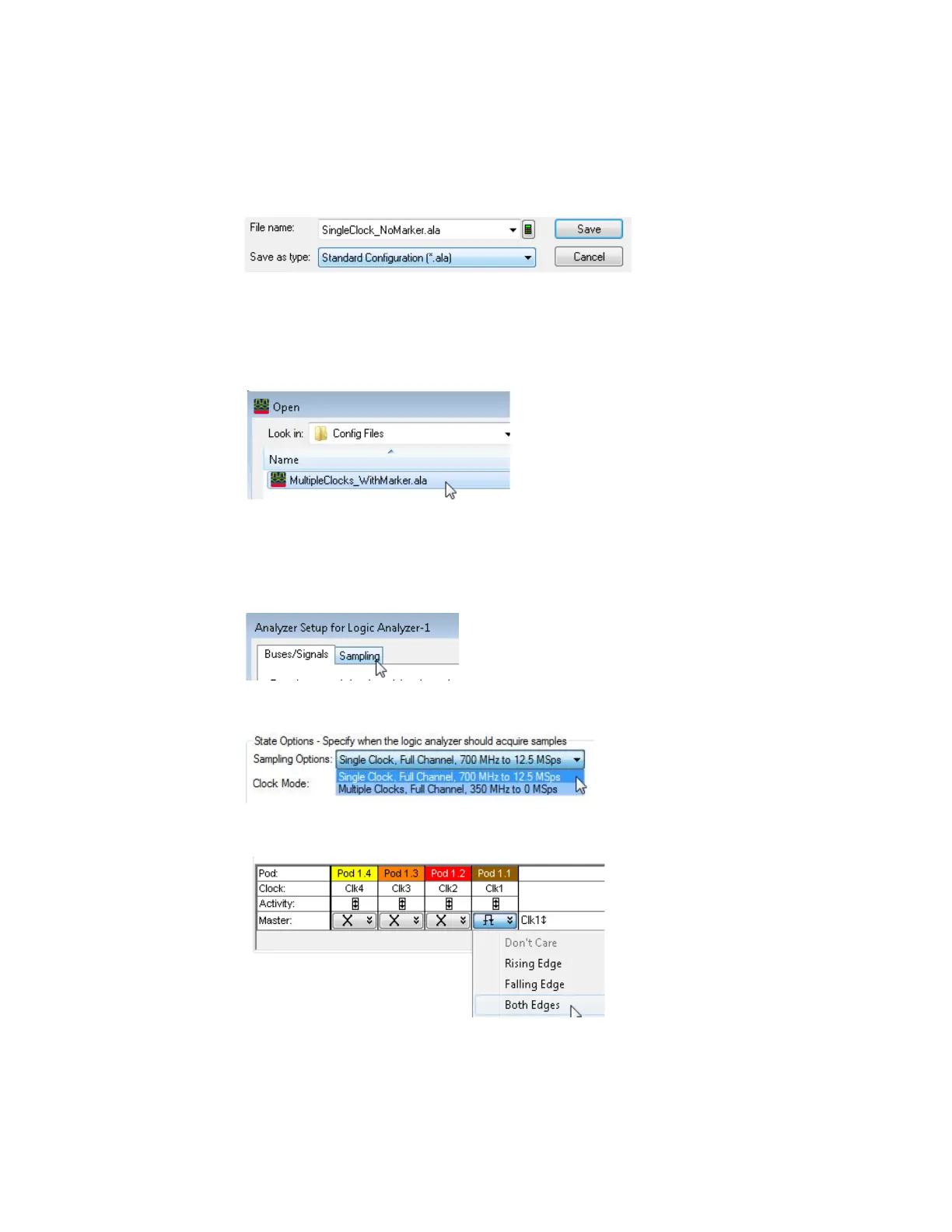

8In the Save As dialog, type the file name SingleClock_NoMarker.ala. For file options, select Setup
Only. Then click Save.
Create Configuration File 4 - Single Clock with Marker
1 Start with the MultipleClocks_WithMarker configuration file. Select File and then Open. In the Open
dialog select the file then open. If asked about saving the current configuration, click No.
2 Ensure that there is a U4203A connected to Pods 1 and 2. If Pods 3 and 4 exist, connect a
U4203A to these pods. The Pod 1 leads should be connected to the generator as described
above.
3Open the Analyzer Setup Sampling tab.
4In the State Options section, change the Sampling options to Single Clock.
5 In the clock selection area, change the Pod 1 clock to Both Edges.
6 Close the dialog by clicking OK.
7 Save the configuration by selecting File then Save As ….
