Keysight 16860 Series Portable Logic Analyzer Service Guide 121
Removing, Replacing, or Returning 16860 Series Logic Analyzer Assemblies 6
Removing and Replacing the Duct
Prerequisites
Ensure that you have:
• completed the tasks listed in the “Before you Start topic.
• removed the cover using the procedure listed in “Removing and Replacing the Hard Drive,
Acquisition Bezel, and Cover" on page 109.
• removed the front panel using the procedure listed in “Removing and Replacing the Front
Panel" on page 112.
To remove and replace the duct of 16860 logic analyzer
1 Keep the chassis upside down on the bench.

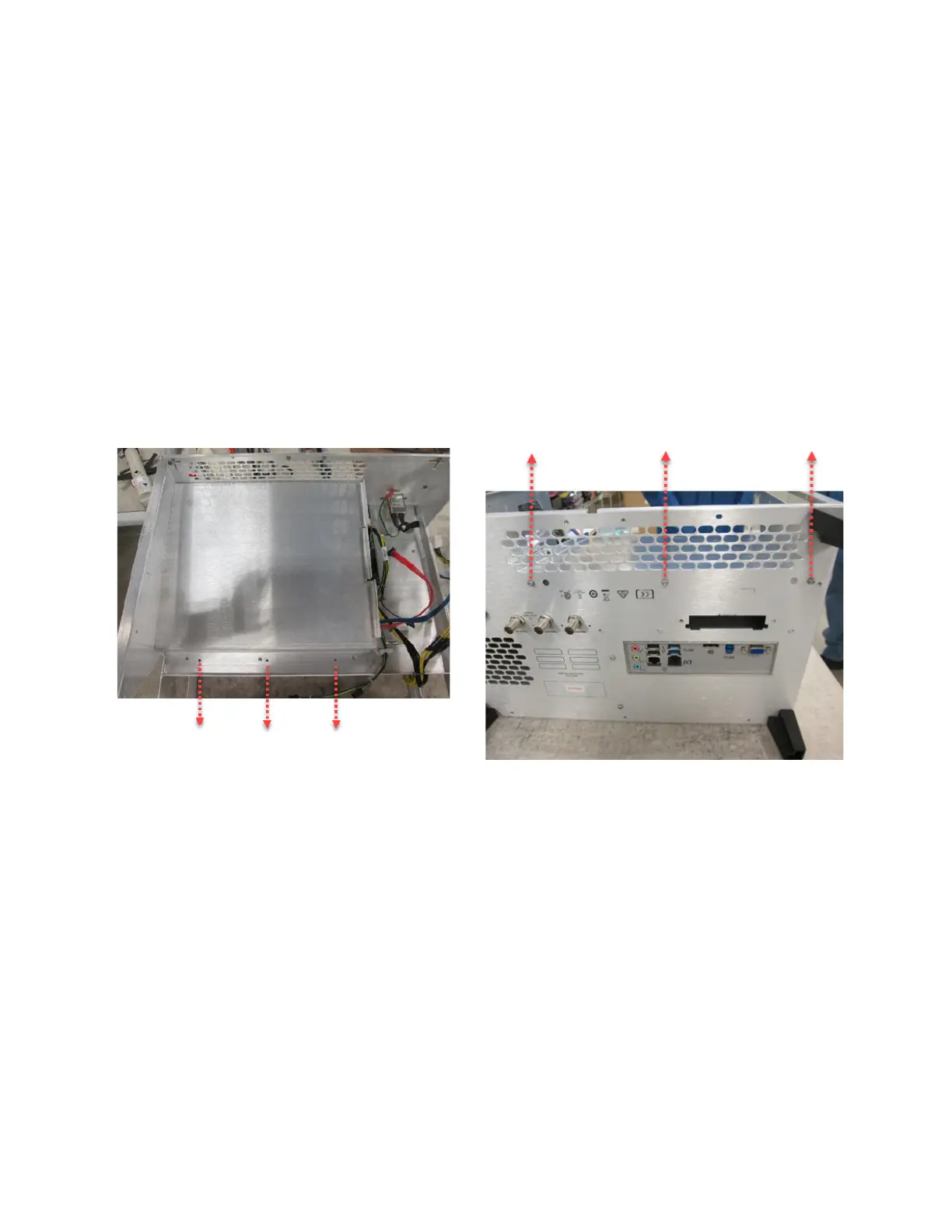

2 Remove the six screws on the side and rear of the chassis as indicated in the two photos below,
3 Slide the duct off two standoffs, and then lift it out to remove it.
