Keysight 16860 Series Portable Logic Analyzer Service Guide 125
Removing, Replacing, or Returning 16860 Series Logic Analyzer Assemblies 6

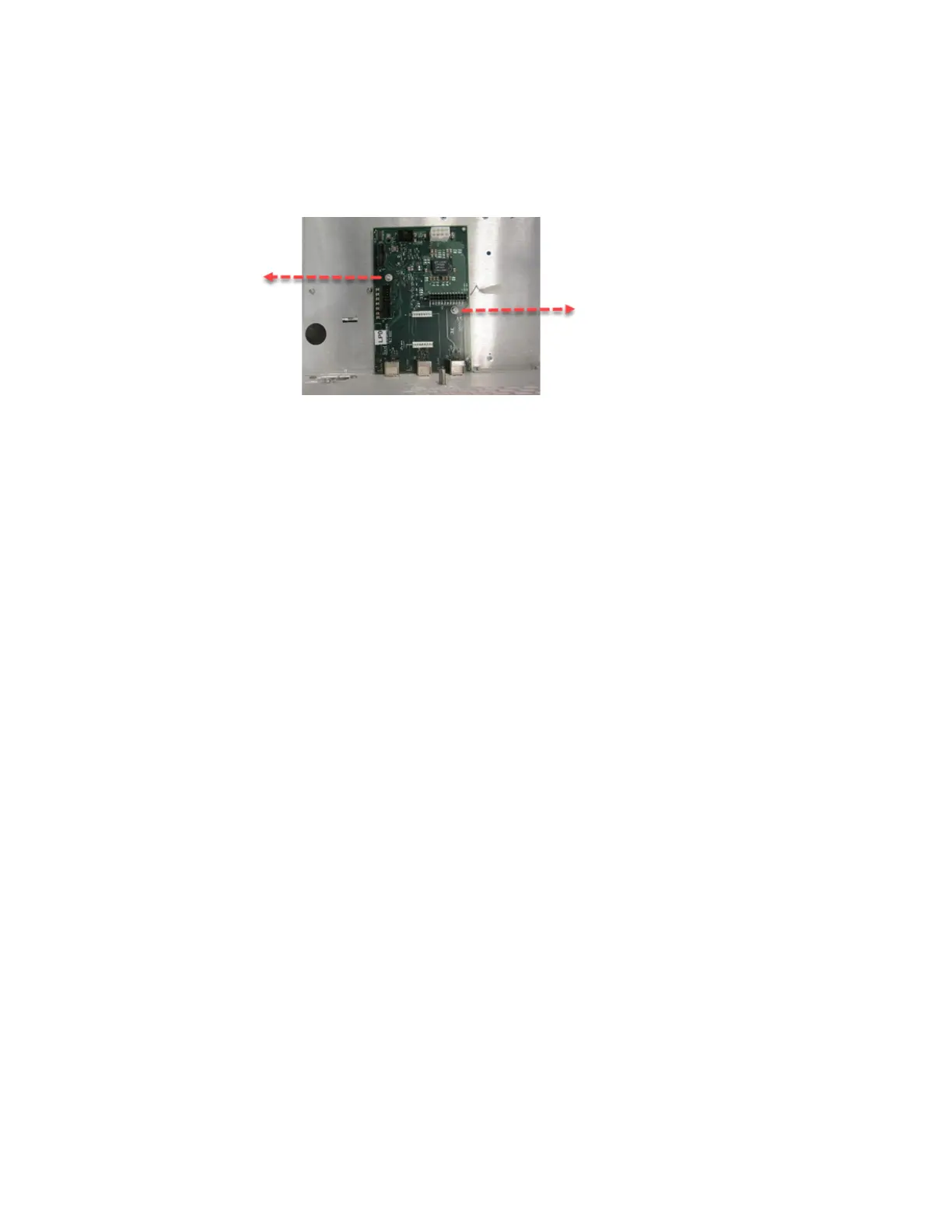

3 Remove the FIB board by removing the two screws (displayed below) that secure the FIB board to
the rear panel. Use a Torx T10 screwdriver.
4 Slide the FIB board slightly forward, lift slightly, then slide it forward and out.
5 Reverse this procedure to install the FIB board.
