5 Troubleshooting
98 Keysight 16860 Series Portable Logic Analyzers Service Guide

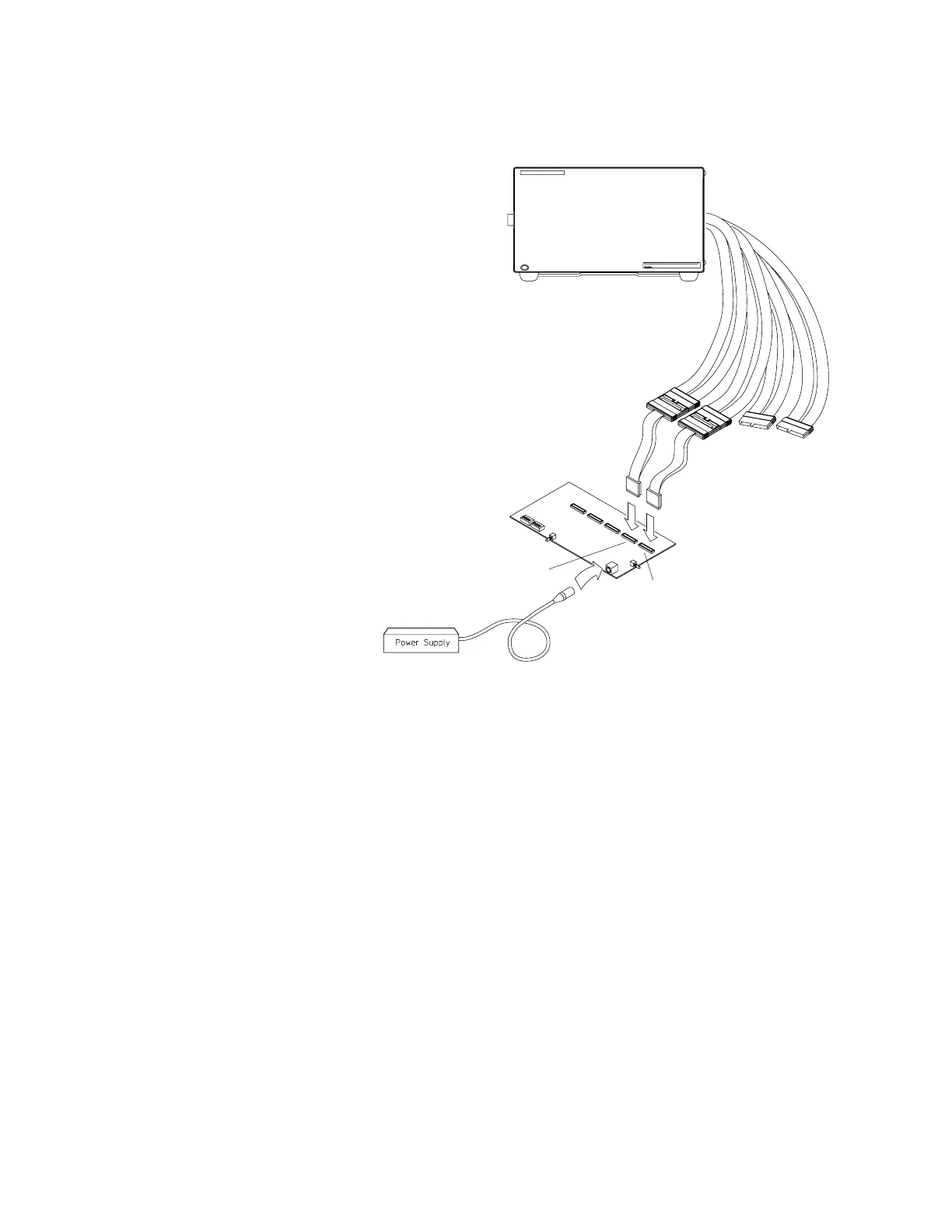

2 Set up the stimulus board
a Configure the oscillator select switch S1 according to the following settings:
• S1 0 (Off).
• S2 1 (On).
• S3 0 (Off).
• Int.
b Configure the data mode switch S4 according to the following settings:
• Even.
• Count.
c Press the Resynch VCO button, then the Counter RST (Counter Reset) button.
3In the Keysight Logic and Protocol Analyzer application, choose File→New. This puts the logic
analysis system into its initial state.
Pod 1
Pod 2
Pod 4
connector
Pod 5
connector
