P/N 06-237058-001 1-23 February 2012
1-14.2.2 REMOTE DISPLAY CONTROL MODULE (RDCM)
The Remote Display Control Module (RDCM) is a separate unit which is housed in the Remote
Enclosure. The RDCM permits system events to be displayed, and operator intervention to be
accomplished, from more than one location in a facility. The RDCM is a duplicate of the ARIES
NETLink’s keypad/display and allows full operator intervention and system control. The RDCM
includes a protected LCD display, keypad, buzzer, five system status LEDs and four user-
programmable “soft” keys (used to invoke preprogrammed system operations). The unit interfaces
with the Main Controller Board via an RS485 communications bus. A synchronization signal output
allows expansion of up to 15 RDCM units.
Refer to Section 1-8 for detailed information on the features of the keypad/display.

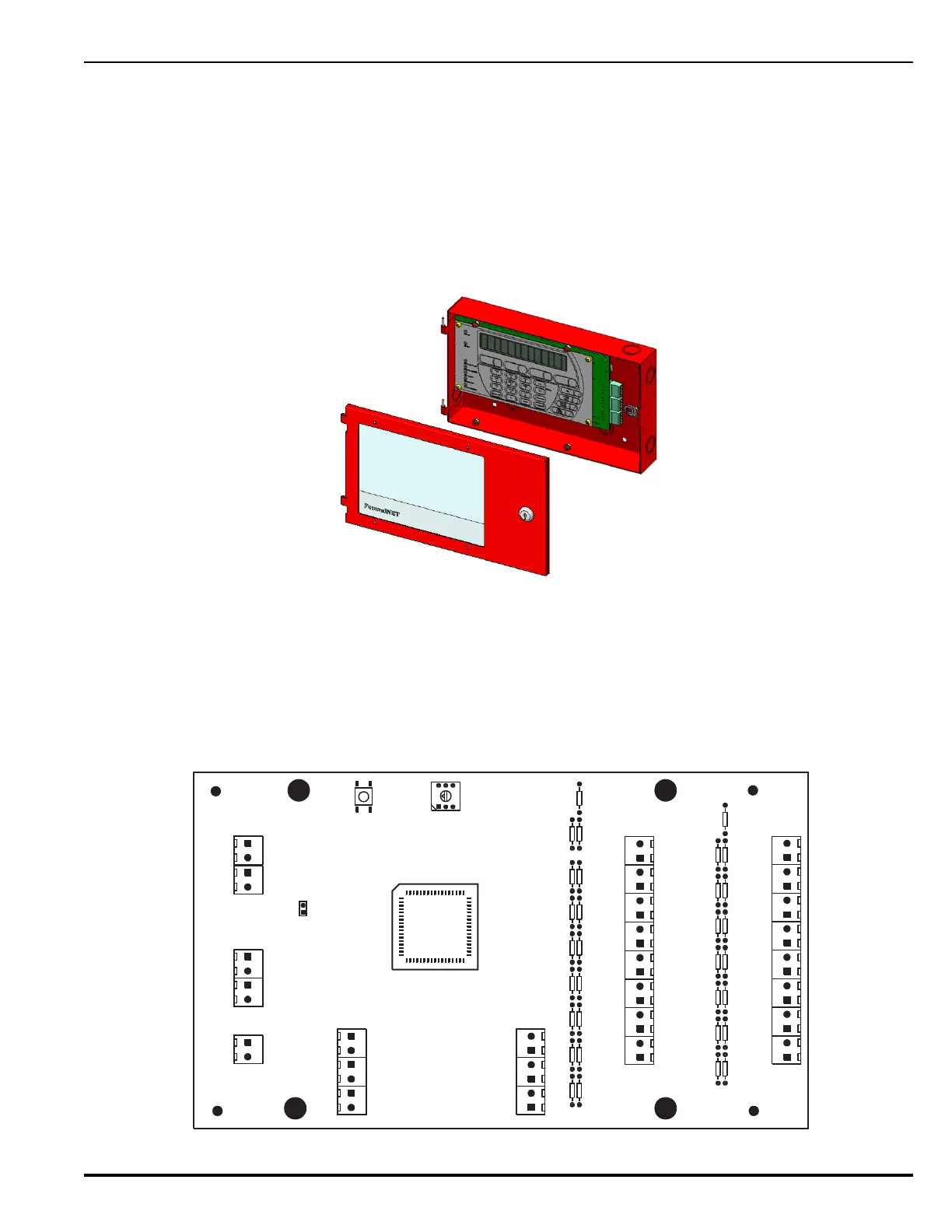

Figure 1-13. Remote Display Control Module (RDCM)
1-14.2.3 ATM SERIES DRIVER MODULES
The ATM Series Driver Modules support the use of third-party graphical annunciators and large
numbers of auxiliary relays with the ARIES NETLink. Refer to Figure 1-14 below for an outline of
the ATM Series Driver Module.
Figure 1-14. ATM Series Driver Module
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Lamp Test
Com
Ack
Reset
Silence
Drill
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
LK19
LK21
LK18
LK20
LK23
LK22
LK25 LK24
LK27 LK26
LK29 LK28
LK31 LK30
LK32
LK17
LK15LK16
LK13LK14
LK11LK12
LK10
LK8
LK6
LK4
LK2
LK9
LK7
LK5
LK3
LK1
Trouble
Sup.
Sil. Out
Pre Alm
Alarm
Pwr On
A
B
+24 V
Com
PS Flt
W1
Out B
Out A
In B
In A
S2 S1
ATM-L/R
Earth Gnd
