Kidde Fire Systems ARIES NETLink User Manual

Installation
P/N 06-237058-001 2-11 February 2012

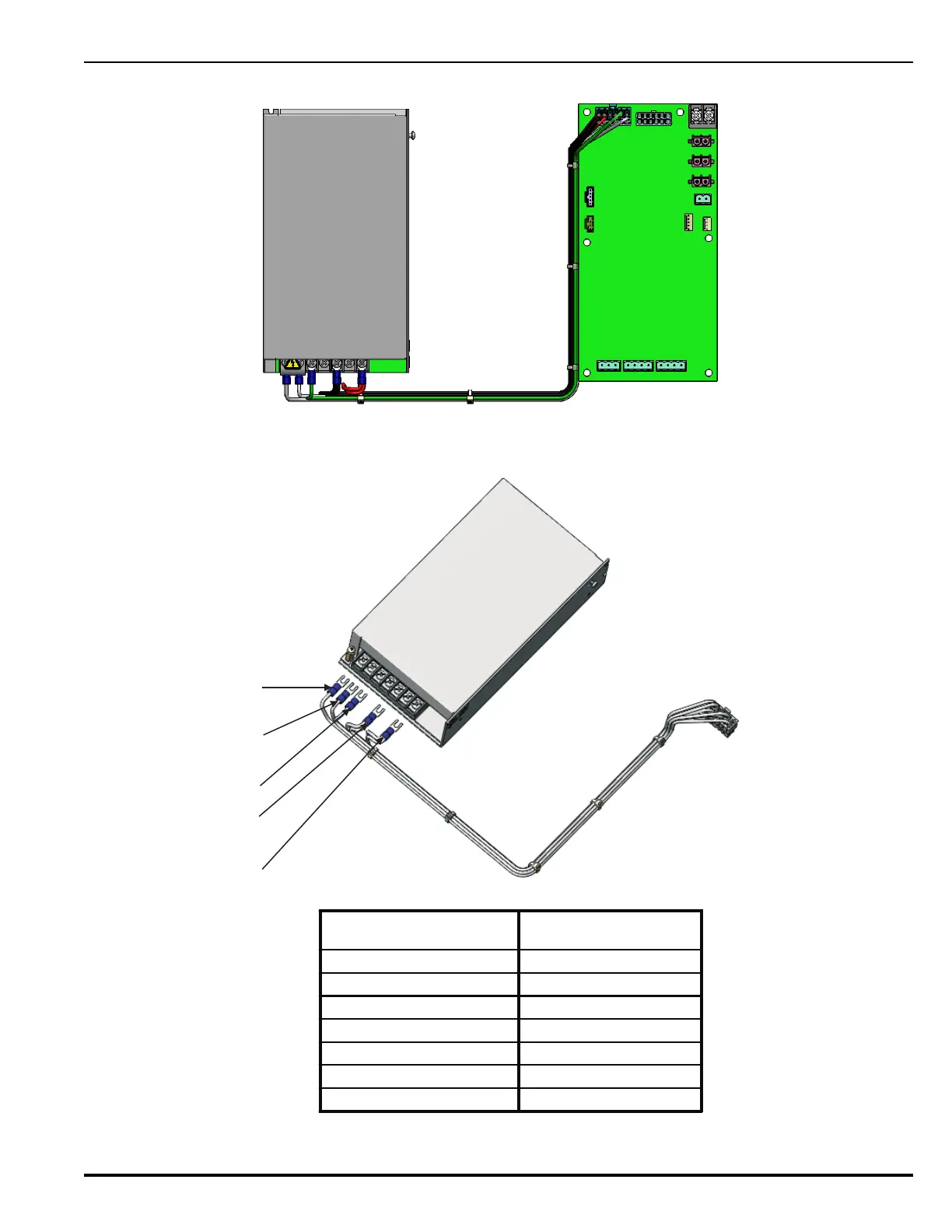

Figure 2-7. Connecting Power Supply Wiring Harness to PMU Board
Figure 2-8. Power Supply Wiring Harness Connections
1.
2.
3.
4.
5.
Colored Harness Wire to Attach
Terminal on Power Supply
(fromLefttoRight)
1. White and Black wire 1 (Line)
2. All-White wire 2 (Neutral)
3. Green wire 3 (Ground)
No connection 4
4. Double-Black wire 5 (24 Vdc Negative Return)
No connection 6
5. Double-Red wire 7 (24 Vdc Positive Return)
