Kidde FX-64

Chapter 1: Installation and wiring
32 P/N 3102352-EN • REV 005 • ISS 28DEC18

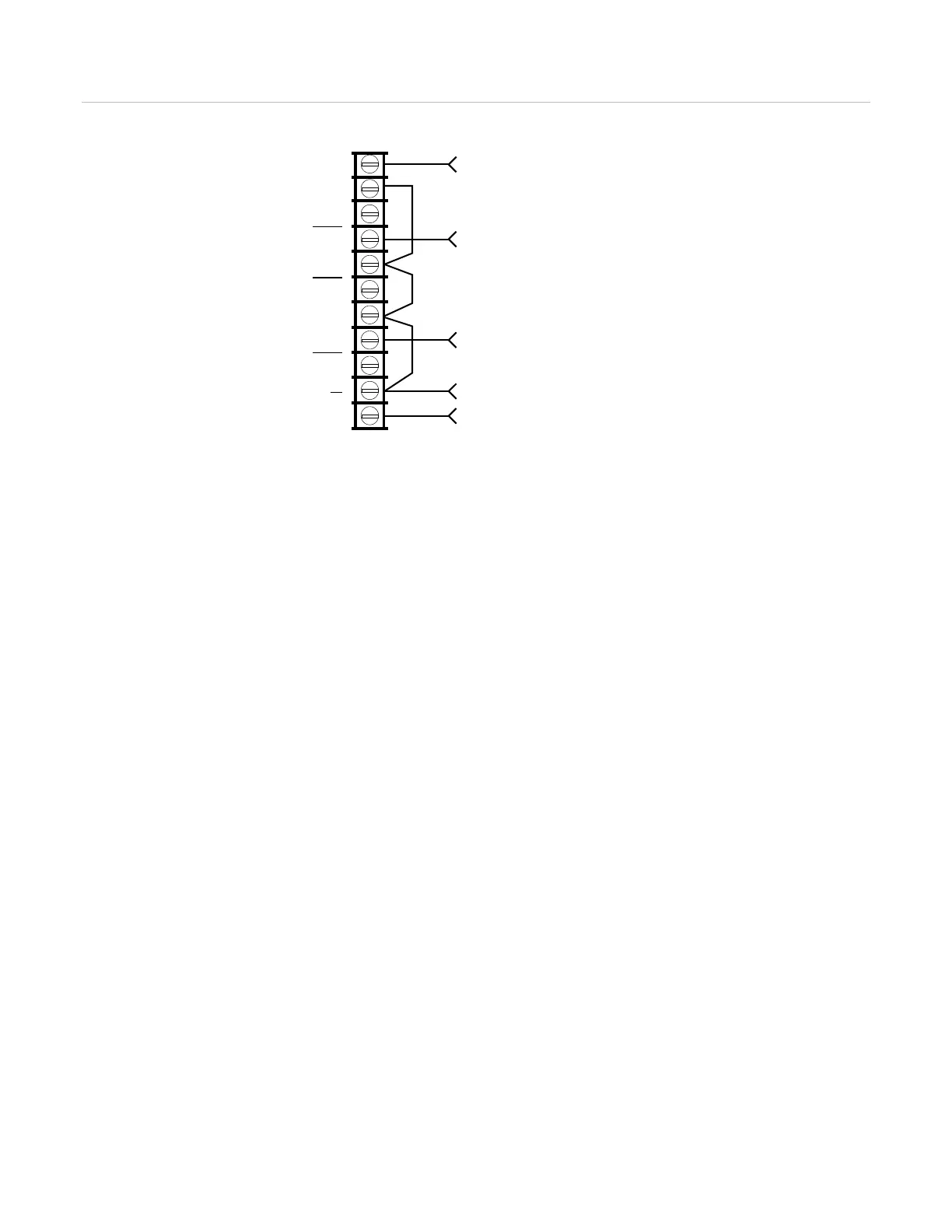

Figure 43: Alarm, supervisory, and trouble transmitted on separate circuits
(1) Control panel TB3
(
2) From TRBL on RPM (yellow wire)
(3) From SUPV on RPM (orange wire)
(4) From ALRM on RPM (brown wire)
(5) From COM on RPM (black wire)
(6) From +24 on RPM (red wire)
Note: JP1 on the RPM must be IN.
From ALRM on RPM (brown wire)
From TRBL on RPM (yellow wire)
From COM on RPM (black wire)
From +24 on RPM (red wire)
From SUPV on RPM (orange wire)
Control panel
TB3
TRBL
C
NC
SUP
NC
ALM
24VOUT
+
NO
C
NO
+
