Analog output types are current and voltage. The output impedance in the signal range is in the
on or off state; the state is specified by the manufacturer.
The analog output has a maximum error at 25 °C ± % of full scale, with a temperature coefficient
± % of full scale/K. The maximum error over the full temperature range is ± % of the full scale.
The digital resolution is measured in number of bits.
The data format returned from the application program is in binary, Binary Coded Decimal (BCD),
and so on. The value of the data is in the Least Significant Bit (LSB).
Table 26: Analog outputs in current mode
Analog outputs Min Typical Max Unit Note
Current 0 10 mA
Resistance 760 ohm
Resolution 13 Bits
Table 27: Analog outputs in voltage mode
Analog outputs Min Typical Max Unit Note
Voltage 0 10 V
Current 29 mA
Resolution 13 Bits
The terminal connections belong to the GENERAL PURPOSE terminal group.
Table 28: Analog output general purpose terminal connections
Label Purpose
AIO_n (n=[0-7] Terminal points for analog output.
0V 0 V input to supply the analog I/Os.

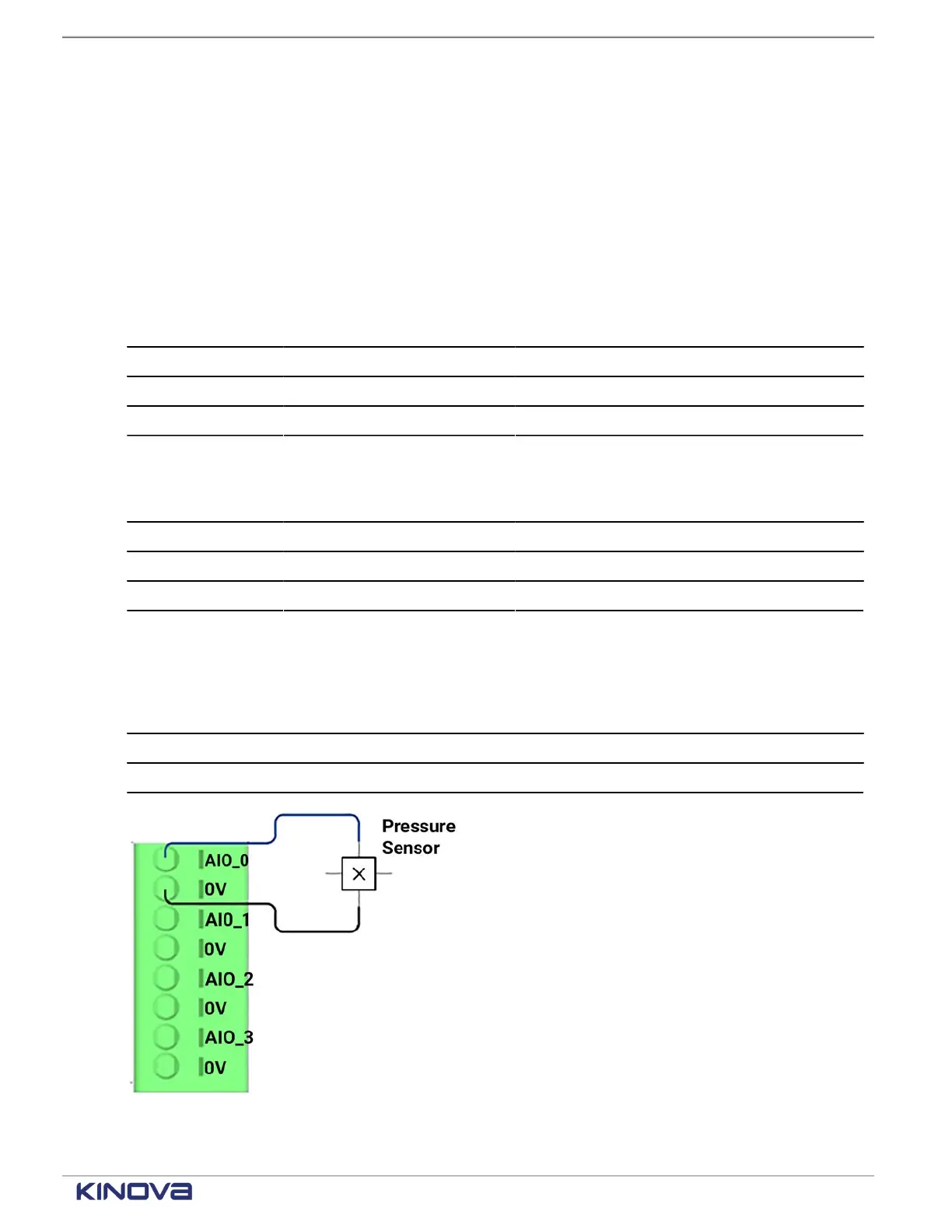

Figure 35: Analog terminal connections
