H11O4D2A

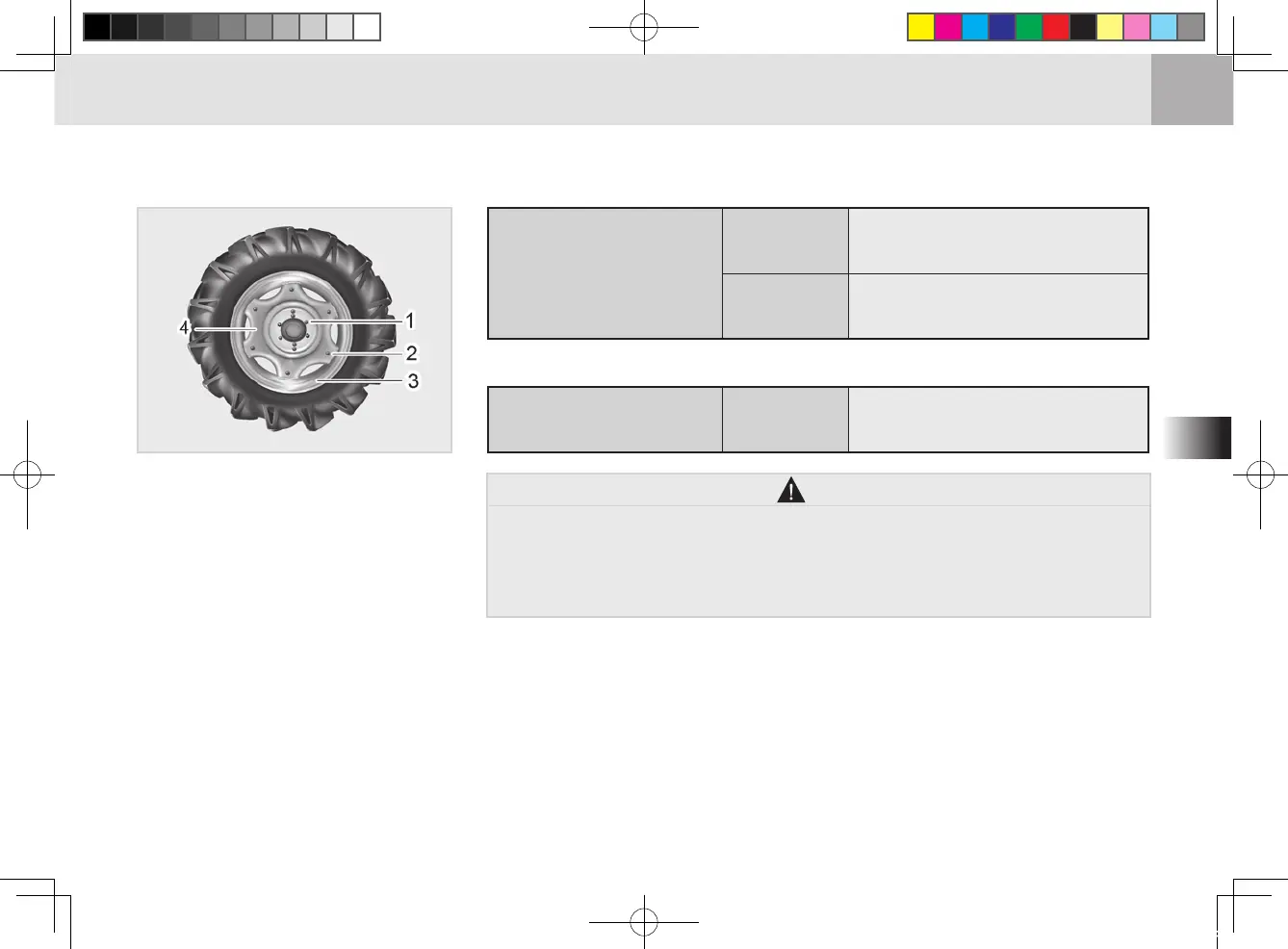

(1) Wheel Nut (2) Rim Bolt
(3) Rim (4) Disc
The front and rear axle tread width
are adjustable by changing the in-
stallation of the tire (together with
rim) to the disk, to suit the type or
condition of work. Ref to “TREAD” in
prior page.
Tightening torque of wheel
bolt and nut
Front
196.1~225.6 N·m
20~23 kgf·m
144.7~166.3 lb·ft
Rear
274.6~318.7 N·m
28~32.5 kgf·m
202.5~235.1 lb·ft
WHEEL TORQUE AND DIRECTION
FRONT/REAR WHEEL INSTALLATION PATTERN
Use tires approved by KIOTI only.
Assemble the tire as shown in the gure.
Contact your local KIOTI Dealer if it is necessary to change the tire
specication or installation method.
WARNING
FRONT AND REAR WHEEL BOLT AND NUT TORQUE
RIM BOLT AND NUT TORQUE
Tightening torque of rim bolt
and nut
Front & Rear
259.9~304 N·m
26.5~31 kgf·m
191.7~224.2 lb·ft
